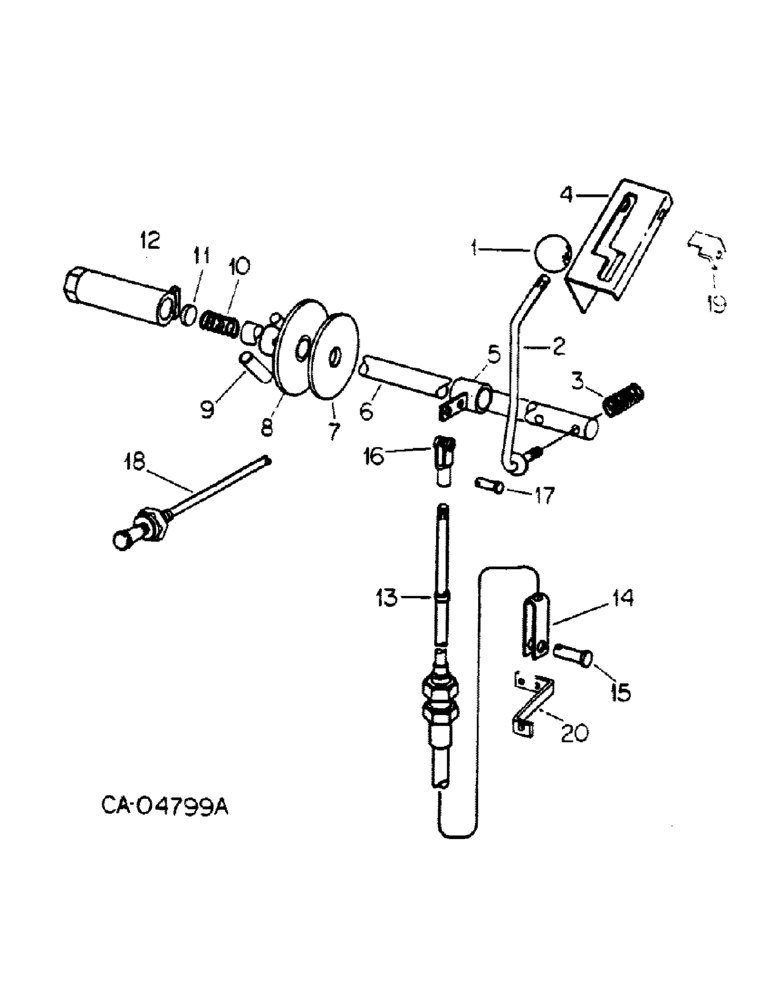

Запчасти Case IH 4386 (12-08) - POWER, ENGINE SPEED CONTROLS, 4386 TRACTOR Power

1

69427C1

KNOB

throttle control, Serial Range: -2500

1шт.

1

397931R2

GRIP

KNOB, throttle control, Start Serial: 2501

1шт.

1

397931R2GV

SPRING

Value, Knob

1шт.

1250289C1

FASTENER

throttle knob

1шт.

2

118958C1

HANDLE

ROD ASSY, throttle - handle

1шт.

3

69425C1

SPRING

throttle handle

1шт.

496-21047

WASHER

15/32 x 59/64 x .051

1шт.

231-4617

LOCK NUT,7/16"-20, GB

NUT, 7/16-20 cad lock hex

1шт.

4

127548C1

SUPPORT

throttle - guide

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 hex-hd cap

3шт.

561277R1

SPACER,5/8" Tube x 1/2"

.407 x .625 x .500

3шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

3шт.

5

127555C2

HUB ASSY.

HUB ASSY, throttle control

1шт.

77730C1

SET SCREW

SCREW, 1/4-20 x .375 w/nylon patch

1шт.

6

127698C2

PIN

throttle - shaft

1шт.

7

69424C1

LARGE PLATE

PLATE, throttle friction

1шт.

8

114205C1

LARGE PLATE

PLATE ASSY, friction

1шт.

9

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

1шт.

10

69426C1

SPRING

throttle friction

1шт.

11

114200C1

PUNCH

DISC, spring

1шт.

12

114203C1

BUSHING

ASSY, throttle shaft

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

1258471C1

BOLT,Hex, 5/8" - 11 x 2 1/2", Full Thd

BOLT, 5/8-11 unc-2A

1шт.

119004C1

BOLT

U

1шт.

446363

WASHER,5/16"

.375 x .875 x .064

2шт.

120376

NUT,5/16"-18, G5

2шт.

129474C1

WASHER

throttle handle

1шт.

13

127579C1

CABLE PULLING GRIP

CABLE ASSY, throttle

1шт.

14

132565C1

FORK

CLEVIS ASSY, throttle, Replaces 129225C1

1шт.

15

138083

PIN

1/4 clevis

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

16

110322

CLEVIS, 10-32 adj rod end

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

17

138082

CLEVIS PIN,3/16" x .580"

PIN, 3/16 x .580 clevis

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

18

116679C1

CABLE

NOT USED THIS APPLICATION

1шт.

19

127580C1

STOP

ASSY, adj throttle

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

20

129218C1

SUPPORT

ASSY, throttle cable

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8-16 x 3/4 hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.
