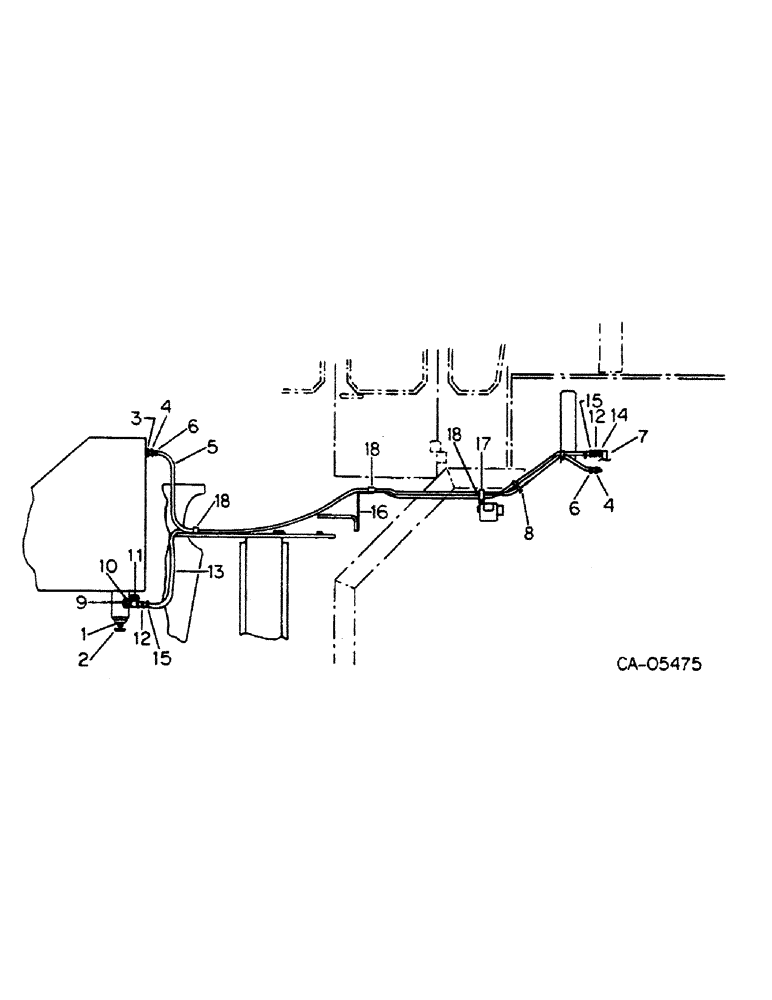

Запчасти Case IH 4386 (12-06) - POWER, FUEL PIPES AND CONNECTIONS, 4386 TRACTORS Power

1

24180R1

ADAPTER,1 1/2" NPT Male x 1/4" NPT Fem

1-1/2-1/4 cad reducing pipe

1шт.

2

103647

VALVE

COCK, 1/4 drain

1шт.

3

444339

BUSHING

1/2-14 to 1/4-18 auto reducing

1шт.

4

70090C1

FITTING

ADAPTER, male pipe

2шт.

5

HOSE, 3/8 fuel return, Use 102 in. of 3/8 hose from bulk roll marked 706670C1

1шт.

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

6

444040

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

1/4-18 pln auto 90D pipe street

1шт.

7

105413

MUFFLER

ELBOW, 1/4 npt 90 deg pipe

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

TIE, hose

1шт.

9

444035

BUSHING

1/2 to 3/8 znp auto pipe or

1шт.

9

144046

REDUCER FITTING,1/2" NPT Male x 3/8" NPT Fem

ADAPTER, 1/2 to 3/8 pln out/h/hd pipe

1шт.

10

192067

LUBE NIPPLE

NIPPLE, 3/8 npt x 1.0

1шт.

11

110014C1

VALVE

3/8 shutoff gate

1шт.

12

545268R1

ADAPTER

3/8 male pipe

1шт.

13

HOSE, fuel supply, Use 103 inches of 1/2 inch hose from bulk roll 706671C1

1шт.

14

673828R1

ADAPTER, 1/4 npt to .50 ID hose

1шт.

15

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 hose

2шт.

16

116698C1

FUNNEL

BRACKET, fuel hose

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

110017C1

BRACKET

fuel line

1шт.

18

116862C1

CLAMP

double hose

3шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no. 10 x 1 znp p/hds mach

3шт.

25454R1

LOCK NUT,#10-24, G5

NUT, no. 10 cad p/t lock type 5

3шт.

120391

WASHER,#10

.219 x .500 x .036

3шт.
