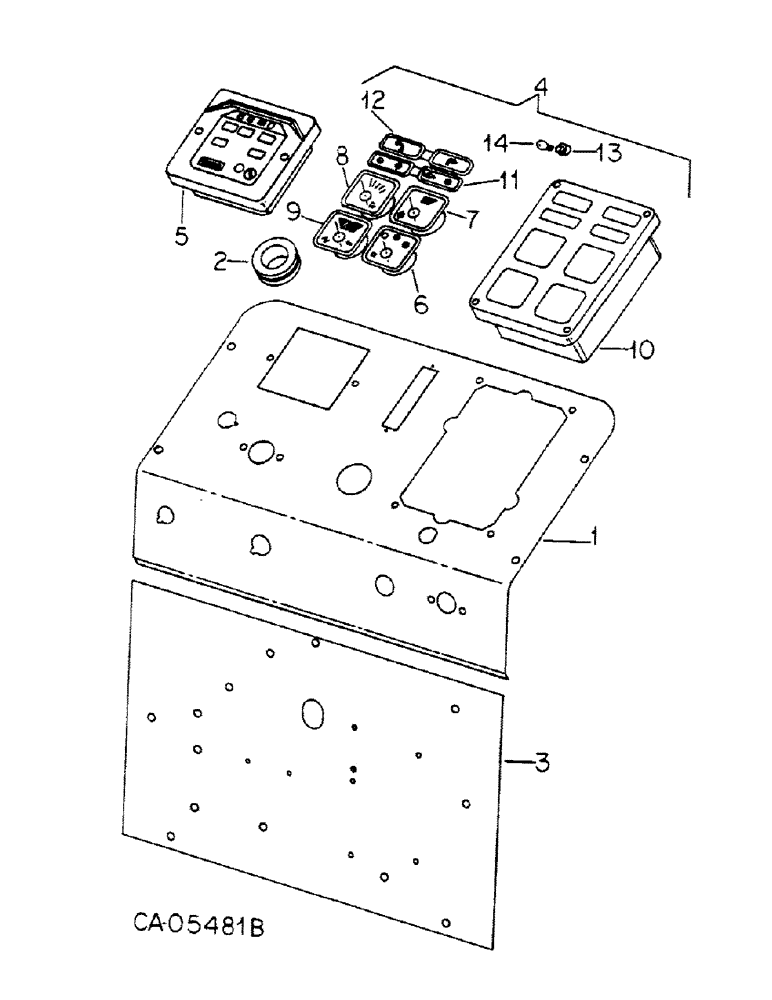

Запчасти Case IH 4386 (11-02) - INSTRUMENTS, PANEL AND GAUGE, 4386 TRACTOR Instruments

1

121884C1

PANEL

ASSY, instrument

1шт.

28059R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW, 1/4 x 3/4 phc h/whd tap, Serial Range: -1500

4шт.

1

130975C1

PANEL

ASSY, instrument, Start Serial: 1501

1шт.

110284

PLUG, engine shut-off cable

1шт.

2

69850C1

GROMMET

steering column

1шт.

3

121880C2

LARGE PLATE

PLATE, dash access - panel, Serial Range: -1500

1шт.

28059R1

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW, 1/4 x 3/4 phc h/whd tap

4шт.

3

131317C1

LARGE PLATE

PLATE, dash access, Start Serial: 1501

1шт.

4

121603C92

CLUSTER, INSTR.

CLUSTER ASSY, instrument

1шт.

103957C1

NUT

-J- shape spring

4шт.

27076R1

SCREW,Cross Oval Hd, #10 x 1"

10-16 x 1 dual hd-rec-phb type AB

4шт.

5

131169C1

CAGE

GAGE ASSY, digital tachometer - renewed - speedometer and hourmeter, Replaces R121871C1, Serial Range: -1500

1шт.

5

1265585C1

GAUGE

GAGE, digital data, Replaces 1252478C1, Also order product graphic 1265525C1, Start Serial: 1501

1шт.

5

1935076C1

REMAN-INSTR CLUSTER

4386 INTERNATIONAL 4WD DIESEL TRACTOR, GAGE, digital data, Start Serial: 1501 (1/76-12/81), Reman For New P/N 1265585C1

1шт.

5

1935077C1

CORE-CLUSTER, INSTR

Return Number

1шт.

1265525C1

DECAL

PRODUCT GRAPHIC, digital data gage

1шт.

131143C1

DECAL

PRODUCT GRAPHIC, digital data gage, Serial Range: -1500

1шт.

131115C1

VALVE

REGULATOR, gear ratio plug-in

1шт.

103957C1

NUT

J shape spring

2шт.

27076R1

SCREW,Cross Oval Hd, #10 x 1"

10-16 x 1 dual hd-rec-phd type AB

4шт.

6

121604C1

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

7

121605C2

ELECTRICAL GAUGE

GAUGE, temperature

1шт.

8

121606C1

ELECTRICAL GAUGE

GAUGE, oil pressure

1шт.

9

121607C1

METER

VOLTMETER

1шт.

10

121608C1

GASKET

BEZEL AND GASKET ASSY

1шт.

11

130811C1

LENS, warning lights

1шт.

12

121610C1

LENS

turn signal

1шт.

13

121611C1

SOCKET

ASSY, instrument

8шт.

14

20627R1

BULB,C2F, #194, 14V

lamp #194

8шт.
