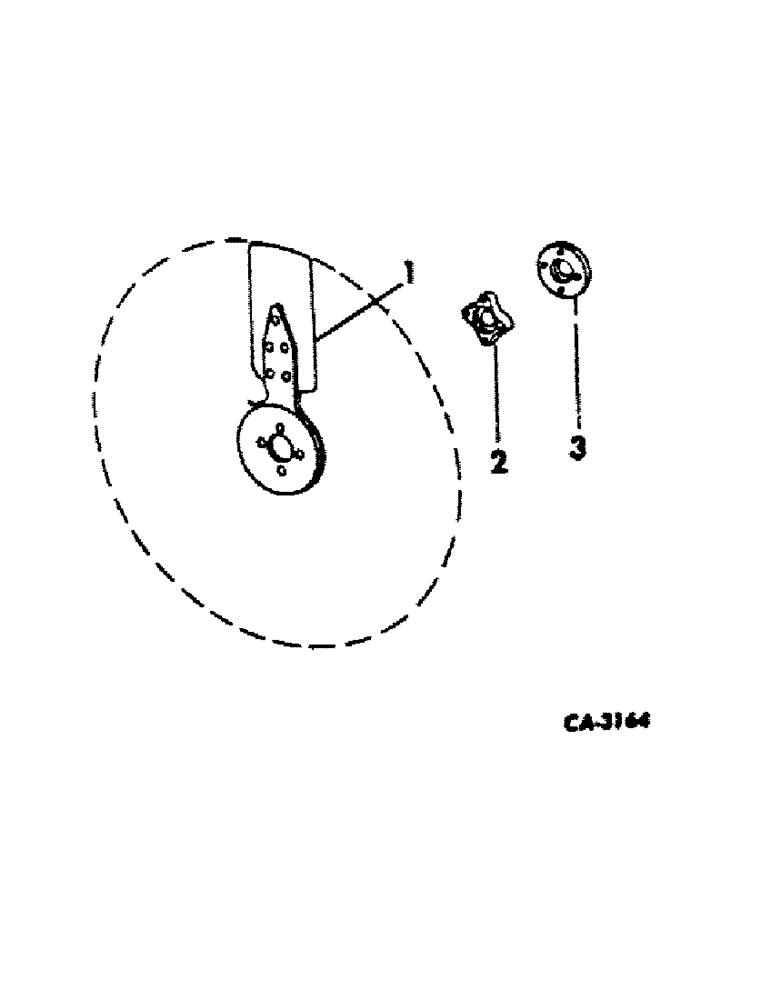

Запчасти Case IH 4386 (06-04) - COOLING, FAN BLADES Cooling

1

84701C1

FAN

BLADE ASSY, fan, 24" double spider, For all 4366 tractors, (replaces 67884C3)

1шт.

1

84701C1

FAN

BLADE ASSY, fan, 24" double spider, 4386 tractors (replaces 67884C3), Serial Range: -1500

1шт.

1

131197C1

FAN

BLADE ASSY, fan, 4386 tractors, Start Serial: 1501

1шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8-16 x 3-3/4 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

2

NOT USED IN THIS APPLICATION

1шт.

3

67885C1

SPACER

fan, For all 4366 tractors

1шт.

3

67885C1

SPACER

fan, 4386 tractor, Serial Range: -1500

1шт.

537072R91

SET OF BELTS

Double fan, For all 4366 tractors

1шт.

537072R91

SET OF BELTS

Double fan, 4386 tractors, Serial Range: -1500

1шт.

131201C91

BELT

SET, double fan, 4386 tractors, Start Serial: 1501

1шт.
