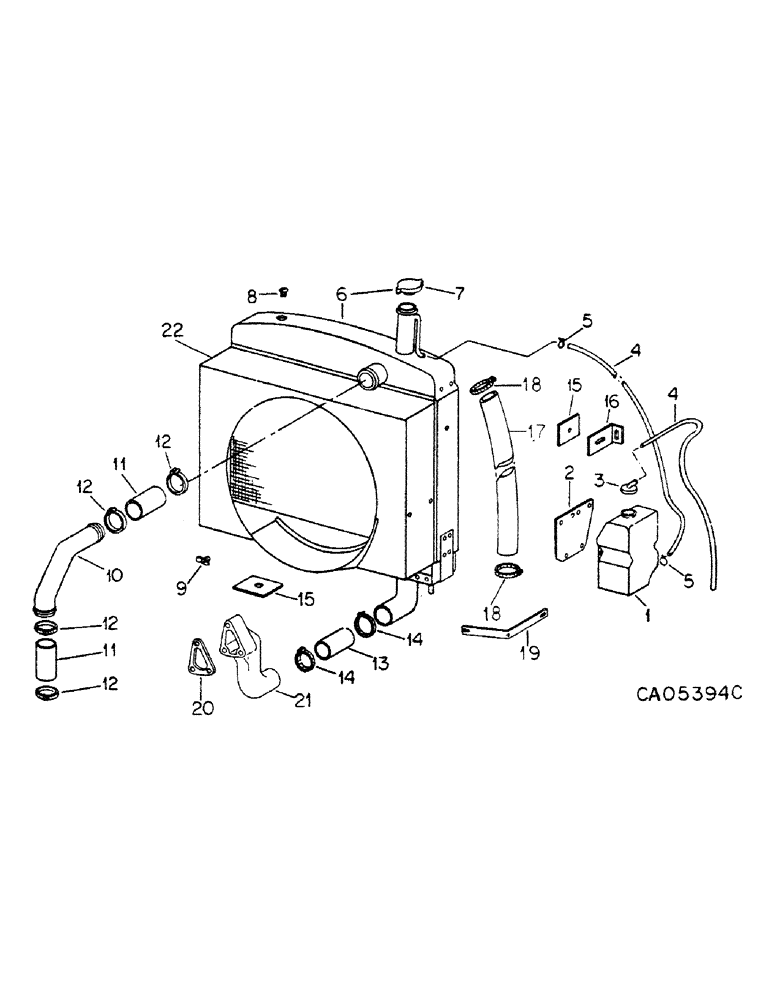

Запчасти Case IH 4386 (06-02) - COOLING, RADIATOR AND CONNECTIONS, 4386 TRACTOR Cooling

1

437703C1

TANK

reservoir

1шт.

2

127313C2

PLATE, tank reservoir mounting

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

120392

WASHER,1/4", SAE

1/4 x .60 x .051

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

3

437702C1

CAP

radiator coolant reservoir

1шт.

4

68694C3

RADIATOR HOSE,0.31" ID x 34.00"

Radiator to Reservoir 0.31" ID x 34.00"

2шт.

5

70152C1

HOSE CLAMP

CLAMP, hose

3шт.

6

131200C2

RADIATOR

W/PRESSURE CAP, Replaces 127484C1 by also ordering blade 131197C1 or

1шт.

6

146465C1

RADIATOR

1шт.

7

130704C1

CAP

radiator pressure

1шт.

444614

PLUG,Hex Hd, 1/8"-27, Brass

1/8 plt pipe

1шт.

8

NOT USED IN THIS APPLICATION

1шт.

9

103647

VALVE

1/4 npt radiator drain

1шт.

10

130709C1

TUBE,2.12" ID, 2.25" OD

radiator inlet, pipe

1шт.

11

HOSE, radiator inlet, Furnish 3.4 in. from a 36 in. length roll marked 407010R1

2шт.

12

27725R1

HOSE CLAMP,#36, 1.81/2.75 Type F Worm, W/liner

CLAMP, 2-5/8 hose

4шт.

13

HOSE, radiator outlet, Furnish 8.0 in. from a 36 in. length roll marked 664058C1

1шт.

14

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, hose

2шт.

15

114261C1

PAD

MOUNT, radiator bottom pad

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074

2шт.

16

129230C1

ANCHOR

SUPPORT, radiator, mount

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

17

HOSE, deaeration, Furnish 50.0 in. from a roll marked 364361C1

1шт.

18

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

Switch Mounting

2шт.

19

138736C1

SUPPORT

reservoir plate

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

20

673396C1

GASKET

water inlet elbow

1шт.

21

538939R1

ELBOW

water inlet - engine

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 pln type 5

3шт.

614201R1

VALVE

COCK, radiator drain

1шт.

22

1265441C2

SHROUD

fan

1шт.
