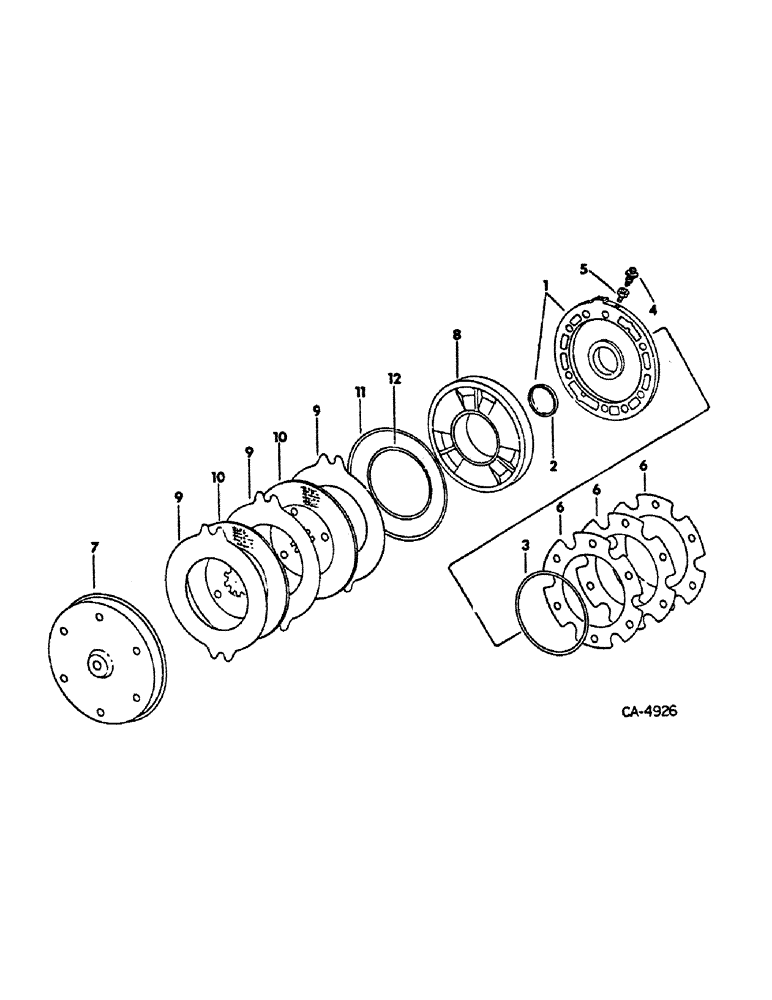

Запчасти Case IH 4386 (04-07) - BRAKES, MASTER BRAKES, 4386 TRACTORS WITH SERIAL NO. 1501 AND ABOVE (5.1) - BRAKES

1

104658C91

HOUSING

ASSY, brake piston

2шт.

2

104763C1

WASHER,56.39mm ID x 76.45mm OD x 0.69mm Thk

brake lub oil

2шт.

23896R1

DOWEL,5/8" x 3"

PIN, 5/8 x 3 dowel

4шт.

3

530789R1

O-RING,6.712" ID x 0.139" Width

O-RING, brake piston housing sealing

3шт.

4

82301R1

BLEEDER,3/8" - 24 x 117mm

brake bleed, or

2шт.

4

3068777R1

SCREW

brake bleed

2шт.

5

397338R1

CONNECTOR, ELEC

CONNECTOR, bleeder valve

2шт.

6

391816R1

SHIM

piston housing - .35 (Or as required)

2шт.

6

391817R1

SHIM

piston housing - .012 (Or as required)

4шт.

6

391818R1

SHIM

piston housing _ .007 (Or as required)

6шт.

6

391819R1

SHIM

piston housing - .004 (Or as required)

1шт.

6

391820R1

SHIM

piston housing - .003 (Or as required)

1шт.

7

104654C2

HOUSING

brake

2шт.

26487R1

BOLT,Locking, 5/8"-11 x 4 1/2", G8

5/8 x 4-1/2 phc p/t type 8

8шт.

271567

BRACKET,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3.25 hex-hd cap

4шт.

8

104656C1

PISTON ASSY.

PISTON, brake

2шт.

9

NSS

NOT SOLD SEPARAT

PLATE, brake separator, Not serviced separately order service package 1250030C91

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE, brake friction, Not serviced separately order service package 1250030C91

1шт.

11

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 x 1/8 , piston outer

2шт.

12

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

3-1/4 x 3-1/8 x 1/8, piston inner

2шт.

1250030C91

KIT

PACKAGE, power brake friction plates, separators and o-ring seal service, two required per tractor, Also furnish a tube of loctite, 474517C2, Consists of

1шт.

NSS

NOT SOLD SEPARAT

FRICTION PLATES

6шт.

NSS

NOT SOLD SEPARAT

SEPARATOR PLATES

7шт.

530789R1

O-RING,6.712" ID x 0.139" Width

O-RING

1шт.

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

1шт.

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

130979C1

SWITCH

1шт.

121814C1

RETAINER

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

399470R1

BOOT

INSULATOR

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL

1шт.
