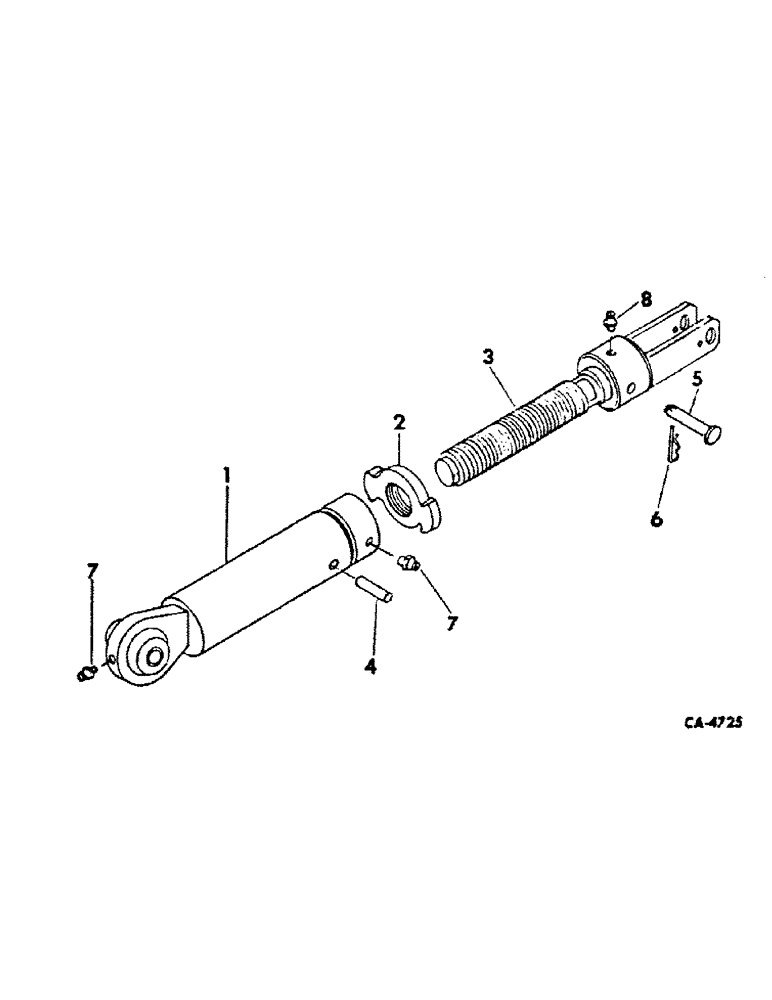

Запчасти Case IH 4386 (09-10) - FRAME, LIFT LINK ASSY (12) - FRAME

114343C91

ARM ASSY.

LINK ASSY, lift

1шт.

1

114344C1

ARM

LINK ASSY, upper

1шт.

2

114345C1

LOCK NUT

NUT, adjusting lock

1шт.

3

114346C1

ARM ASSY.

LINK ASSY, bottom

1шт.

4

19479R1

PIN,1/4" x 2", Coiled

adj rod 1/4" x 2", Coiled

1шт.

5

114347C1

PIN

ASSY, lift link float

1шт.

6

71398C1

PIN

RETAINER, float pin

1шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8 ptf x/short lub

2шт.

1017956R1

PLUG,Cap, .610" OD

Adj arm tube Cap, .610" OD

2шт.

8

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive lub

1шт.
