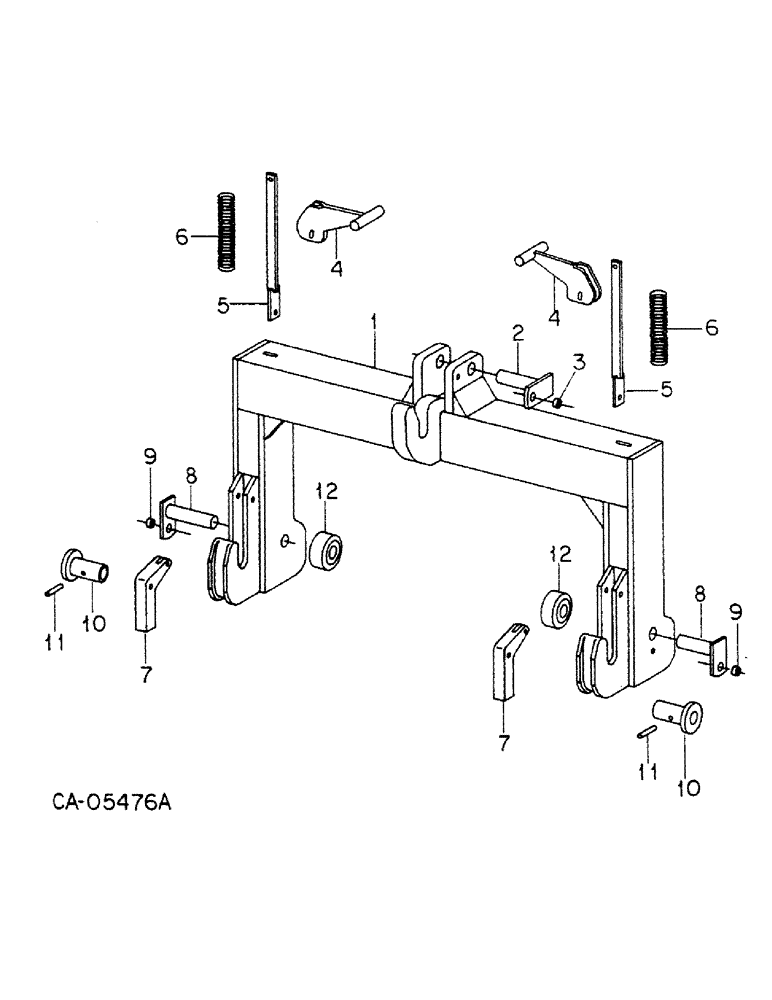

Запчасти Case IH 4386 (09-09) - FRAME, THREE POINT HITCH QUICK COUPLER ATTACHMENT (12) - FRAME

1255077C91

COUPLING

COUPLER ASSY, category III quick, replaces 64726C91

1шт.

1

FRAME ASSY, coupler, Not serviced separately order coupler assy 1255077C91

1шт.

2

64721C1

LARGE PIN

PIN ASSY, upper link

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074 znd

1шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2-13 x 1-1/4 pt hex-hd cap

1шт.

3

64714C1

BUSHING

pin retainer

1шт.

4

64715C1

HANDLE

ASSY, latch

2шт.

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN, 5/16 x 1-1/16 clevis ht

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

5

64723C1

BAR

spring, Used on coupler assy 64726C91

2шт.

5

1266790C1

BAR

Used on coupler 1255077C91

1шт.

6

64717C1

SPRING

latch

2шт.

7

64724C1

LUG

lock, latch, Used on coupler assy 64726C91

2шт.

7

1266792C1

LUG

Used on coupler 1255077C91

1шт.

19790R1

PIN,5/16" x 1 1/4", Coiled

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.

8

64722R1

PIN ASSY, lower link

2шт.

120396

WASHER

.531 x 1.062 x .074 znd

2шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2-13 x 1-1/4 pt hex-hd cap

2шт.

9

64714C1

BUSHING

pin retainer

2шт.

10

401232R1

ADAPTER

implement lower hitch pin

2шт.

11

21926R1

PIN,7/16" x 1 3/8", Coiled

2шт.

12

401233R1

COLLAR

BUSHING, implement lower hitch pin

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.
