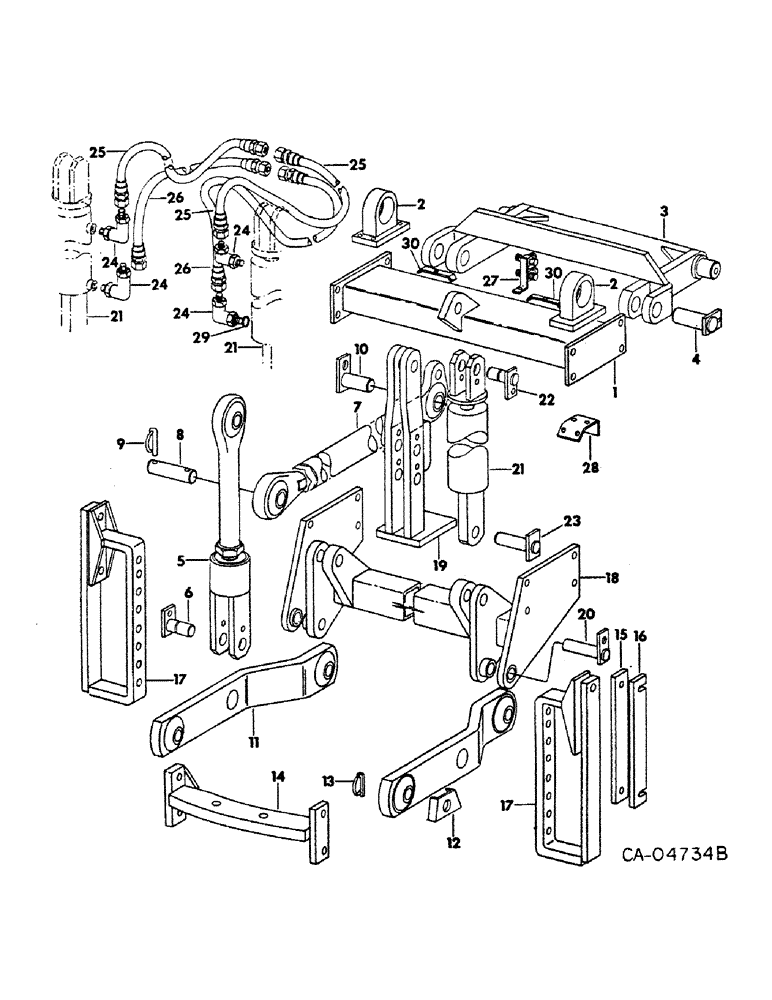

Запчасти Case IH 4386 (09-07) - FRAME, THREE POINT HITCH ATTACHMENT (12) - FRAME

1

118840C1

TUBE

SUPPORT ASSY, rockshaft base

1шт.

24681R1

SCREW

BOLT, 3/4 x 2-1/4 type 8

8шт.

274640

LOCK NUT,3/4"-16, GC

NUT, 3/4-16 znd hex., type 8

8шт.

2

118841C91

BLOCK

BEARING ASSY W/BUSHING & FITTING

1шт.

469805R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 znd hex-hd cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

619773C91

BEARING

BUSHING, 2-1/4 self-aligning ball

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8 ptf x/short lub

1шт.

3

114340C91

ROCKSHAFT

RODSHAFT ASSY W/BUSHING, 114341C1

1шт.

114341C1

RACE

BUSHING, rockshaft assy

2шт.

4

114342C1

PIN

ASSY, lift link upper

2шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

67872C1

WASHER

5/8 hardened flat

2шт.

5

114343C91

ARM ASSY.

LINK ASSY, lift, Refer to lift link this group

2шт.

6

114348C91

PIN ASSY.

PIN ASSY, lift link lower

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

67872C1

WASHER

5/8 hardened flat

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

2шт.

7

114349C91

LINK

ASSY, center, Refer to center link this group

1шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

SCREW, 3/4-10 x 5 znd hex-hd cap , Course threads

1шт.

280954

NUT,3/4"-10, G5

1шт.

8

392211R2

PIN

upper link, implement end

1шт.

9

392181R91

PIN

ASSY, upper link

2шт.

10

114352C1

PIN

ASSY, upper link ret

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

1шт.

67872C1

WASHER

5/8 hardened flat

1шт.

11

114353C91

LINK

ASSY, lower

2шт.

114341C1

RACE

BUSHING, lift link pin

2шт.

12

404788R1

SHIELD

linch pin

2шт.

13

392181R91

PIN

ASSY, lower link

2шт.

14

114354C1

HANGER

BRACKET ASSY, drawbar rear

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

SCREW, 3/4-10 x 2 znd hex-hd cap, type 8

4шт.

15

114355C1

LARGE PLATE

PLATE, lower link wear

2шт.

16

114356C1

SHIM

wear plate

6шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

495-11053

WASHER,1/2", SAE

1/2 flat znd

4шт.

17

114357C1

STRIP

BRACKET ASSY, lower link guide

2шт.

133092R1

BOLT,Hex, 3/4" - 16 x 3", Type 8

SCREW, 3/4-16 x 3 znd hex-hd cap, type 8

4шт.

274640

LOCK NUT,3/4"-16, GC

NUT, 3/4-16 znd hex. lock, type 8

4шт.

18

114358C1

BRACKET

ASSY, lower link mtg

1шт.

24681R1

SCREW

3/4-16 x 2-1/4 znd hex-hd cap, type 8

8шт.

274640

LOCK NUT,3/4"-16, GC

NUT, 3/4-16 znd hex. lock, type 8

1шт.

19

114361C1

ASSEMBLY

BRACKET ASSY, upper link mast

1шт.

28314R1

BOLT,Hex, 3/4" - 16 x 6", Gr 8

3/4 x 6 type 8

2шт.

274640

LOCK NUT,3/4"-16, GC

NUT, 3/4-16 hex. lock

2шт.

25969R1

BOLT (SPREADER)

SCREW, 1-14 x 4-1/2 znd hex-hd cap, type 8

1шт.

359798C1

LOCK NUT,1"-14, GC

NUT, 1-14 cdp hex. lock, type 8

1шт.

20

114362C1

AXLE PIN

PIN ASSY, lower link ret

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

67872C1

WASHER

5/8 hardened flat

2шт.

21

71800C92

CYLINDER

ASSY, hitch lift, Replaces 114363C91, For components see list of parts under detail of hitch lift cylinder in group 10

2шт.

22

114348C91

PIN ASSY.

PIN ASSY, hitch cyl upper

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

67872C1

WASHER

5/8 hardened flat

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

23

114364C1

PIN

ASSY, hitch cyl bottom

2шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

67872C1

WASHER

5/8 hardened flat

2шт.

24

671942R1

ELBOW

90 deg pipe adj str thd to 37 deg flare tube

4шт.

25

114365C1

HOSE ASSY, 1/2 I.D. 37 deg female swivel short

2шт.

26

114366C1

HOSE ASSY.

HOSE ASSY, 1/2 I.D. 37 deg female swivel long

2шт.

27

114367C1

TEE

ASSY, hitch cyl hose

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

495-11053

WASHER,1/2", SAE

1/2 flat znd

1шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock

1шт.

28

114368C1

BRACKET

female coupler

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

495-11053

WASHER,1/2", SAE

1/2 flat znd

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock

4шт.

29

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

4шт.

71399C92

KITS, hitch lift cylinder o-ring, Used with 114363C91 cylinder only

1шт.

30

146843C1

CLAMP, hose retainer

2шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

446363

WASHER,5/16"

.375 x .875 x .064

2шт.
