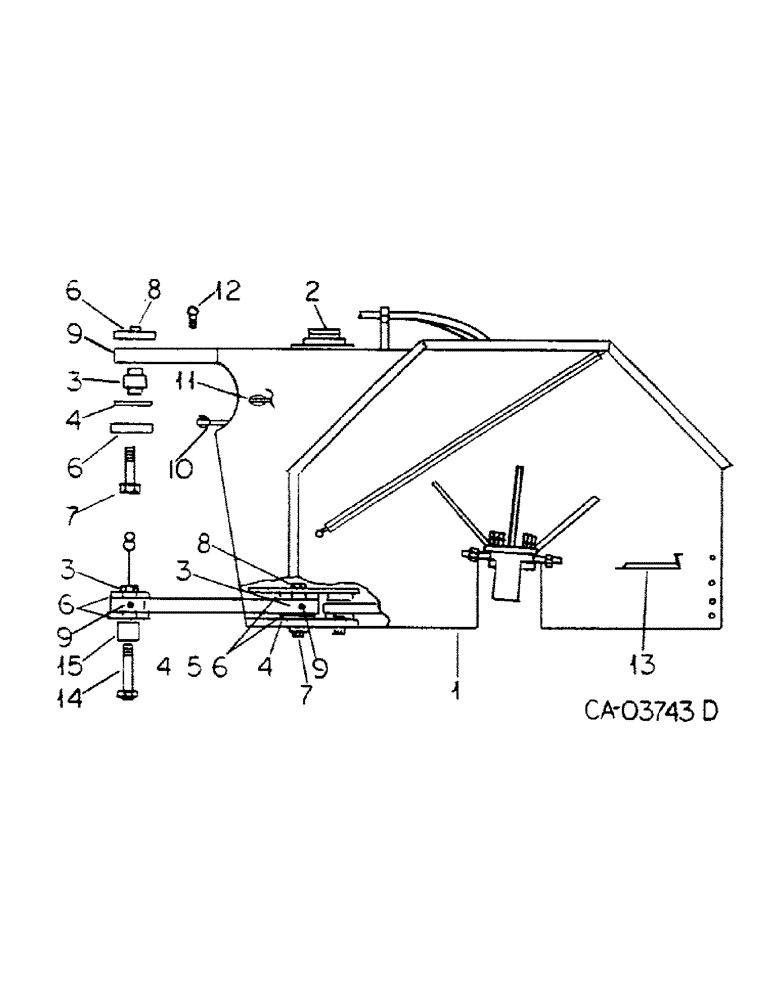

Запчасти Case IH 4386 (09-04) - FRAME, REAR FRAME (12) - FRAME

1

68566C91

FRAME ASSY

rear, 4366 tractors, Consists of

1шт.

NSS

NOT SOLD SEPARAT

FRAME

1шт.

68565C2

PLATE ASSY.

PLATE

2шт.

20670R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

type 8

6шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

12шт.

359793C1

NUT,3/4"-10, GC

6шт.

1

142082C91

FRAME ASSY, rear, 4386 tractors, Replaces 129062C4, Consists of

1шт.

NSS

NOT SOLD SEPARAT

FRAME

1шт.

364154R1

GASKET

1шт.

107663C1

ELECTRICAL GAUGE

SENDING UNIT

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

124506C1

DECAL

PRODUCT GRAPHIC, articulation pivot warning

2шт.

2

317654R91

PLUG

CAP ASSY, fuel, 4366 tractors, Replaces 70142C1

1шт.

2

224839C91

CAP

W/GASKET, fuel tank filler, Replaces 361910R91, 4386 tractors

1шт.

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

fuel filler cap

1шт.

224840C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

3

1268752C1

SPHERICAL BEARING

hinge and link, Replaces 68598C3 by also ordering plug, 444613

3шт.

4

68599C1

RETAINER

hinge and link brg

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

18шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

5

68600C1

LINK

rear frame center

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

68602C1

BOLT (SPREADER),6.50"

BOLT, hinge and link king pin

2шт.

8

68603C1

NUT

king pin bolt

3шт.

125735

SET SCREW,Hex Skt, 1/4"-20 x 3/8"

Cup point, King pin nut Hex Soc, 1/4"-20 x 3/8"

3шт.

9

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90D lub, Used w/68598C3, bearing

3шт.

9

FOR444613

PLUG

1/8-27 pipe, Used w/1268752C1, bearing

3шт.

10

68604C1

BRACKET

transfer case rear, 4366 tractors

1шт.

10

104909C1

LINK

ASSY, transfer case rear, 4386 tractors

1шт.

71180C1

BOLT,3/4" x 2 1/2"

SCREW, 3/4-10 x 3 znd hex-hd cap

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

427637

SLOTTED NUT,3/4"-10, G5

NUT, 3/4-10 znd hex. slt

2шт.

495-11081

WASHER,3/4", SAE

.812 x 1.469 x .34 znd

1шт.

11

68565C2

PLATE ASSY.

PLATE ASSY, steering

2шт.

20670R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

3/4 x 3 type 8

6шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

12шт.

359793C1

NUT,3/4"-10, GC

3/4 cad p/t lock type 8

6шт.

12

68605C1

RING

ASSY, rear hose, 4366 tractors

1шт.

12

104959C1

RING

ASSY, rear hose, 4386 tractors

1шт.

13

68606C1

ASSEMBLY

GRATE ASSY

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

31694H

GROMMET

large

2шт.

123548H

GROMMET

small

1шт.

14

68602C1

BOLT (SPREADER),6.50"

BOLT, hinge and link king pin, 4366 tractors

1шт.

14

68602C1

BOLT (SPREADER),6.50"

BOLT, hinge and link king pin, 4386 tractors, Serial Range: -2500

1шт.

14

138088C1

BOLT,1 3/4" - 12 x 358mm, W/ Nut

BOLT, hinge and link king pin, 4386 tractors, Start Serial: 2501

1шт.

15

1250176C1

SPACER

BUSHING, hinge pin bolt spacer, 4386 tractors, Start Serial: 2501

1шт.
