Запчасти Case IH 4386 (09-03) - FRAME, FRONT FRAME, 4386 TRACTORS WITH SERIAL NO. 1501 AND ABOVE (12) - FRAME

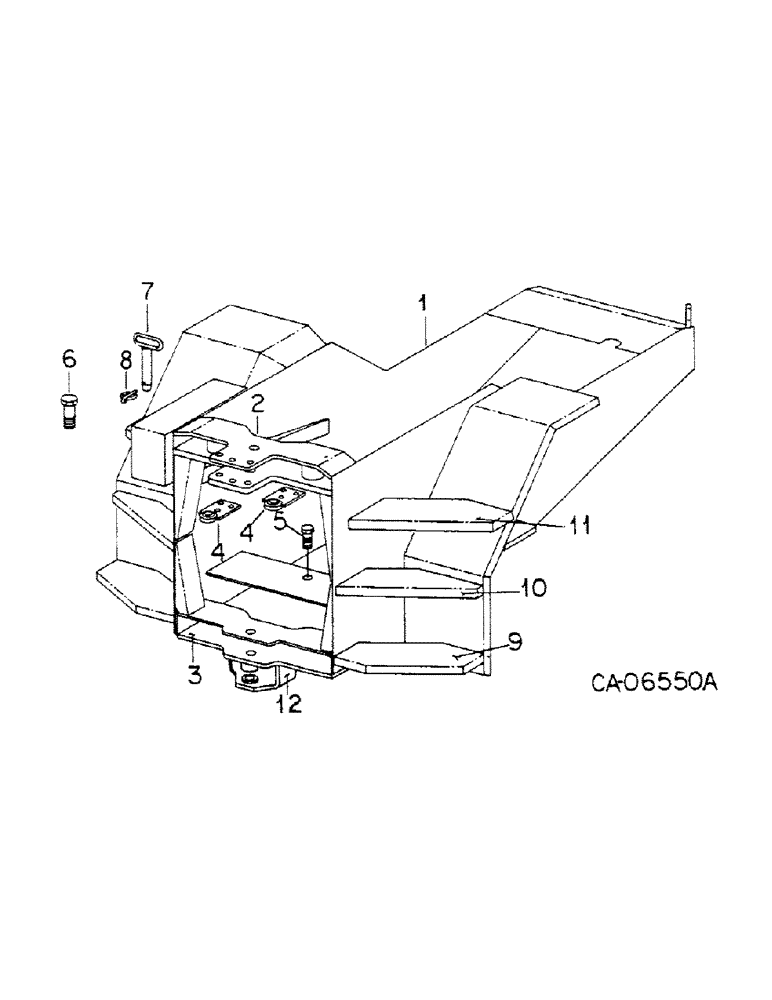

Схема запчастей Case IH 4386 - (09-03) - FRAME, FRONT FRAME, 4386 TRACTORS WITH SERIAL NO. 1501 AND ABOVE (12) - FRAME
7
12
9
6
4
11
5
2
3
10
4
1
8

Артикул

Название

Примечание

Количество

1

142146C91

FRAME ASSY, front w/product graphic, 4386 tractors, Serial Range: 1501-2070

1шт.

1

142283C91

FRAME ASSY

front w/product graphic, 4386 tractors, Replaces 142080C91, Includes ref. no. 2 and 3, Start Serial: 2071

1шт.

1

142283C91

FRAME ASSY

front w/product graphic, also order pivot pin assy 138088C1, Includes ref. no. 2 and 3, Serial Range: 2071-2500

1шт.

120391C1

DECAL

PRODUCT GRAPHIC, caution inst.

1шт.

2

129049C1

LARGE PLATE

PLATE ASSY, top hinge

1шт.

3

129050C1

POWER ARM

LINK ASSY, lower hinge

1шт.

4

68565C2

PLATE ASSY.

PLATE ASSY, steering

2шт.

20670R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

3/4 x 3 pln type 8

6шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

12шт.

359793C1

NUT,3/4"-10, GC

3/4 cad p/t lock type 8

6шт.

5

463154R2

BOLT

BOLT, lower transfer case mount

1шт.

6

70188C1

BOLT (SPREADER),1"-14 x 5.62"

BOLT, top transfer case mt

1шт.

272338

NUT

1-NF slt-thick type 5

2шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

7

104962C1

PIN

ASSY, lock

1шт.

8

392181R91

PIN

ASSY

1шт.

9

129286C1

STEP

bottom LH

1шт.

9

129308C1

STEP

bottom RH

1шт.

10

129287C1

STEP

middle LH

1шт.

10

129309C1

STEP

middle RH

1шт.

11

129288C1

STEP

top LH

1шт.

11

129310C1

STEP

top RH

1шт.

12

138075C1

LARGE PLATE

PLATE ASSY, drawbar front pivot

1шт.

1250300C91

FIELD ATTACHMENT

PACKAGE, front frame reinforcement service, Consists of

1шт.

NSS

NOT SOLD SEPARAT

BRACE, inner frame LH side

1шт.

NSS

NOT SOLD SEPARAT

BRACE, inner frame RH side

1шт.

NSS

NOT SOLD SEPARAT

BRACE, outer frame

2шт.

NSS

NOT SOLD SEPARAT

BRACE, lower frame rear

2шт.

NSS

NOT SOLD SEPARAT

BRACE, upper frame rear

2шт.

NSS

NOT SOLD SEPARAT

PLATE, axle pad

2шт.

NSS

NOT SOLD SEPARAT

PLATE, lower frame

2шт.

NSS

NOT SOLD SEPARAT

BAR, lower plate filler

2шт.

NSS

NOT SOLD SEPARAT

BAR, hyd tube

1шт.

NSS

NOT SOLD SEPARAT

TUBE ASSY, aux valve supply

1шт.

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC

2шт.

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC

1шт.

NSS

NOT SOLD SEPARAT

PLATE, T.C. mount reinforcement

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

Выбрано товаров: 38
