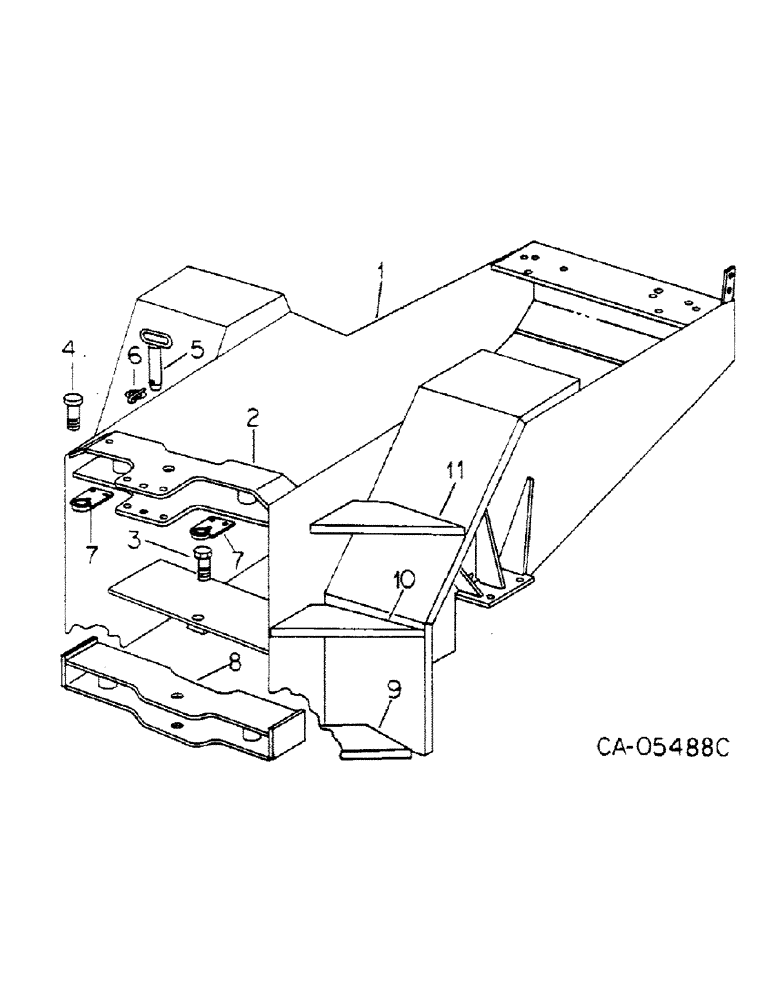

Запчасти Case IH 4386 (09-02) - FRAME, FRONT FRAME, 4386 TRACTORS WITH SERIAL NO. 1500 AND BELOW (12) - FRAME

1

129074C93

FRAME ASSY

front, Consists of ref. no. 2

2шт.

129049C1

LARGE PLATE

PLATE ASSY, center hinge

1шт.

271955

SCREW, 3/4-16 x 3 phc hex-hd cap

6шт.

495-11081

WASHER,3/4", SAE

.812 x 1.469 x .134 flat

6шт.

9413972

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 cad hex. lock

6шт.

3

463154R2

BOLT

BOLT, lower transfer case mount

1шт.

4

70188C1

BOLT (SPREADER),1"-14 x 5.62"

BOLT, top transfer case mount

1шт.

272338

NUT

1-14 slt thk hex.

2шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

5

104962C1

PIN

ASSY, frame lock

1шт.

6

392181R91

PIN

ASSY

1шт.

7

68565C2

PLATE ASSY.

PLATE ASSY, steering

2шт.

20670R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

3/4 x 3 pln type 8

6шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

12шт.

359793C1

NUT,3/4"-10, GC

3/4 cad p/t lock type 8

6шт.

8

129050C1

POWER ARM

LINK ASSY, lower hinge

1шт.

9

129286C1

STEP

bottom LH

1шт.

9

129308C1

STEP

bottom RH

1шт.

10

129287C1

STEP

middle LH

1шт.

10

129309C1

STEP

middle RH

1шт.

11

129288C1

STEP

top LH

1шт.

11

129310C1

STEP

top RH

1шт.
