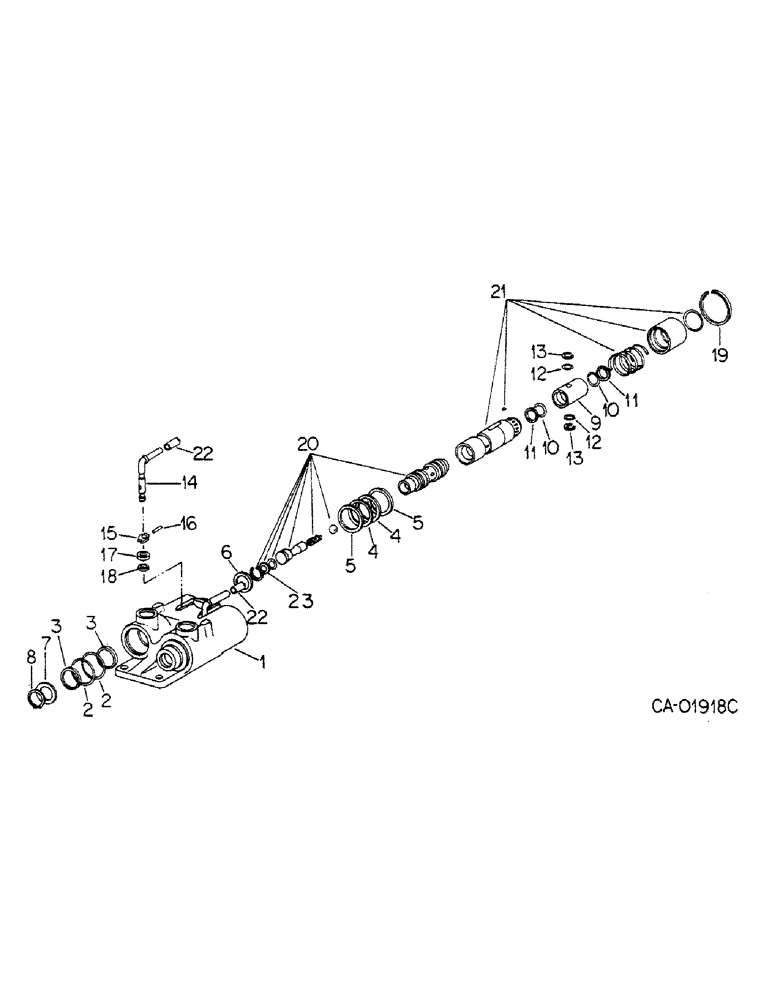

Запчасти Case IH 4386 (10-42) - HYDRAULICS, FEMALE COUPLER (07) - HYDRAULICS

544786R95

COUPLING, BREAK AWAY

COUPLING ASSY, female

2шт.

1

544788R2

BODY

1шт.

2

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/16 x 1-7/8 x 3/32

4шт.

3

544789R2

SEAL

sleeve

4шт.

4

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1-1/16 x 1-1/4 x 3/32

4шт.

5

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

back-up

4шт.

6

57071C1

RING

retaining check body inner

2шт.

7

22769R1

WASHER

2шт.

8

21399R1

SNAP RING,#106, Ext

Ring, Snap, , check body outer #106, Ext

2шт.

9

76931C1

SLEEVE

female body inner, Replaces 544798R1, 4386 tractors, Order package 76936C91, Serial Range: -2122

2шт.

9

76931C1

SLEEVE

female body inner, Replaces 544798R1, Order package 76936C91, All 4366 tractors

2шт.

10

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

13/16 x 1 x 3/32

4шт.

11

544799R1

WASHER

backup

4шт.

12

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16, 4386 tractors, Serial Range: -2122

4шт.

12

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16, All 4366 tractors

4шт.

12

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16, 4386 tractors, Start Serial: 2123

2шт.

13

544800R1

WASHER

back-up, 4386 tractors, Serial Range: -2122

4шт.

13

544800R1

WASHER

back-up, All 4366 tractors

4шт.

13

76932C1

WASHER

o-ring back-up, 4386 tractors, Start Serial: 2123

2шт.

14

142371C1

HANDLE

Replaces 76933C1, 4386 tractors, Order package 76936C91, Serial Range: -2122

2шт.

14

142371C1

HANDLE

Replaces 76933C1, Order package 76936C91, All 4366 tractors

2шт.

15

544804R1

CAM

check valve

2шт.

16

544805R1

PIN

cam retainer

2шт.

17

544806R1

RETAINER

cam shaft, 4386 tractors, Serial Range: -2122

2шт.

17

544806R1

RETAINER

cam shaft, All 4366 tractors

2шт.

17

76935C1

SPACER

WASHER, cam check valve - spacer, 4386 tractors, Start Serial: 2123

2шт.

18

399921C1

RING

cam shaft retaining, 4386 tractors, Serial Range: -2122

2шт.

18

399921C1

RING

cam shaft retaining, All 4366 tractors

2шт.

19

537468R1

SNAP RING,#193, 2.081", Int

RING, retaining

2шт.

20

148484C91

VALVE, CHECK

VALVE ASSY, check, Replaces 549158R1

2шт.

21

549159R2

SLEEVE

ASSY, female body

2шт.

22

NOT USED THIS APPLICATION

1шт.

23

544795R1

WASHER

back-up

1шт.

549160R92

PACKAGE

hydraulic coupler o-ring and seal service, Consists of ref nos. 2, 3, 4, 5, 10, 11, 12, 13 and 18

1шт.

76936C91

PACKAGE

female coupling handle service tractors, Consists of, Serial Range: -2122

1шт.

76936C91

PACKAGE

female coupling handle service tractors, All 4366 tractors, Consists of

1шт.

142371C1

HANDLE

valve

1шт.

76931C1

SLEEVE

female coupling body - small

1шт.

76935C1

SPACER

WASHER, cam check valve shaft - spacer

1шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16

1шт.

76932C1

WASHER

valve shaft o-ring back-up

1шт.
