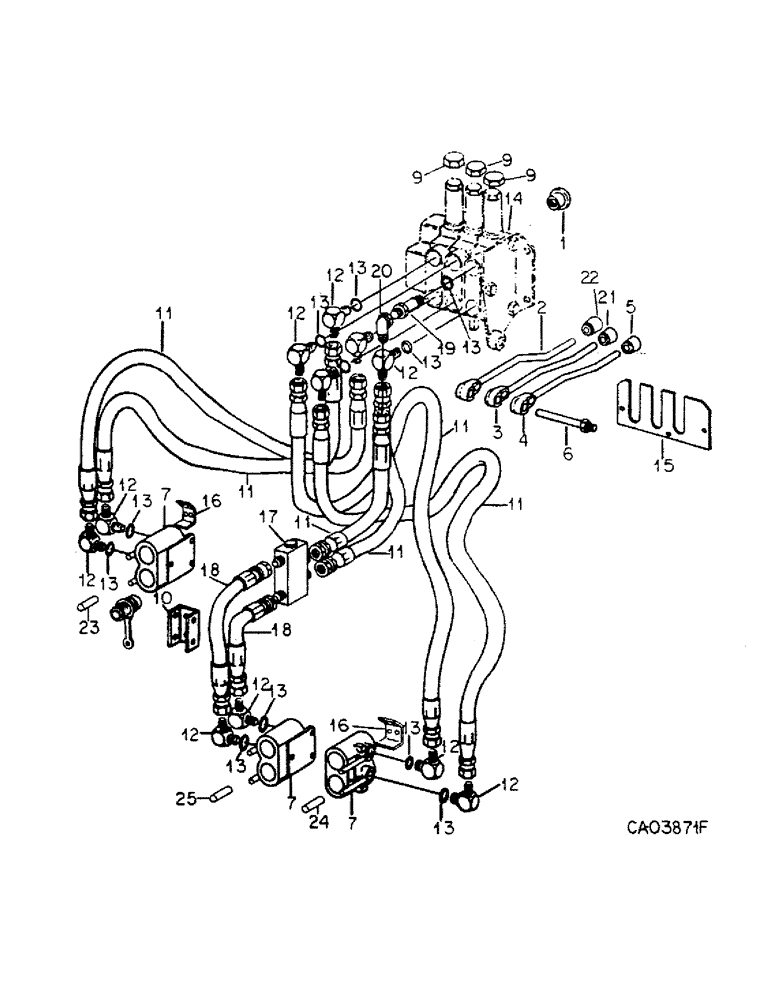

Запчасти Case IH 4386 (10-34) - HYDRAULICS, VALVE BANK AND CONNECTIONS, FOR THREE VALVE BANK ASSEMBLY (07) - HYDRAULICS

1

70174C1

BUSHING

ISOMOUNT, rubber

4шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120390

WASHER,1/2"

.562 x 1.375 x .086

8шт.

391553R1

SPACER,1/2" Pipe x 7/8"

.875 x .840 x .622 std pipe

4шт.

2

68608C1

LEVER ASSY.

LEVER ASSY, valve actuating inner, 4366 tractors, Serial Range: -10452

1шт.

2

124530C3

LEVER

ASSY, valve actuating inner, 4366 tractors, Start Serial: 1053

1шт.

2

124530C3

LEVER

ASSY, valve actuating inner, 4368 tractors, Serial Range: -2096

1шт.

2

132637C1

LEVER

ASSY, actuating short, 4386 tractors, Start Serial: 2097

1шт.

3

68610C1

LEVER ASSY.

LEVER ASSY, valve actuating center, 4366 tractors, Serial Range: -10452

1шт.

3

124531C3

LEVER

ASSY, valve actuating center, 4366 tractors, Start Serial: 10453

1шт.

3

132635C1

LEVER

ASSY, actuating center, 4386 tractors, Start Serial: 2097

1шт.

3

124532C3

LEVER

ASSY, actuating center, 4386 tractors, Serial Range: -2096

1шт.

4

68612C1

LEVER ASSY.

LEVER ASSY, valve actuating outer, 4366 tractors, Start Serial: 10452

1шт.

4

124532C3

LEVER

ASSY, valve actuating outer, 4366 tractors, Serial Range: -10453

1шт.

4

132635C1

LEVER

ASSY, actuating outer, 4386 tractors, Start Serial: 2097

1шт.

5

387885R1

KNOB

actuating lever - black, 4386 tractors, Serial Range: -2500

1шт.

5

387885R1

KNOB

actuating lever - black, all 4366 tractors

1шт.

5

147094C1

KNOB, actuating lever - blue, 4386 tractors, Start Serial: 2501

1шт.

6

67981C1

SHAFT

lever pivot

1шт.

98724H

AXLE PIN,1/2" x 1.688"

PIN, 1/2 x 1-11/16 rod end, 4386 tractors

3шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

3шт.

7

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY, female, For component details refer to female coupler listing this group, 3 for Unit A and 2 for Unit B

3шт.

8

64757C1

PLUG

ASSY, coupler dust, Replaces 537589R91, 6 For Unit A and 4 for Unit B

1шт.

9

124708C1

CAP

valve weather

3шт.

10

69555C1

BRACKET

coupler, Unit A

3шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

120396

WASHER

17/32 x 1-1/16 x .074 znd

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 cad p/t lock type 5

4шт.

11

69556C1

HOSE

ASSY, valve to coupler, 4386 tractors, three valve bank assy, Serial Range: -2146

6шт.

11

69556C1

HOSE

ASSY, valve to coupler, 4386 tractors, alternating check valve assy, Serial Range: -2146

4шт.

11

141963C1

HOSE

ASSY, valve to coupler, 4386 tractors, three valve bank assy, Start Serial: 2147

6шт.

11

141963C1

HOSE

ASSY, valve to coupler, 4386 tractors, alternating check valve assy, Start Serial: 2147

4шт.

306132C1

CABLE TIE,14.5" L

STRAP, hose

3шт.

11

141965C1

HOSE ASSY.

HOSE ASSY, aux-valve to check valve, Replaces 58766C1, Used with alternating check valve assy

2шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube 90 deg, Unit A and 8 for Unit B

12шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube 90 deg, 4386 tractors, Start Serial: 2147

11шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, 12 for Unit A and 8 for Unit B

1шт.

14

VALVE BANK ASSY, three, Refer to valve bank listing in the group

1шт.

15

70393C1

COVER, three valve bank, 4366 tractors

1шт.

15

129477C2

COVER

three valve bank, 4386 tractors

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1 zn hex-washer hd tap

3шт.

16

114368C1

BRACKET

female coupler, Unit B

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074 znd

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

6шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock znd

6шт.

17

142864C95

VALVE

ASSY, alternating check

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18

114366C1

HOSE ASSY.

HOSE ASSY, check valve to coupler, Used with alternating check valve assy

2шт.

19

9410230

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, Pipe

CONNECTOR, 7/8-14 C-Z 37 deg hyd flrd tube long, 4386 tractors, Start Serial: 2147

1шт.

20

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 C-Z 37 deg tube 90 deg swivel, 4386 tractors, Start Serial: 2147

1шт.

21

387885R1

KNOB

actuating lever - black, 4386 tractors, Serial Range: -2500

1шт.

21

387885R1

KNOB

actuating lever - black, all 4366 tractors

1шт.

21

147093C1

KNOB, actuating lever - yellow, 4386 tractors, Start Serial: 2501

1шт.

22

387885R1

KNOB

actuating lever - black, 4386 tractors, Serial Range: -2500

1шт.

22

387885R1

KNOB

actuating lever - black, all 4366 tractors

1шт.

22

397931R2

GRIP

KNOB, actuating lever - black, 4386 tractors, Start Serial: 2501

1шт.

22

397931R2GV

SPRING

Value, Knob

1шт.

23

139346C1

SLEEVE

coupling lever - black

2шт.

24

139347C1

SLEEVE

coupling lever - yellow

2шт.

25

139348C1

SLEEVE

coupling lever - blue

2шт.
