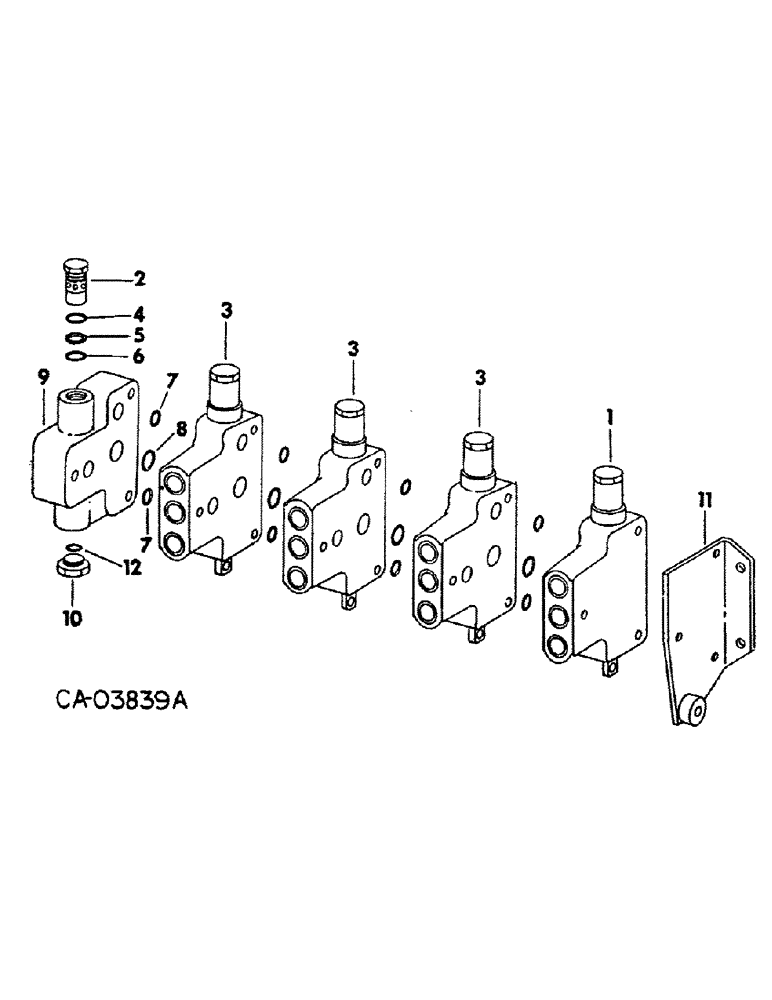

Запчасти Case IH 4386 (10-33) - HYDRAULICS, VALVE BANK ASSEMBLY (07) - HYDRAULICS

1

529911R93

LOCK VALVE

VALVE ASSY, hyd control w/solid back, Replaces 59362C92, For components, See list of parts under details of hydraulic control valve

1шт.

2

388208R93

VALVE

ASSY, 2000 PSI relief

1шт.

3

529910R93

LOCK VALVE

VALVE ASSY, hyd control, Replaces 383272R95, For components, See list of parts under details of hydraulic control valve

1шт.

4

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 class 5

1шт.

5

378985R2

BACK-UP RING

relief valve back-up

1шт.

6

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 class 6

1шт.

7

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 class 6, 2 per valve bank assy

1шт.

8

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 class 6, 1 per valve bank assy

1шт.

9

391217R1

COVER, valve end

1шт.

10

9410362

PLUG,Hex Hd, 1 3/16"-12 ORB

7/8 C-Z str thd o-ring boss

1шт.

11

67930C1

BRACKET

ASSY, valve mounting

1шт.

20058R1

BOLT,Hex, 3/8" - 16 x 7", Gr 8

3/8 x 7 pln type 8, For two valve bank

3шт.

25947R1

BOLT,3/8" x 9", Gr 8

3/8 x 9 phc type 8, For three valve bank

3шт.

26961R1

BOLT

BOLT, 3/8 x 11 phc type 8, For four valve bank

3шт.

527476R1

WASHER

3шт.

102635

NUT,3/8"-16, G5

3шт.

12

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube class 6

1шт.
