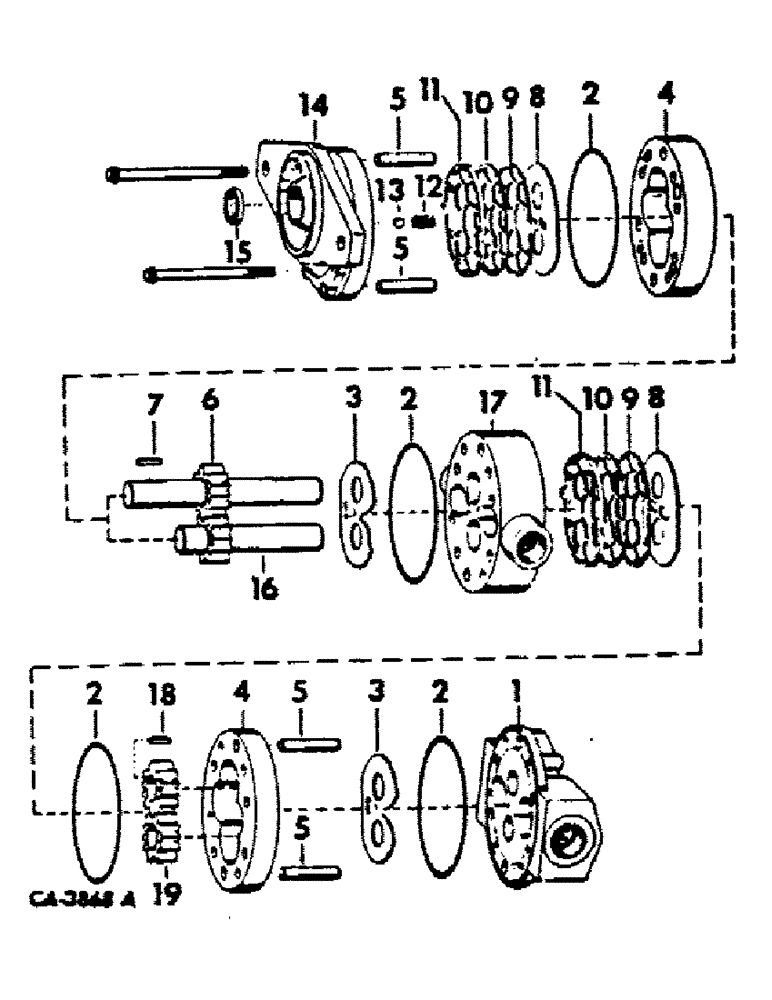

Запчасти Case IH 4386 (10-32) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1949280C1
REMAN-HYD PUMP
4366 (1/73-12/76), 4386 (1/76-12/81), Both INTERNATIONAL 4WD DIESEL TRACTOR, PUMP ASSY
1шт.
1
NSS
NOT SOLD SEPARAT
PLATE ASSY, back, Not serviced separately, order pump assy
1шт.
2
NSS
NOT SOLD SEPARAT
O-RING, 3/32 x 5 I.D., Not serviced separately, order o-ring and gasket package
4шт.
3
NSS
NOT SOLD SEPARAT
PLATE, thrust, Not serviced separately, order o-ring and gasket package
2шт.
6
NSS
NOT SOLD SEPARAT
GEAR ASSY, drive, Not serviced separately, order pump assy
1шт.
8
NSS
NOT SOLD SEPARAT
DIAPHRAGM, Not serviced separately, order o-ring and gasket package
2шт.
9
NSS
NOT SOLD SEPARAT
GASKET, back-up, Not serviced separately, order o-ring and gasket package
2шт.
10
NSS
NOT SOLD SEPARAT
GASKET, protector, Not serviced separately, order o-ring and gasket package
2шт.
11
NSS
NOT SOLD SEPARAT
SEAL, diaphragm, Not serviced separately, order o-ring and gasket package
2шт.
16
NSS
NOT SOLD SEPARAT
GEAR ASSY, idler, Not serviced separately, order pump assy
1шт.
17
NSS
NOT SOLD SEPARAT
PLATE ASSY, adaptor, Not serviced separately, order pump assy
1шт.
18
NSS
NOT SOLD SEPARAT
KEY, 1/8 x 3/16 x .75 lg, Not serviced separately, order pump assy
1шт.
19
NSS
NOT SOLD SEPARAT
GEAR ASSY, idler, Not serviced separately, order pump assy
2шт.
