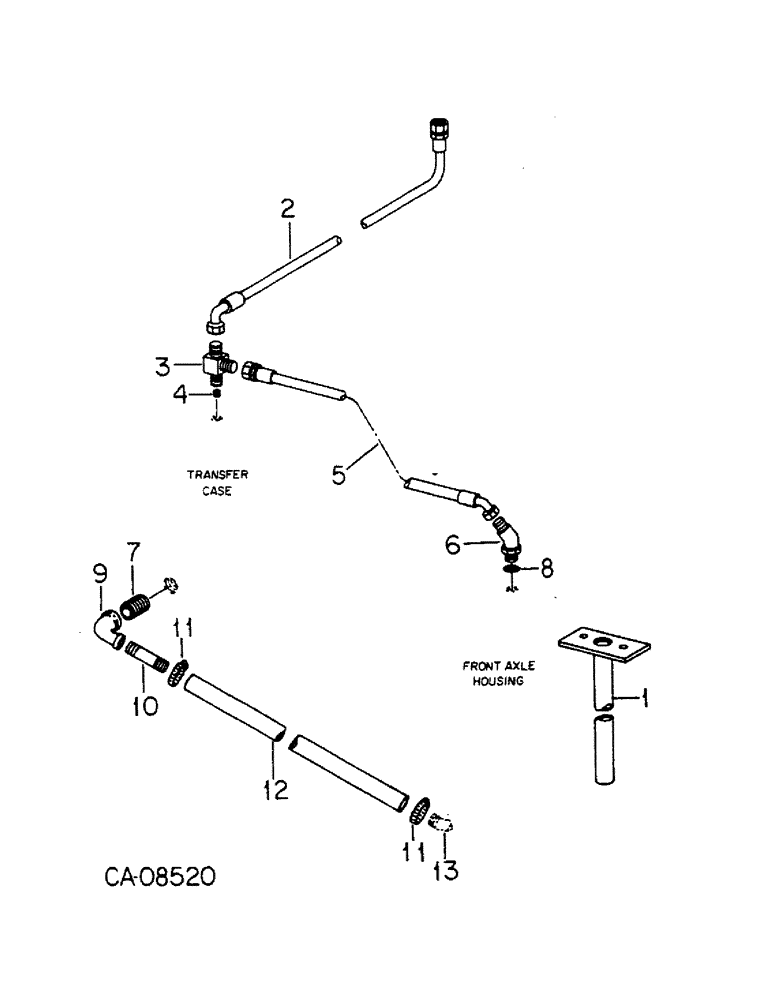

Запчасти Case IH 4366 (10-19) - HYDRAULICS, TRANSMISSION CONNECTIONS, 4366 TRACTORS (07) - HYDRAULICS

1

67949C1

TUBE ASSY, frt axle dump

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

71158C1

ROD

HOSE ASSY, relief valve to transfer case (replaces 69393C1)

1шт.

Ref #2 (P/N 71158C1) - SB 2769

1шт.

3

69394C1

TEE

transfer case

1шт.

4

69395C1

ORIFICE

transfer case pipe

1шт.

444697

PLUG,Hex Soc, 3/8"-18

3/8-18 pln hex/skt auto pipe

1шт.

5

69396C1

HOSE ASSY.

HOSE ASSY, transfer, Serial Range: case-axle

1шт.

6

9411106

ELBOW

5/8 C-Z hyd fld adj 45D

1шт.

7

127874

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE, 1 x 1-1/2 pln close pipe

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

9

217986

ELBOW, 1 to 3/4 pln 90D pipe

1шт.

10

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE, 3/4 x 3 pln long pipe

1шт.

11

224909R1

CLAMP, 1.5 hose, Replaces 23908C1

2шт.

12

69397C1

HOSE

transfer case to axle, 17.25", Serial Range: -10294

1шт.

12

124577C1

HOSE, transfer case to axle, Start Serial: 10295

1шт.

127502C1

TUBE, guard

1шт.

13

ELBOW, refer to front & rear axle center frame listing group 7

1шт.
