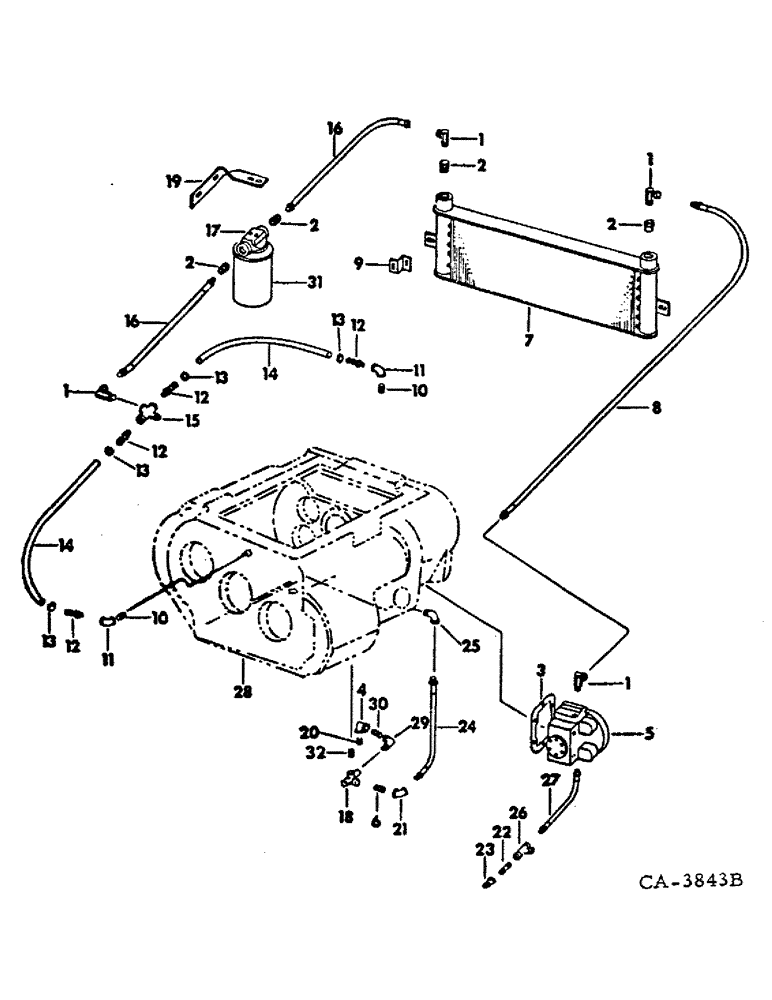

Запчасти Case IH 4366 (10-15) - HYDRAULICS, OIL COOLER CONNECTIONS, 4366 TRACTORS WITH SERIAL NO. 10020 AND BELOW (07) - HYDRAULICS

1

293350R91

UNION

FITTING, 3/8 npt to 3/8 npt

4шт.

2

144054

ADAPTER, 3/8 x 1 zid reducing pipe, Serial Range: -10381

4шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

REDUCER, , Adapter, znp out/h/hd pipe 1/2"-14 NPTF x 3/8"-18 Fem NPTF, Start Serial: 10382

4шт.

3

10705V

GASKET

GASKET, oil pump

1шт.

4

144129

FILTER ASSY

ELBOW, 3/4 zn 90 deg pipe

1шт.

5

PUMP ASSY, oil, Refer to transmission oil pump listing group 7

1шт.

60000R91

BOLT

SPARE PART BOLT W/WASHER

2шт.

27032R1

SCREW, 3/8-16 x 3-1/4 phc hex-hd cap type 8

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

219657

SHAFT

SPARE PART NIPPLE, 3/4 x 2 zn pipe, Serial Range: -8305

1шт.

6

70965C1

SPARE PART NIPPLE, 3/4-14 x 1-1/2 zn hv pipe, Start Serial: 8306

1шт.

7

71903C1

COOLER

COOLER ASSY, trans oil, Replaces 69898C1, Also furnish two connectors 343804R1 and two adapters 144039, Serial Range: -10381

1шт.

8

70146C1

HOSE ASSY.

HOSE ASSY, hydraulic

1шт.

9

69780C1

ANCHOR

MOUNT, oil cooler

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, 3/8-16 x 1 znd

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad hex lock

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

8шт.

10

192050

NIPPLE, LUBE,Nipple, 1/4" NPT x 7/8"

NIPPLE NIPPLE, 1/4 x 7/8 zn pipe

2шт.

11

NLS

NO LONGER SERVICED

Union Elbow ELBOW, 1/4 90 deg pipe

2шт.

12

70090C1

FITTING

ADAPTER, 1/4 npt to hose, Replaces 70155C1

4шт.

13

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

HOSE CLAMP, #06, .44/.78 Type F Worm

4шт.

14

69784C1

HOSE

HOSE, trans oil return

2шт.

15

69783C1

TEE

TEE ASSY, trans oil return

1шт.

16

70147C1

HOSE

HOSE ASSY, hydraulic

2шт.

17

69781C91

FILTER

FILTER ASSY, trans oil cooler, Consist of ref no. 31

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, 3/8-16 x 3/4 znd hex-hd cap

1шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

69136C1

SPARE PART TEE, 3/4 pipe four way

2шт.

19

69782C1

ANCHOR

MOUNT, transmission filter

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, 3/8-16 x 3/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 pln sq/skt auto pipe, transmission drain

1шт.

21

179533

SPARE PART ELBOW, 3/4 to 1/2 znp 90D pipe

1шт.

22

192069

SPARE PART NIPPLE, 3/4 x 1/2 zn pipe, Serial Range: -8305

1шт.

22

71307C1

SPARE PART NIPPLE, 3/4 x 1/2 hex reducer, Start Serial: 8306

1шт.

23

217-46

REDUCER,3/4" - 14 NPTF x 3/8" - 18 Fem NPTF

ADAPTER, 3/4 to 3/8 znp out/h/hd pipe, Serial Range: -8305

1шт.

24

69137C1

SPARE PART HOSE ASSY, oil cooler, Serial Range: -8305

1шт.

24

71304C1

SPARE PART HOSE ASSY, oil cooler, Start Serial: 8306

1шт.

25

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

ELBOW, 1/2 znp 90D pipe street

1шт.

26

69131C1

SPARE PART STRAINER ASSY, oil, Serial Range: -8305

1шт.

26

71308C1

STRAINER ASSY.

STRAINER ASSY, oil, Start Serial: 8306

1шт.

27

69138C1

SPARE PART HOSE ASSY, oil pump, Serial Range: -8305

1шт.

27

71305C1

SPARE PART HOSE ASSY, oil pump, Start Serial: 8306

1шт.

28

CASE ASSY, transmission, Refer to transmission listing group 7

1шт.

29

144113

BRACKET

ELBOW, 3/4 znp 90D pipe street

1шт.

30

219659

NIPPLE, 3/4 x 3 zn pipe

1шт.

31

70203C1

FILTER

FILTER, transmission oil cooler spin-on

1шт.

32

70965C1

SPARE PART NIPPLE, 3/4-14 x 1-1/2 zn hv pipe

1шт.
