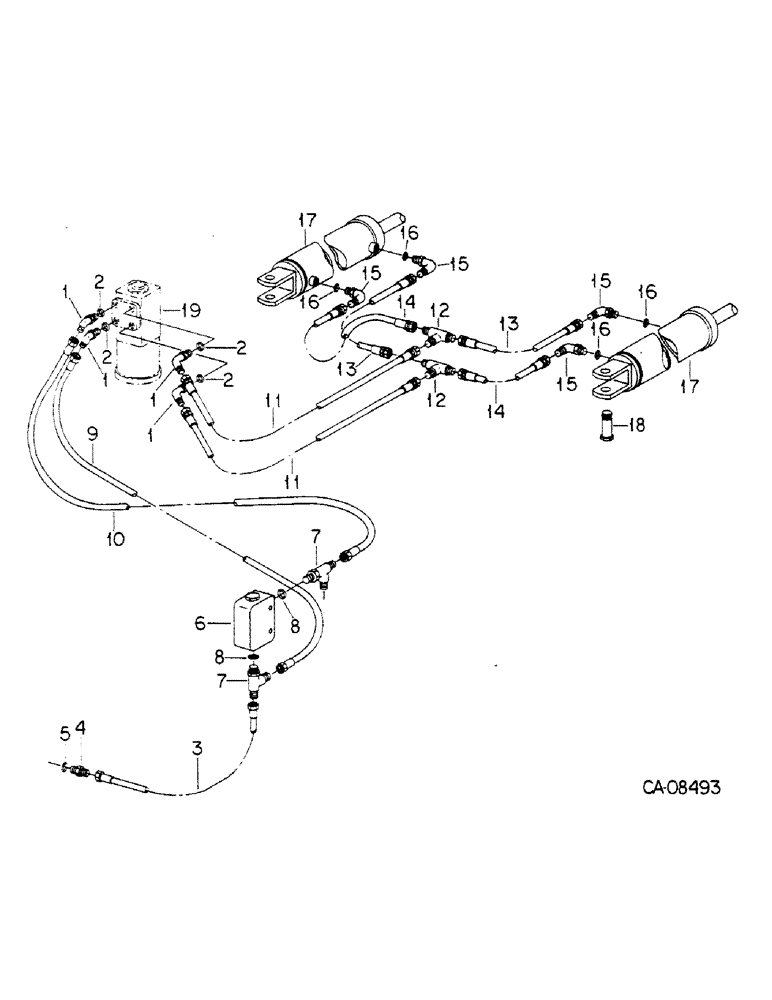

Запчасти Case IH 4366 (10-07) - HYDRAULICS, HYDRAULIC POWER STEERING AND CONNECTIONS, 4366 TRACTORS (07) - HYDRAULICS

1

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 45D

4шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

4шт.

3

70144C2

HOSE

ASSY, pump to relief valve

1шт.

4

469736R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 3/16"-12, O-Ring

CONNECTOR, C-Z hyd fld 7/8 to 5/8 sht

1шт.

5

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube class 6

1шт.

6

60053C91

VALVE ASSY, steering relief, For components see list of parts under details of steering relief valve

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

7

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

5/8 C-Z hyd fld tube adj

2шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

9

69398C1

HOSE

ASSY, relief, Serial Range: valve-orbitrol

1шт.

10

69399C1

HOSE

ASSY, relief, Serial Range: valve-orbitrol

1шт.

11

220317H2

HOSE

ASSY, orbitrol to cylinder tee

2шт.

69400C1

FRAME ASSY

steering cylinder hose

1шт.

69401C1

BRACE

steering cylinder hose

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2 type 5

1шт.

NLS

NO LONGER SERVICED

.469 x .922 x .051

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 cad p/t lock type 5

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

9402982

TEE,3/4"-16, 37 Degree

1/2 C-Z hyd flared three way

2шт.

13

69402C1

HOSE

ASSY, Serial Range: tee-cylinder

2шт.

14

179790H1

HOSE ASSY, Serial Range: tee-cylinder

2шт.

15

556656R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

C-Z hyd fld 1/2 to 1/2 90D, Serial Range: -8271

4шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D, Start Serial: 8272

4шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, Start Serial: 8272

4шт.

17

CYLINDER ASSY, steering, For components, See list of parts under details of power steering cylinder

1шт.

18

127335C1

BOLT,Hex, 1 1/8" - 12 x 4", Drilled

BOLT, steering cylinder

4шт.

425-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT, 1-1/8 znd slt-thk type 5

4шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

4шт.

21716R1

WASHER

1.156 x 1.750 x .054

4шт.

19

ORBITROL ASSY, steering pump, For components, See list of parts under details of steering pump orbitrol

1шт.
