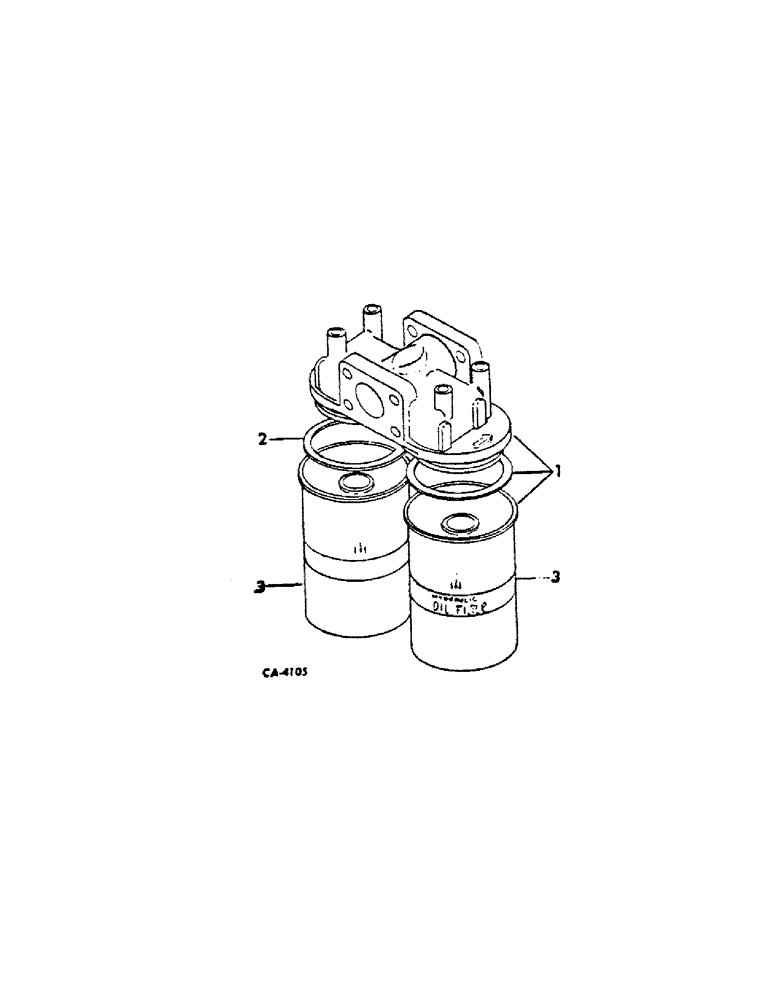

(10-03) - HYDRAULICS, HYDRAULIC OIL FILTER, 4366 TRACTORS WITH SERIAL NO. 10532 AND BELOW

Запчасти Case IH 4366 (10-03) - HYDRAULICS, HYDRAULIC OIL FILTER, 4366 TRACTORS WITH SERIAL NO. 10532 AND BELOW (07) - HYDRAULICS

Схема запчастей Case IH 4366 - (10-03) - HYDRAULICS, HYDRAULIC OIL FILTER, 4366 TRACTORS WITH SERIAL NO. 10532 AND BELOW (07) - HYDRAULICS
2
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

69148C91

FILTER

ASSY, hydraulic oil

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

69615C1

OIL SEAL

SEAL, filter

2шт.

3

69149C1

FILTER

ELEMENT, hydraulic filter

2шт.

Выбрано товаров: 5
