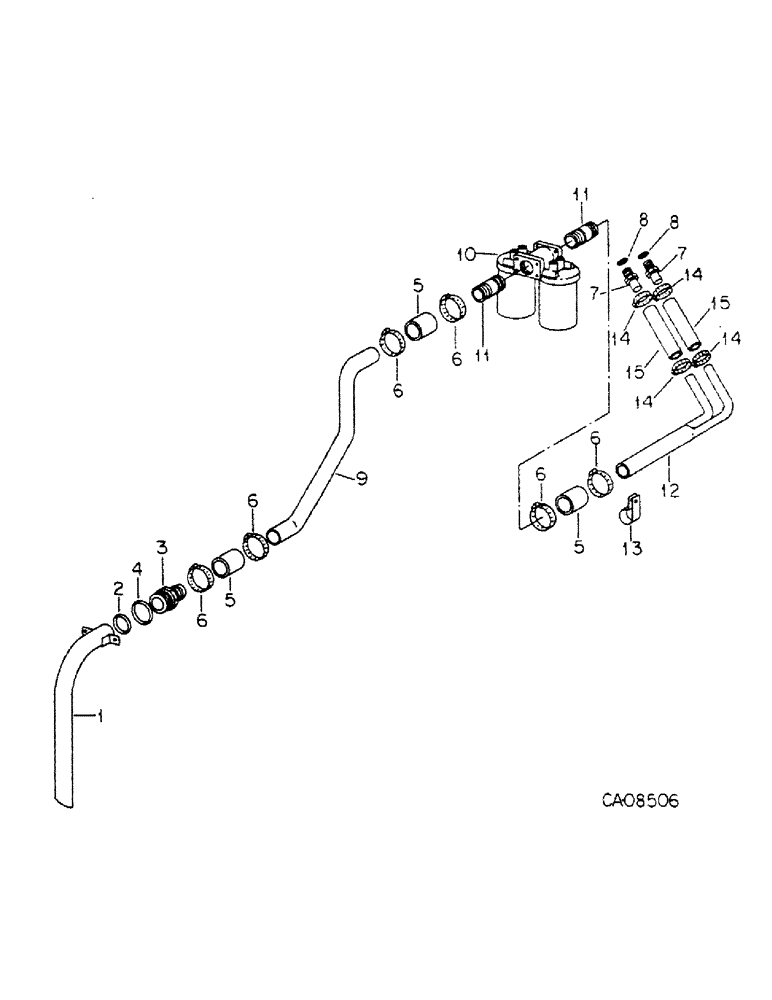

Запчасти Case IH 4366 (10-01) - HYDRAULICS, HYDRAULIC FILTER AND SUCTION, 4366 TRACTORS WITH SERIAL NO. 10532 AND BELOW (07) - HYDRAULICS

1

67894C1

TUBE ASSY, frt drive axle oil suction 17.75" Length

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 bevel washer

2шт.

2

382432R1

O-RING,1.984" ID x 0.139" Width

2 x 2-1/4 class 5

1шт.

3

69388C1

ADAPTER

axle to hydraulic filter

1шт.

4

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 class 5

1шт.

5

134790C1

TUBE,4" Length

HOSE, suction, Replaces 71494C2 by also ordering 2 clamps, 224910C1

3шт.

6

224910C1

HOSE CLAMP,1.75/2.625 HD Worm, W/liner

CLAMP, 2.50 hose, Replaces 317595R1, 184368H1 or 28275R1

6шт.

7

390640R1

FITTING

1-5/16-12 o-ring boss

2шт.

8

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 OD tube class 6

2шт.

9

69390C1

TUBE,2" OD, 19.968" Length

suction

1шт.

10

69148C91

FILTER

ASSY, hydraulic oil, For components see list of parts under details of hydraulic oil filter

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

219376

NIPPLE, 1-1/2 x 2-1/4 pipe

2шт.

12

69391C1

TUBE ASSY.

MANIFOLD ASSY, hydraulic suction

1шт.

13

26082R1

CLAMP,2", 1/4" Bolt

2 in. closed

2шт.

436754

SCREW,Slotted Pan Hd, #10-32 x 1"

no. 10-NF x 1 znp p/hds mach

2шт.

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, #10-32, GB

2шт.

14

224909C1

CLAMP,1.25/2.125 HD Worm, W/liner

1.5 hose, Replaces 23908R1

4шт.

15

69392C1

HOSE,1.00" ID x 8.00"

Suction 1.00" ID x 8.00"

2шт.
