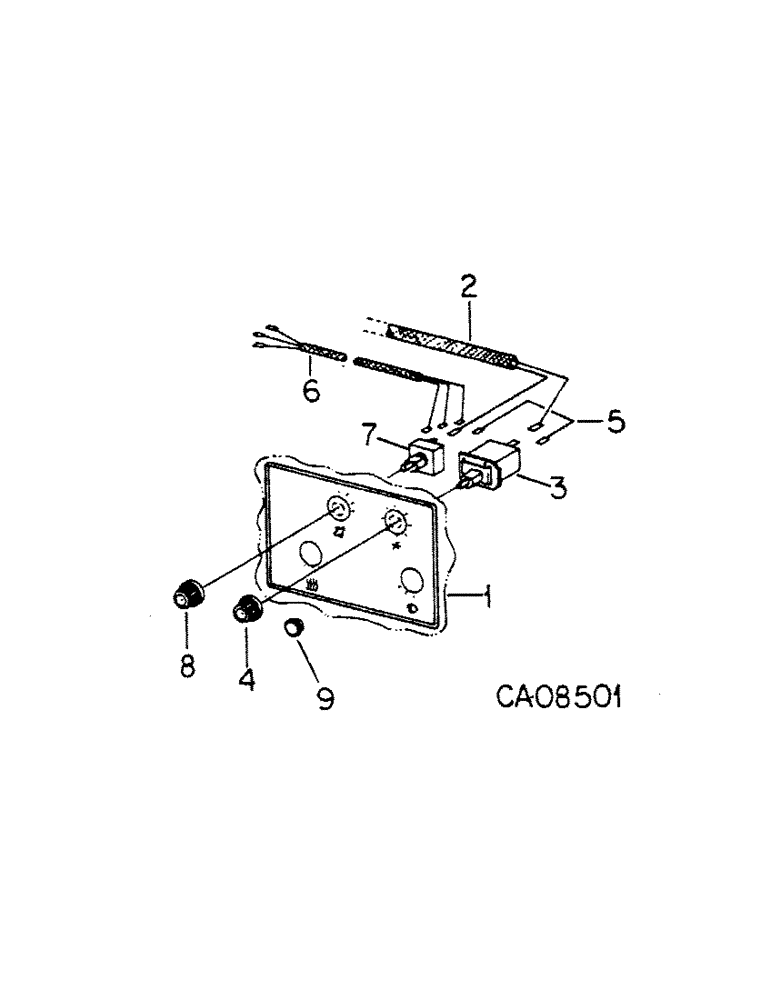

Запчасти Case IH 4366 (08-25) - ELECTRICAL, CONTROL CENTER TEMPERATURE CONTROLS AND CONNECTIONS, 4366 TRACTORS (06) - ELECTRICAL

1

CAB ASSY, Refer to group 13

1шт.

2

69537C1

HARNESS

ASSY, console

1шт.

3

70500C2

SWITCH

thermostat

1шт.

Ref #3 (P/N 70500C2) - See SB 2769

1шт.

4

539810R1

KNOB

thermostat switch

1шт.

5

69452C1

CABLE ASSY.

CABLE ASSY, blower, Serial Range: switch-thermostat

1шт.

46893H

CONNECTION

CONNECTOR, two wire line

1шт.

6

1250040C1

BLOWER

HARNESS ASSY, blower to switch, Replaces individual cables, 69454C1, 69455C1 & 69456C1

1шт.

7

539052R2

SWITCH

fan blower

1шт.

8

539810R1

KNOB

blower switch

1шт.

9

70292C1

PLUG

a/c thermostat switch, Serial Range: -9722

1шт.
