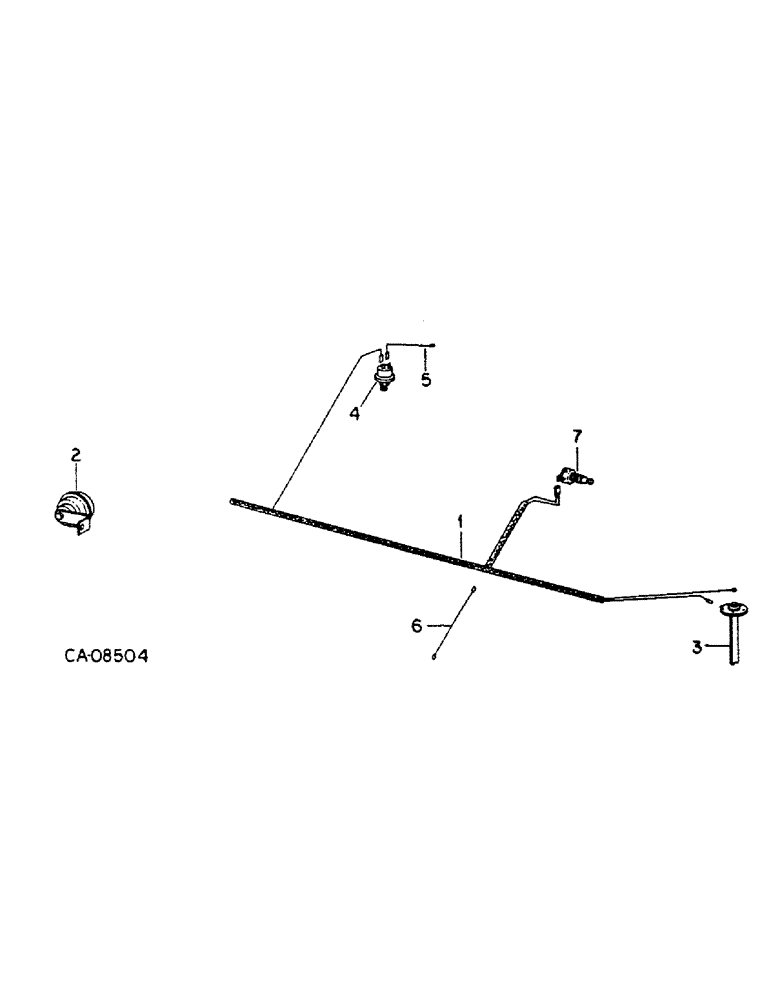

Запчасти Case IH 4366 (08-22) - ELECTRICAL, CHASSIS WIRING, SWITCHES AND RELATED PARTS, 4366 TRACTORS (06) - ELECTRICAL

1

69536C1

HARNESS

ASSY, main wire

1шт.

188395C1

CONNECTOR, ELEC

CONNECTOR BODY, single blade

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot

2шт.

145510

FUSE,1 Amp, Type 3AG

cartridge, 1 amp

1шт.

2

9000239

HORN

ASSY, electric, tractors w/horn attachment

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

70652C1

CABLE ASSY.

CABLE ASSY, horn to horn switch

1шт.

3

SENDER, fuel gauge, Refer to group 12

1шт.

4

531609R1

IGNITION SWITCH

SWITCH, electric air cleaner vacuum

1шт.

389908R91

ADAPTER

ASSY, vacuum switch

1шт.

5

69434C1

DIPSTICK

CABLE ASSY, air cleaner vacuum, Serial Range: switch-ground

1шт.

6

69447C1

CABLE

ASSY, cab ground

1шт.

7

121629C2

SWITCH

ASSY, neutral starting, Replaces 532682R1

1шт.

70398C1

BRACKET

neutral start switch, Replaces 68666C1

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.
