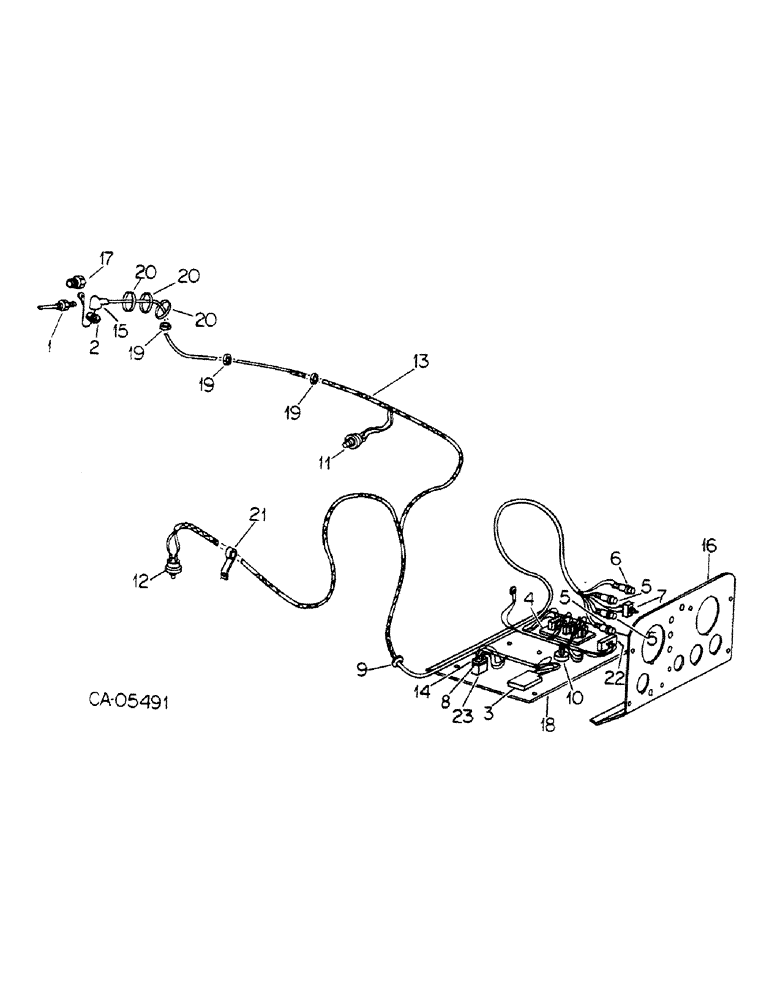

Запчасти Case IH 4366 (08-20) - ELECTRICAL, EARLY WARNING SYSTEM PARTS ACCESSORY, 4366 TRACTORS (06) - ELECTRICAL

64528C91

PARTS ACCESSORY, engine coolant, oil & transmission oil pressure, Consists of ref. nos. 1 thru 23 plus

1шт.

404352R1

SWITCH

1шт.

71224C1

BRACKET

1шт.

588736R1

SPACER

1шт.

180084

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

SCREW

1шт.

120376

NUT,5/16"-18, G5

1шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

71222C1

CABLE

1шт.

66164C1

CABLE

1шт.

670043C1

CLIP

1шт.

1

449791C1

SWITCH

PROBE ASSY, low coolant level

1шт.

2

121814C1

RETAINER

probe boot

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

3

121770C2

TRANSMITTER

MODULE ASSY, low coolant level

1шт.

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

4

121819C1

RECTIFIER ASSY, network

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

5

109369C91

LIGHT ASSY.

LIGHT ASSY, engine oil, engine coolant & trans. oil pressure indicator, Only serviceable items are

3шт.

71652C1

LENS

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP

1шт.

6

121815C91

LAMP

LIGHT ASSY, park brake warning indicator

1шт.

7

121835C1

SWITCH

ASSY, toggle

1шт.

8

121896C1

HOLDER

control

1шт.

9

120302

GROMMET,3/8" ID x 27/32" x .188", Diag Cut

rubber, cable harness

1шт.

10

121628C1

BUZZER

ALARM, electric audible

1шт.

11

121817C1

SWITCH

ASSY, engine oil pressure

1шт.

9409938

TEE,1/8"-27 Fem

1/8-27 znp auto pipe

1шт.

105404

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE, 1/8 x 3/4 pln close pipe

1шт.

12

121816C1

SWITCH

ASSY, transmission oil pressure

1шт.

444026

REDUCER,3/8"-18 NPTF x 1/8"-27 Fem NPTF

BUSHING, 3/8 to 1/8 pln auto pipe

1шт.

444122

TEE,3/8"-18 NPTF Fem

3/8-18 pln auto pipe

1шт.

13

121833C1

HARNESS ASSY, main

1шт.

14

121813C1

BUSHING

SOCKET, control relay

1шт.

15

399470R1

BOOT

INSULATOR, boot

1шт.

16

PANEL, instrument, Refer to panel, gauges and piping listing group 11

1шт.

17

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

1/4-1/8 reducing pipe

1шт.

18

DOOR ASSY, access, Refer to cab assy listing group 13

1шт.

299403C1

CLAMP

.375 dia znp coated med clo access panel

1шт.

98959R1

CLAMP

.500 dia znp coated med clo access panel

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

160541

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 znp p/hdcr mach

3шт.

19

289862C1

CABLE TIE,3/16" x 7"

STRAP, cable lock

6шт.

20

306132C1

CABLE TIE,14.5" L

STRAP, cable lock

3шт.

21

384559R1

CLIP

cable harness

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2 type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

121818C1

RELAY

time delay

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

23

121836C1

RELAY

control

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.
