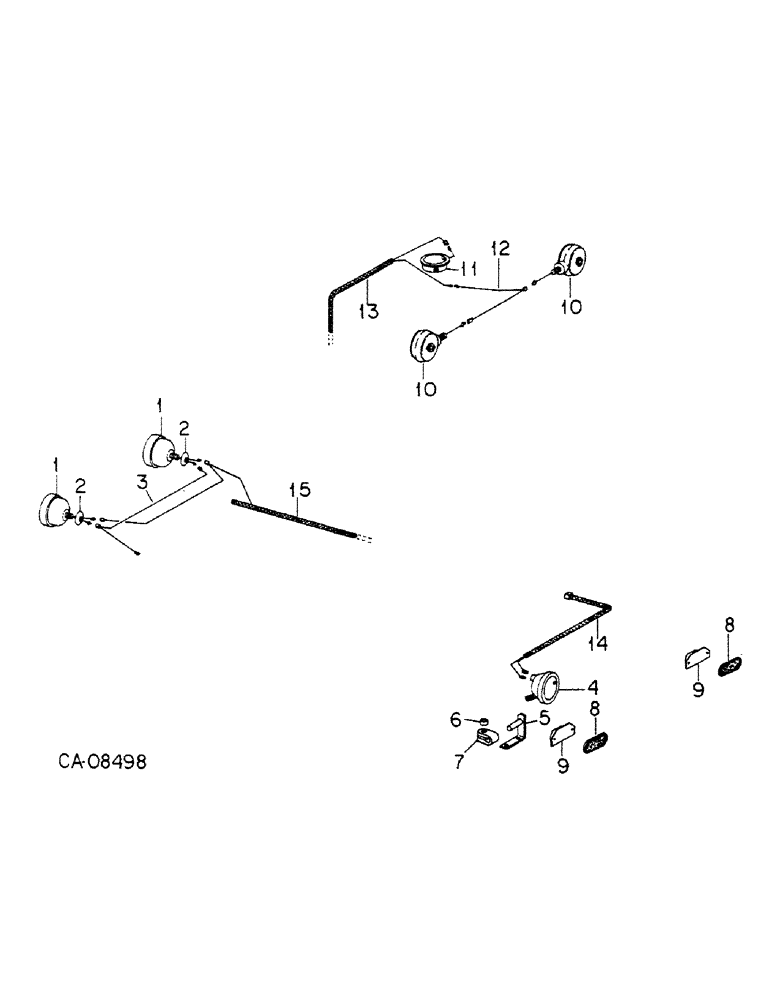

Запчасти Case IH 4366 (08-09) - ELECTRICAL, TRACTOR SAFETY AND HEADLIGHT CONNECTIONS AND MOUNTING, 4366 TRACTORS (06) - ELECTRICAL

1

388945R91

HEADLIGHT

LIGHT ASSY, shockproof head, Only serviceable items are

2шт.

373662R91

LAMP

type C-6 trade #4411 or

1шт.

131508C1

LAMP BASE

LAMP, replacement GE-#H7610

1шт.

676078R1

RETAINER

RING, shockproof light retainer

1шт.

2

388947R1

RETAINER

head lamp

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

3

69435C1

CABLE

ASSY, headlight ground

1шт.

4

387729R92

LIGHT ASSY.

LIGHT ASSY, shockproof combination rear and tail, Only serviceable items are

1шт.

371461R92

LAMP

sealed beam

1шт.

455490

BULB,C-6, #1003, 12V, .94W

LAMP, type C-6 trade #1003

1шт.

676078R1

RETAINER

RING, light retainer, For JW Hobbs light

1шт.

1252609C1

RETAINER

RING, light retainer, For Midwest mfg light

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 ext lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

377105R1

CONNECTOR, ELEC

CONNECTOR, body

1шт.

5

390310R1

SUPPORT ASSY, combination light

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

6

365503R1

SPACER

combination light

1шт.

7

350920R1

CLAMP

combination light mounting

1шт.

8

533092R1

REFLECTOR

red rear

2шт.

163162

SCREW,Self Tap, Cross Pan Hd, #8 - 18 x 1/2"

no. 8-18 x 1/2 cr-res-pan

4шт.

9

69776C1

BRACKET

reflector mounting

2шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

3шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

3шт.

10

67538C92

HEADLIGHT

LIGHT ASSY, flashing warning, Only serviceable items are

2шт.

9417866

BULB,C6, #1156, 12.8V

LAMP

1шт.

69616C1

LAMP

HOUSING

1шт.

394262R1

WASHER

GASKET, warning light

2шт.

120371

NUT,1/2"-20, G5

2шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 ext lock

2шт.

11

70138C92

LIGHT

ASSY, dome

1шт.

132655C1

SPACER

dome light mtg

3шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 znp p/hds mach

3шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

3шт.

12

69445C1

CABLE ASSY.

CABLE ASSY, warning, Serial Range: light-console

1шт.

13

69537C1

HARNESS

ASSY, console

1шт.

14

69448C1

HARNESS

ASSY, rear frame

1шт.

15

69536C1

HARNESS

ASSY, main wire

1шт.

69899C1

CLIP

light switch to head light wire, On bar of grille frame assy

2шт.
