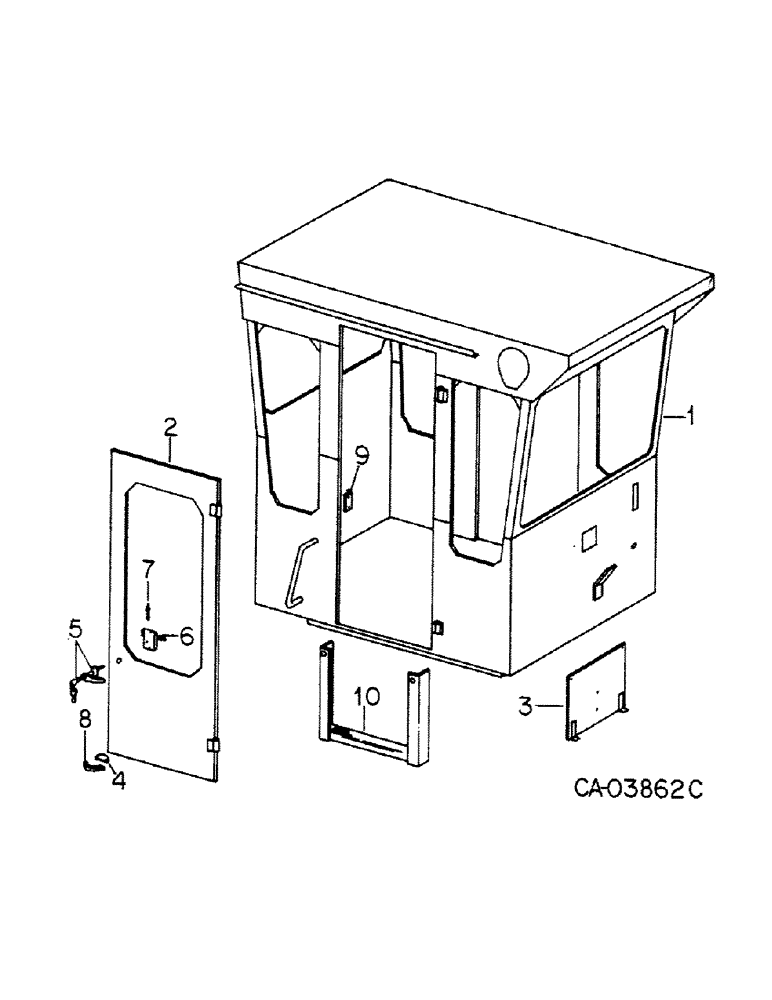

Запчасти Case IH 4366 (13-03) - CAB AND SUPERSTRUCTURE, CAB ASSEMBLY, 4366 TRACTORS (05) - SUPERSTRUCTURE

1

68614C91

CAB

ASSY, Consists of ref nos. 2 and 3

1шт.

2

68615C1

DOOR ASSY, LH, Serial Range: -7873

1шт.

2

70897C1

DOOR

ASSY, LH, Start Serial: 7874

1шт.

2

68616C1

DOOR

ASSY, RH, Serial Range: -7873

1шт.

2

70898C1

DOOR

ASSY, RH, Start Serial: 7874

1шт.

3

68617C91

DOOR

ASSY, access

1шт.

181128

SCREW,Hex, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 x 2-1/2 phc hex-hd cap

2шт.

4

70404C1

PAD

door keeper

2шт.

27705R1

SCREW, 1/4 x 1 self-tap

4шт.

5

147195C1

HANDLE

ASSY, door, Replaces 70092C1 by ordering two handles 147195C1

2шт.

6

70042C1

LATCH

HANDLE ASSY, door inside, Use on LH door of tractors, Serial Range: -7873

1шт.

6

70042C1

LATCH

HANDLE ASSY, door inside, Use on RH door of tractors, Start Serial: 7874

1шт.

6

70043C1

LATCH

HANDLE ASSY, door inside, Use on RH door of tractors, Serial Range: -7873

1шт.

6

70043C1

LATCH

HANDLE ASSY, door inside, Use on LH door of tractors, Start Serial: 7874

1шт.

7

70159C1

RIVET

3/16 x 1/2 pop

6шт.

8

70403C1

PIN

KEEPER, door

2шт.

27705R1

SCREW, 1/4 x 1 self tapping

4шт.

9

70921C1

STOP ASSY, door latch, Start Serial: 7874

2шт.

328400C1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW, 1/4-14 x 3/4 hex-hd tap

4шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER, 1/4 znd ext-tooth lock

4шт.

10

110142C2

STEP

ASSY, mounting

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
