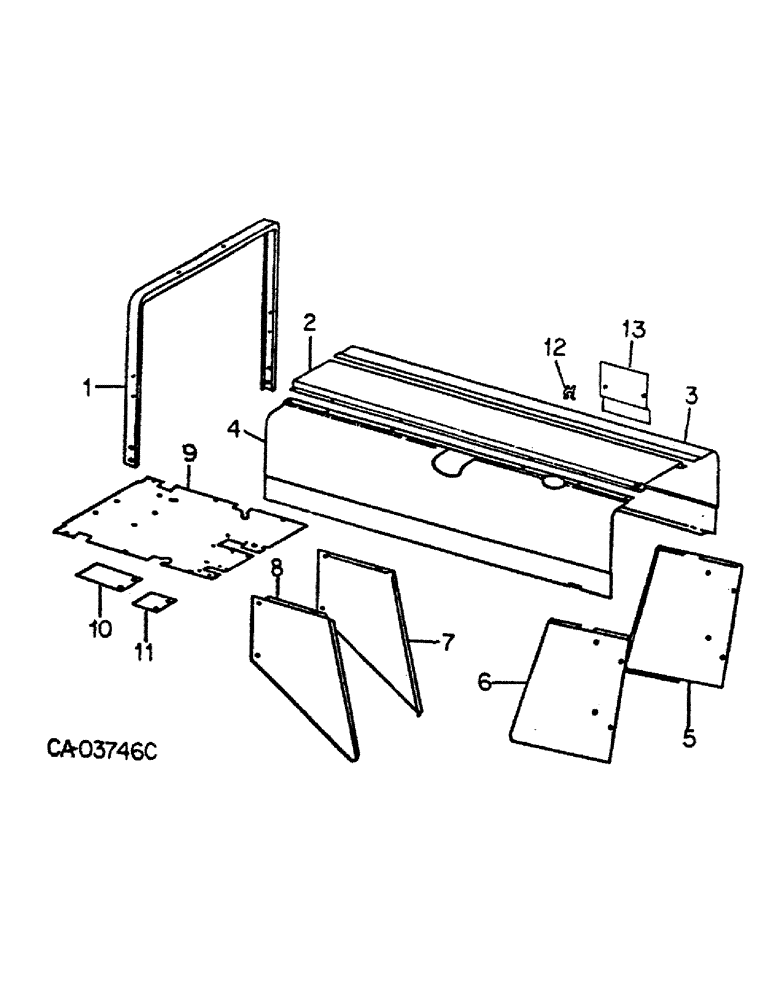

Запчасти Case IH 4366 (13-01) - CAB AND SUPERSTRUCTURE, HOOD AND PANELS, 4366 TRACTORS (05) - SUPERSTRUCTURE

1

114249C1

SHOCK ABSORBER

BRACKET ASSY, rear hood mtg, Replaces 69370C91

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

4шт.

70137C1

NUT

SERT, 5/16-18

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad lock

4шт.

2

68573C1

HOOD

ASSY, top

1шт.

70137C1

NUT

SERT, 5/16-18

7шт.

3

61865C91

HOOD

ASSY, left side, Replaces 68574C1, On orders for 68574C1 furnish 61865C91 hood assy, 61866C1 cover, two 376787R1 retainer and two 377521R3 screw

1шт.

70137C1

NUT

FITTING, 5/16-18

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

8шт.

446470

BRAKE FLUID TANK

.375 x 1.125 x .051 pln

8шт.

4

68575C1

HOOD

right side

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

9шт.

495-81001

WASHER,5/16"

.375 x 1.125 x .051 pln

9шт.

5

68576C1

SKIRT

hood left side

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

4шт.

446470

BRAKE FLUID TANK

.375 x 1.125 x .051 pln

4шт.

6

68577C1

SKIRT

hood right side

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

4шт.

495-81001

WASHER,5/16"

.375 x 1.125 x .051 pln

4шт.

70157C1

NUT

FITTING, 3/8-16

4шт.

7

69371C1

PANEL

left rear side

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

1шт.

446470

BRAKE FLUID TANK

.375 x 1.125 x .051 pln

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 znd

3шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

8

69372C1

PANEL

right rear side

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

1шт.

495-81001

WASHER,5/16"

.375 x 1.125 x .051 pln

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd

1шт.

120376

NUT,5/16"-18, G5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 znd

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

68619C91

PLATFORM

ASSY, Serial Range: -7861

1шт.

9

70376C91

PLATFORM

ASSY, Start Serial: 7862

1шт.

70157C1

NUT

SERT, 3/8-16

4шт.

448453

SCREW,Hex Hd, 1/4" x 1"

1/4-20 x 1 C-Z hex-hd tap

12шт.

10

70378C1

LARGE PLATE

PLATE, platform large cover

1шт.

11

70377C1

PLATFORM

platform small cover

1шт.

12

376787R1

WASHER

RETAINER, hood cover

2шт.

13

61866C1

COVER

front hood

1шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW

2шт.
