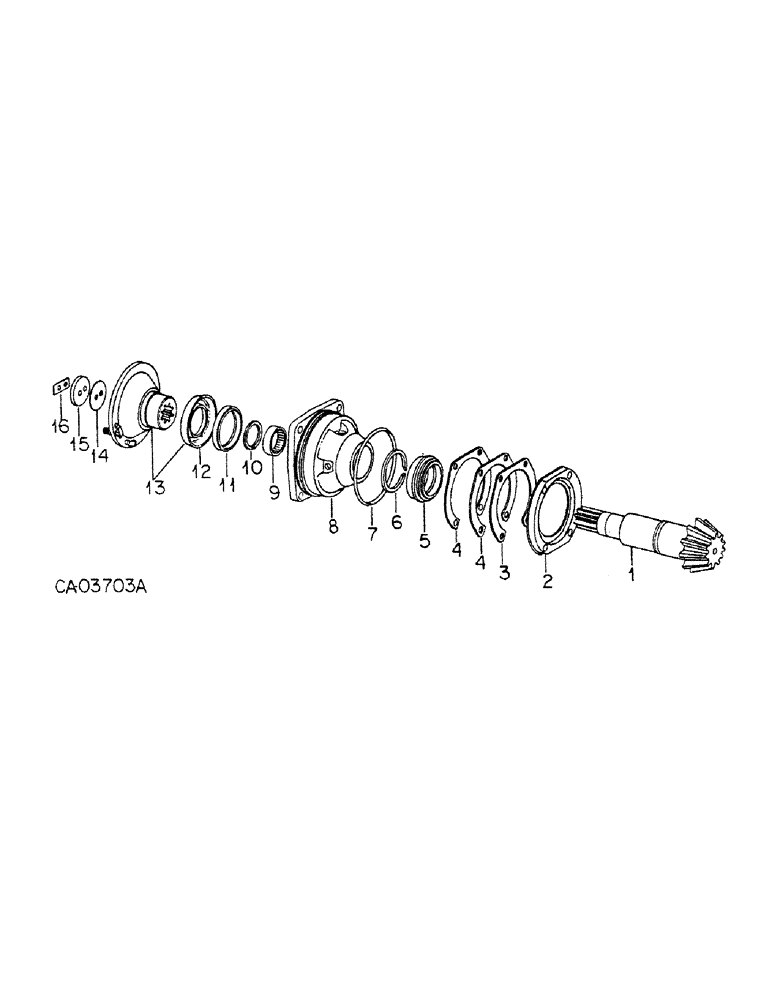

Запчасти Case IH 4366 (07-28) - DRIVE TRAIN, PINION BEARING FRONT, 4366 TRACTOR (04) - Drive Train

1

SHAFT, drive bevel pinion, Not serviceable separately, Order bevel gear set 67919C93

1шт.

2

135771C1

RETAINER

pinion shaft rear brg

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

Pinion shaft brg cage screw Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

3

380283R2

SHIM

pinion shaft brg

1шт.

4

380284R2

SHIM

pinion shaft brg

2шт.

5

67907C91

BEARING ASSY,2.6255" ID x 5.252" OD x 2.687"

ASSY, bevel pinion, 2.625 ID

1шт.

5

110459C91

TAPERED BEARING,63.5mm ID x 133.4mm OD x 70.26mm W

ASSY, bevel pinion, 2.594 ID

1шт.

6

67908C1

RING, SNAP

RING, pinion brg retaining, .163

1шт.

6

67909C1

RING, SNAP

RING, pinion brg retaining, .167

1шт.

6

67910C1

RING, SNAP

RING, pinion brg retaining, .171

1шт.

6

67911C1

RING, SNAP

RING, pinion brg retaining, .175

1шт.

6

67912C1

RING, SNAP

RING, pinion brg retaining, .179

1шт.

7

3061207R1

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/2 x 1/8 pinion shaft cage

1шт.

8

67913C1

CAGE

pinion shaft front brg

1шт.

26314R1

BOLT, 7/16 x 1 phc p/t type 8

4шт.

9

112822R91

NEEDLE BEARING,Needle, 50.78mm ID x 60.31mm OD x 25.4mm W

pinion shaft front

1шт.

10

698553R1

SNAP RING,#175, Ext

Ring, Snap, , companion flange #175, Ext, Serial Range: -9970

1шт.

11

67914C1

SEAL

pinion yoke

1шт.

12

67926C1

SHIELD

companion flange

1шт.

13

68838C91

FLANGE

ASSY W/SHIELD, companion

1шт.

14

67916C1

GASKET

companion flange washer

1шт.

15

67917C1

WASHER

companion flange

1шт.

16

67918C1

LARGE PLATE

PLATE, companion flange lock

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.
