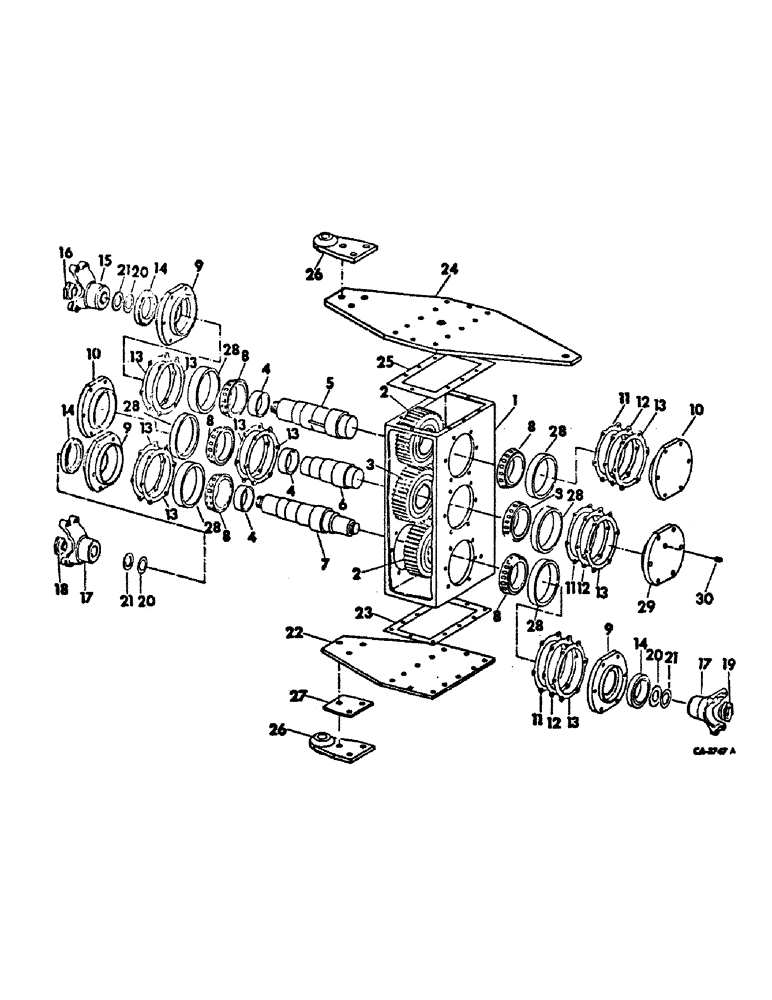

Запчасти Case IH 4366 (07-11) - DRIVE TRAIN, TRANSFER CASE, 4366 TRACTOR (04) - Drive Train

69068C91

CASE

ASSY, transfer, Order case assy, 64506C91, Serial Range: -10264

1шт.

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

FITTING, 3/8 ptf breather type

1шт.

111316

ELBOW

90 deg street

1шт.

64506C91

CASE

ASSY, transfer, Start Serial: 10265

1шт.

1

69069C1

CASE

transfer

1шт.

2

69070C1

GEAR

top and bottom

2шт.

3

69071C1

GEAR WHEEL

GEAR, middle

1шт.

Q55

KEY,3/8" Sq x 2", Par

3/8 x 2 sq parallel

2шт.

4

69072C1

SPACER

gear

3шт.

5

69073C1

SHAFT

top

1шт.

6

69074C1

SHAFT

middle

1шт.

7

69075C1

SHAFT

bottom

1шт.

8

630203C91

TAPERED BEARING

ASSY, cone

6шт.

8

69076C1

CAP

CAGE, bearing and seal

3шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 znd

18шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

18шт.

10

69077C1

CAP

CAGE, bearing, Serial Range: -10264

2шт.

10

69847C1

CAP

CAGE, bearing, cap, Start Serial: 10265

2шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16 x 1-3/4 type 5

12шт.

11

69078C1

SHIM

brg cage gasket, .005, Use 9 or as reqd

1шт.

12

69079C1

SHIM

brg cage gasket, .0075, Use 6 or as reqd

1шт.

13

69080C1

SHIM

brg cage gasket, .020, Use 12 or as reqd

1шт.

14

69367C1

SEAL

SEAL, brg cage

3шт.

15

69081C1

FORK

YOKE, top end

1шт.

16

69082C1

NUT

1-1/4-18 RH thd self locking

1шт.

17

69083C1

YOKE

bottom end

2шт.

18

69082C1

NUT

1-1/4-18 RH thd self locking

1шт.

19

69084C1

NUT

1-1/4-18 LH thd self locking

1шт.

20

69085C1

GASKET

drive yoke

3шт.

21

69086C1

WASHER

drive yoke

3шт.

22

69087C1

LINK

PLATE, bottom link cover

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

12шт.

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG, 1/4-18 C-Z sq-hd pipe

1шт.

23

69088C2

GASKET

bottom link

1шт.

24

69089C1

LINK

PLATE, top link cover

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

8шт.

25

69088C2

GASKET

top link

1шт.

26

69091C1

PLATE ASSY.

PLATE ASSY, transfer case brg, Also order attaching hardware

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

6шт.

495-11081

WASHER,3/4", SAE

.812 x 1.469 x .134 znd

6шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 cad hex.

6шт.

27

69092C1

SHIM

uniball

1шт.

28

630204C1

BEARING CUP

cup

6шт.

29

69847C1

CAP

center bearing 4.328"

1шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16 x 1-3/4 type 5

6шт.

30

20972R1

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 automotive sq-hd pipe

2шт.

132831C91

KIT

PARTS ACCESSORY, transfer case improvement, Consists of

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

127414C1

SPACER

1шт.

127418C1

SHAFT

TOP

1шт.

127419C1

SHAFT

MID.

1шт.

127420C1

SHAFT

BOT.

1шт.

66117R91

BEARING

6шт.

54404R1

BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm

BEARING

6шт.

127421C1

CAGE

3шт.

26315R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

36шт.

127422C1

CYLINDER END CAP

CAP

3шт.

127415C1

SHIM

12шт.

127416C1

SHIM

6шт.

127417C1

SHIM

6шт.

69367C1

SEAL

SEAL

3шт.

127413C1

GASKET

3шт.

69088C2

GASKET

2шт.

390610R1

O-RING,5.109" ID x 0.139" Width

6шт.
