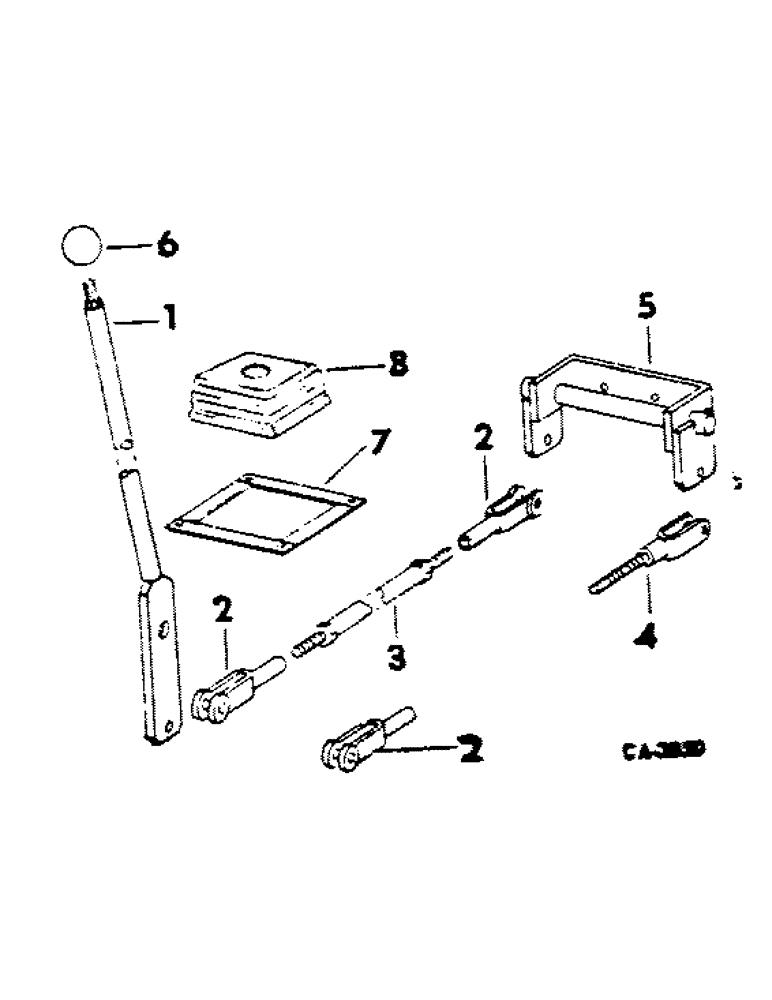

Запчасти Case IH 4366 (07-09) - DRIVE TRAIN, TRANSMISSION CONTROLS, RANGE LEVER, 4366 TRACTOR (04) - Drive Train

1

68582C1

LEVER ASSY, range shift

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

9413971

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 cad lock

1шт.

2

144245

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 C-Z adj rod end

3шт.

137214

COTTER PIN

1/8" x 1-3/4"

4шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

4шт.

3

68583C1

LINKAGE

ASSY, long range shift

1шт.

21063R1

NUT

1/2-20 hex. jam

2шт.

4

68584C1

LINKAGE

ASSY, short range

1шт.

21063R1

NUT

1/2-20 hex. jam

1шт.

5

68585C1

PIVOT

ARM ASSY, pivot

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

2шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074 znd

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cad lock

2шт.

6

70293C1

BUCKET TOOTH KEY

KNOB, shift lever

1шт.

7

68667C1

PLATE

ASSY, shift lever boot

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 znd

8шт.

26095R1

SCREW, 1-1/4 x 1-1/2 phc hex-hd

8шт.

8

70899C1

BOOT

shift lever

2шт.
