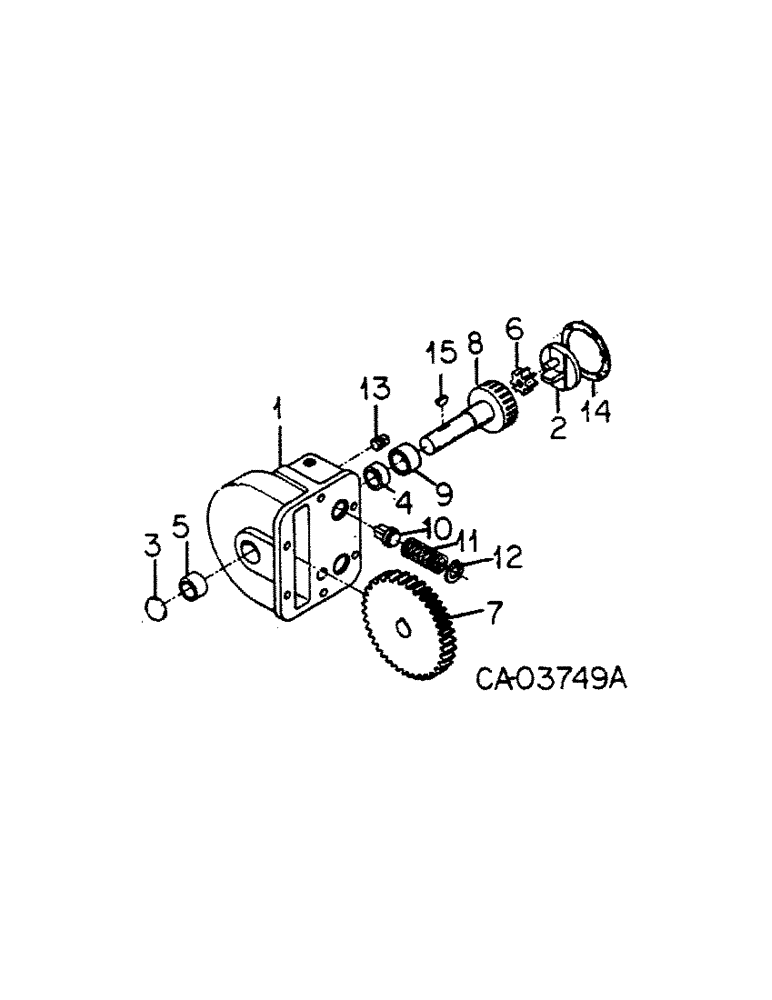

Запчасти Case IH 4366 (07-08[A]) - DRIVE TRAIN, TRANSMISSION OIL PUMP, 4366 TRACTOR (04) - Drive Train

1

HOUSING, Furnish pump assy, 265071C92

1шт.

2

467286C91

COVER ASSY

trans oil pump w/head & pin

1шт.

3

41-16

PLUG,Exp, 1"

1 in. expansion rotor

1шт.

4

313042R1

BUSHING, main

1шт.

5

313043R1

BUSHING

outer

1шт.

6

313037R1

GEAR WHEEL

GEAR, idler

1шт.

7

311996R1

GEAR, drive

1шт.

8

313035R1

ROTOR

1шт.

9

313036R1

SPACER, gear

1шт.

10

313046R1

VALVE

poppet

2шт.

11

313044R1

VALVE SPRING

SPRING, valve

2шт.

12

313147R1

SNAP RING,0.875", Int, #87

Ring, Snap, , valve 0.875", Int, #87

2шт.

13

75215H

PLUG, 3/8 sq pipe

1шт.

14

313038R1

GASKET

oil pump outer head

1шт.

115109

WASHER,1/4"

1/4"

6шт.

25222R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

SCREW, 1/4-20 x 3/4 hex-hd cap, type 8

6шт.

15

124541

WOODRUFF KEY,#1,1/16" x 1/2", HT

KEY, 1/16 x 1/2 Woodruff 1

1шт.
