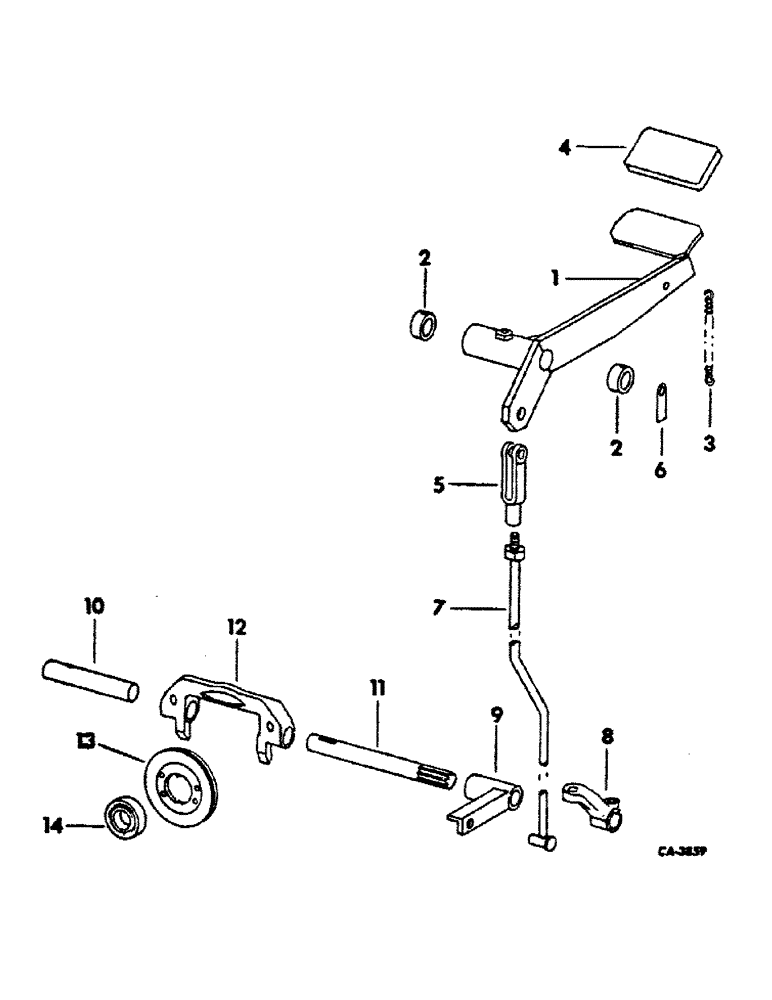

Запчасти Case IH 4366 (07-02) - DRIVE TRAIN, CLUTCH CONTROLS, 4366 TRACTOR (04) - Drive Train

1

68628C1

PEDAL

ASSY, clutch

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

2

610513R1

COLLAR

COLLAR

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 pln c/pt hdl/hs set

2шт.

3

69793C1

VALVE SPRING

SPRING, pedal return

1шт.

4

109656C1

BRAKE PAD

PAD, pedal

1шт.

5

144245

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 C-Z adj rod end

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

2шт.

6

68807C1

TAG, clutch adj. warning

1шт.

7

68668C1

ROD

ASSY, clutch

1шт.

8

68818C91

ARM ASSY.

ARM ASSY, clutch pedal adj, Consists of

1шт.

983810R1

LEVER

1шт.

110096

BOLT

1шт.

102637

NUT,1/2"-13, G5

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4 pln type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

9

68817C1

BRACKET

LEVER, clutch

1шт.

10

697927R1

SHAFT

clutch release, short, Replaces 68815C1

1шт.

11

68816C1

SHAFT

clutch release, long

1шт.

12

13-79

YOKE

clutch release

1шт.

32796VA

WASHER

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

13

DISC ASSY, brake, Refer to clutch listing in this group

1шт.

14

69983C91

BEARING ASSY,29.99mm ID x 72mm OD x 19mm W

clutch pilot

1шт.
