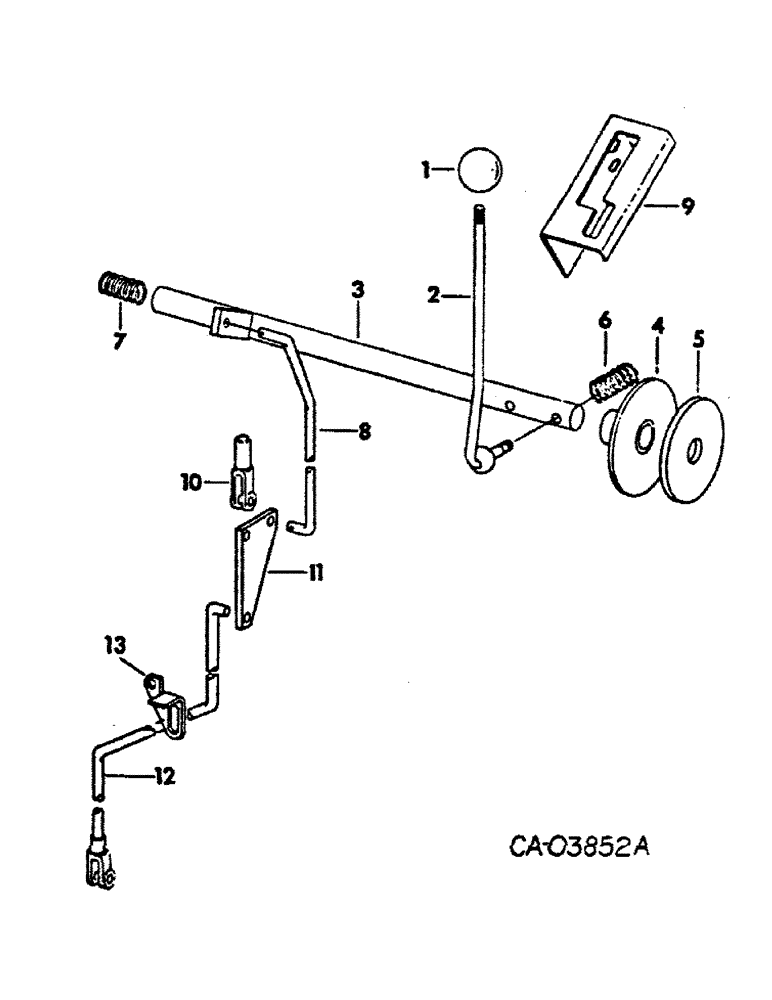

Запчасти Case IH 4366 (12-07) - POWER, ENGINE SPEED CONTROLS, 4366 TRACTORS Power

1

69427C1

KNOB

throttle

1шт.

2

69421C1

CLAMP

LEVER ASSY, throttle

1шт.

3

69422C1

ROD

ASSY, throttle control

1шт.

4

69423C1

LARGE PLATE

PLATE ASSY, throttle friction

1шт.

5

69424C1

LARGE PLATE

PLATE, throttle friction

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad lock

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

2шт.

231-4617

LOCK NUT,7/16"-20, GB

NUT, 7/16-20 cad lock

1шт.

NLS

NO LONGER SERVICED

15/32 x 59/64 x .051 znd

1шт.

6

69425C1

SPRING

throttle lever

1шт.

7

69426C1

SPRING

throttle friction

1шт.

8

69429C1

ROD

throttle bellcrank

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

5шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 znd

4шт.

9

70123C1

CHECK VALVE

PLATE, throttle lever guide

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

3шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

144242

CLEVIS

5/16-24 C-Z adj rod end

1шт.

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN, 5/16 x 15/16 znd clevis

1шт.

181608

BOLT,Hex, 5/16" - 24 x 1", Gr 5

SCREW, 5/16-24 x 1 znd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

69430C1

CRANK

BELLCRANK, throttle

1шт.

12

69431C91

CRANK

ROD ASSY, bellcrank to engine throttle, Includes nut and clevis

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 znd hex

1шт.

116383

CLEVIS

1/4-28 C-Z adj rod end

1шт.

138083

PIN

1/4 x 49/64 znd clevis

1шт.

13

533588R1

GUIDE

governor control rod

1шт.

179814

SPACER

1шт.
