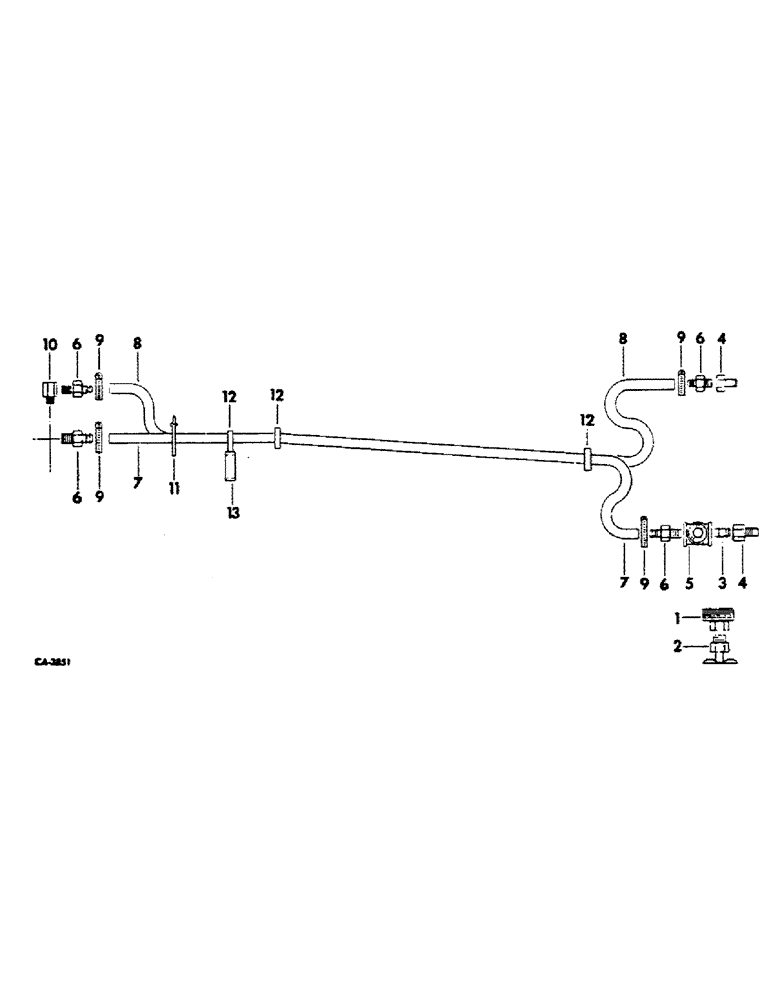

Запчасти Case IH 4366 (12-05) - POWER, FUEL PIPES AND CONNECTIONS, 4366 TRACTORS Power

1

24180R1

ADAPTER,1 1/2" NPT Male x 1/4" NPT Fem

1-1/2-1/4 cad reducing pipe

1шт.

2

103647

VALVE

COCK, 1/4 drain

1шт.

3

192050

NIPPLE, LUBE,Nipple, 1/4" NPT x 7/8"

NIPPLE, 1/4 npt

1шт.

4

444339

BUSHING

1/2-14 x 1/4-12 automotive reducing pipe

2шт.

5

70153C91

VALVE

1/4 shut-off gate

1шт.

6

70090C1

FITTING

ADAPTER, male pipe

4шт.

7

69418C1

HOSE

fuel suction

1шт.

8

HOSE, 3/8 fuel return, Use 102 in. of 3/8 hose from bulk roll marked 706670C1

1шт.

9

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

4шт.

10

NLS

NO LONGER SERVICED

ELBOW, 1/4 npt 90 deg pipe

1шт.

11

289862C1

CABLE TIE,3/16" x 7"

TIE, hose

1шт.

12

70231C1

CLAMP, double hose

3шт.

436699

SCREW,Slotted Pan Hd, #8-32 x 1"

8-32 x 1 slt-pan-hd

3шт.

107378H

NUT,#8-32, G5

8-32 nylon insert hex

3шт.

13

69420C1

BRACKET, fuel line hose

1шт.
