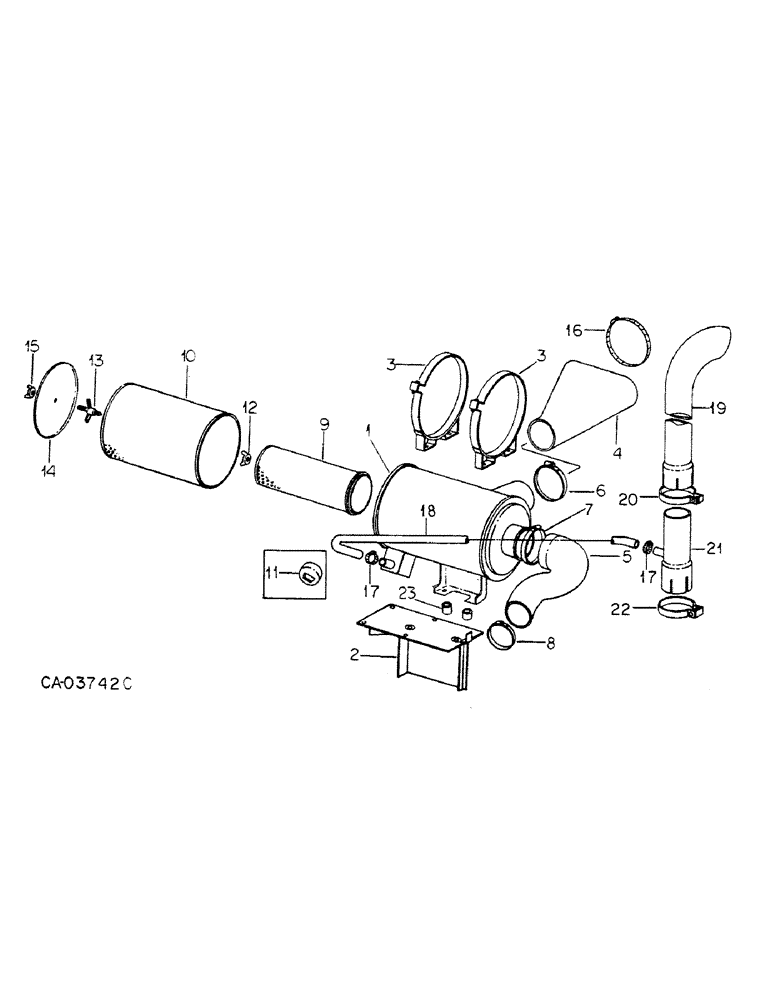

Запчасти Case IH 4366 (12-03) - POWER, AIR CLEANER AND EXHAUST CONNECTIONS Power

1

67935C91

CLEANER

ASSY, air - 12 inch dia, 4386 tractors, Consists of ref nos. 9, 10, 11, 12, 13, 14 and 15, Serial Range: -2500

1шт.

1

67935C91

CLEANER

ASSY, air - 12 inch dia, All 4366 tractors, Consists of ref nos. 9, 10, 11, 12, 13, 14 and 15

1шт.

1

146578C91

CLEANER

Assy, air, 4586 tractors, Start Serial: 2501

1шт.

67975C1

AIR FILTER

ELEMENT

1шт.

67974C4

AIR FILTER

ELEMENT

1шт.

67980C2

LATCH

ASSY

1шт.

2

67936C2

ASSEMBLY

BRACKET ASSY, air cleaner, 4386 tractors, Start Serial: 2501

1шт.

179902

BOLT,Hex, 9/16" - 12 x 1", Gr 5

SCREW, 9/16-12 x 1 hex-hd cap

1шт.

NLS

NO LONGER SERVICED

19/32 x 1-3/16 x 13 ga

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.

3

259922C91

BAND

CLAMP, air cleaner mounting - band, 4386 tractors, Start Serial: 2501

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd cap

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .067

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

5/16-18 hex

2шт.

4

70429C1

HOSE

ASSY, air cleaner intake, 4366 tractors

1шт.

4

67944C1

HOSE

ASSY, air cleaner intake, 4386 tractors

1шт.

5

67945C1

INTAKE AIR HOSE,3.00" ID, 4.00" ID x 7.70"

- Air cleaner outlet 3.00" ID, 4.00" ID x 7.70"

1шт.

6

538122R1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm, W/liner

CLAMP, intake hose - rear

1шт.

7

146570C1

CLAMP

outlet hose - front, Replaces 397270R1

1шт.

8

146569C1

CLAMP

outlet hose - rear, Replaces 400446R1

1шт.

9

702642C1

AIR CLEANER

ELEMENT, safety, 4386 tractors, Start Serial: 2501

1шт.

10

702641C1

ELEMENT

filter, 4386 tractors, Start Serial: 2501

1шт.

11

383734R2

VALVE

unloader

1шт.

12

69059C1

NUT

wing - safety element, 4386 tractors, Start Serial: 2501

1шт.

13

69058C1

BOLT

BOLT ASSY, wing, 4386 tractors, Start Serial: 2501

1шт.

14

69060C1

COVER ASSY

4386 tractors, Start Serial: 2501

1шт.

15

126032

WING NUT,3/8"-16

NUT, 3/8-16 znd wing - cover assy, 4386 tractors, Start Serial: 2501

1шт.

16

427313R91

HOSE CLAMP,#116, 6.88/7.75 Type F Worm

CLAMP, intake hose front, Used w/67944C1

1шт.

17

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, hose, 4386 tractors, Serial Range: -2500

2шт.

17

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, hose, all 4366 tractors

2шт.

18

146581C1

HOSE, aspirator, 4386 tractors, Serial Range: -2500

1шт.

18

146581C1

HOSE, aspirator, all 4366 tractors

1шт.

19

146490C2

PIPE

exhaust elbow, 4386 tractors, Serial Range: -2500

1шт.

19

146490C2

PIPE

exhaust elbow, all 4366 tractors

1шт.

20

530925R1

CLAMP,88.9mm - 92.71mm

exhaust pipe extension, 4386 tractors, Serial Range: -2500

1шт.

20

530925R1

CLAMP,88.9mm - 92.71mm

exhaust pipe extension, all 4366 tractors

1шт.

21

147188C2

PIPE

exhaust w/aspirator, 4386 tractors, Serial Range: -2500

1шт.

21

147188C2

PIPE

exhaust w/aspirator, all 4366 tractors

1шт.

22

402314R91

CLAMP,94.16mm - 97.21mm

exhaust pipe ext, 4386 tractors, Serial Range: -2500

1шт.

22

402314R91

CLAMP,94.16mm - 97.21mm

exhaust pipe ext, all 4366 tractors

1шт.

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

1шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25522R1

NUT,3/8"-16, G8

3/8 phc type 8

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 phc hdn

2шт.

23

70124C1

SPACER

air cleaner mtg, 4386 tractors, Serial Range: -2500

2шт.

23

70124C1

SPACER

air cleaner mtg, 4366 tractors

2шт.

179912

BOLT,Hex, 9/16" - 12 x 2 1/2", Gr 5

9/16 x 2-1/2 pln type 5

1шт.

103344

.594 x 1.156 x .074 pln

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.
