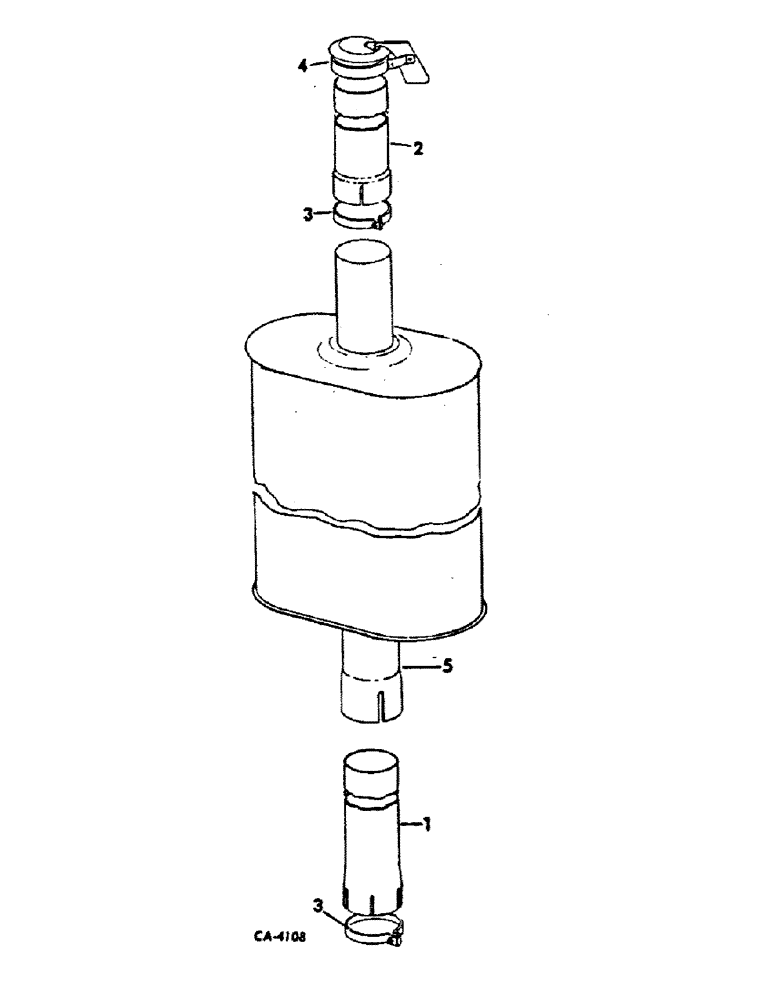

Запчасти Case IH 4366 (12-02) - POWER, EXHAUST SYSTEM, 4386 TRACTORS WITH SERIAL NO. 2500 AND BELOW, ALL 4366 TRACTORS Power

1

402313R1

TUBE

PIPE, exhaust

1шт.

2

538946R1

PIPE

exhaust extension

1шт.

2

530819R1

TUBE

PIPE, exhaust extension, Used w/muffler only

1шт.

3

402314R91

CLAMP,94.16mm - 97.21mm

exhaust pipe extension

2шт.

3

530925R1

CLAMP,88.9mm - 92.71mm

exhaust ext. pipe, Used w/muffler only O/A LENGTH IS 15.0"

1шт.

181116

SCREW,Hex, 3/8" - 16 x 1 1/2"

3/8-16 x 1-1/2 phc hex

1шт.

118615

STUD

NUT, 3/8-16 hex

1шт.

115093

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

321576R91

CYLINDER END CAP

CAP ASSY, exhaust

1шт.

4

321863R91

CAP

ASSY, exhaust, Used w/muffler only

1шт.

5

534546R6

MUFFLER

exhaust

1шт.

68218C91

CLAMP

PACKAGE, muffler clamp service, Consists of

1шт.

NSS

NOT SOLD SEPARAT

CLAMP

1шт.

NSS

NOT SOLD SEPARAT

U-BOLT

1шт.

535993R1

NUT

1шт.
