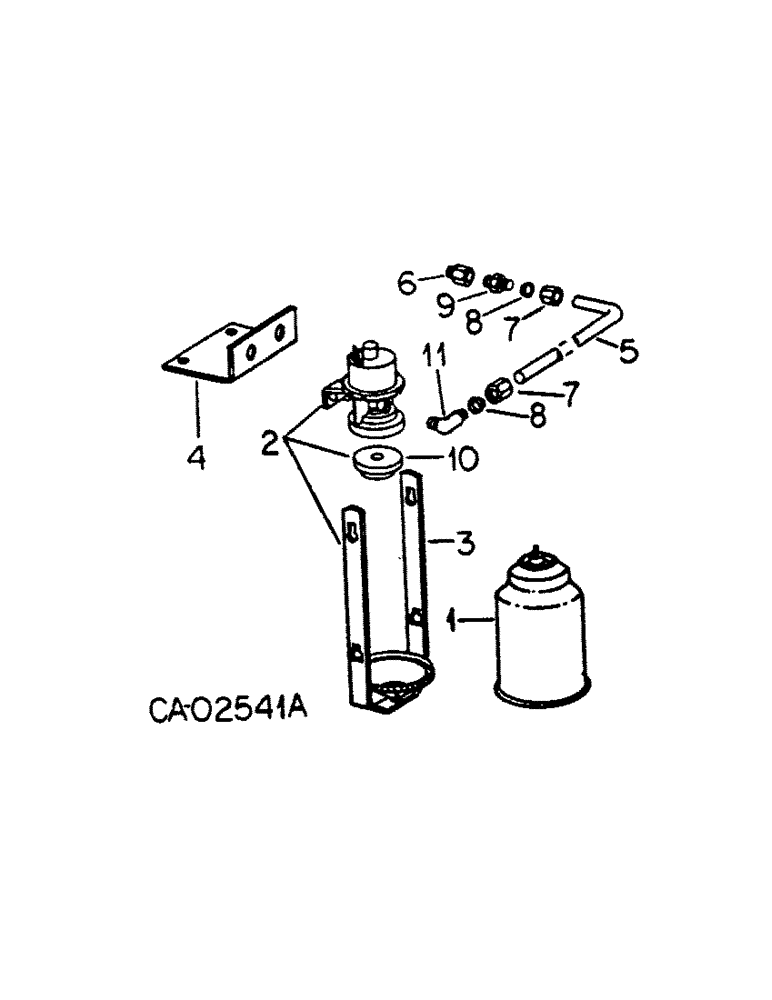

Запчасти Case IH 4366 (12-01) - POWER, ETHER STARTING Power

1

385064R91

FLUID

ether starting 12 oz can

1шт.

2

533231R92

SOLENOID

ASSY, ether injection, Replaces 393719R92, Consists of ref nos. 3 & 10

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

13/32 x 11/16 x .051

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

3

121851C1

RETAINER

BAIL ASSY, injector

1шт.

4

538012R2

BRACKET

ether starting solenoid, 4366 tractors only

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

TUBE ASSY, ether solenoid to manifold, Use 10-3/4 in of 1/8 OD copper tubing from 50 ft roll marked 995059R1 and two 121220 nuts and two 121322 sleeves

1шт.

299402C1

CLAMP

ether tube

1шт.

6

269635R91

NOZZLE CAP

NOZZLE, starting fluid

1шт.

7

121220

TUBE NUT

NUT, tube connector

2шт.

8

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

2шт.

9

140285

X

CONNECTOR ASSY, 1/8 ball sleeve - tube nozzle

1шт.

10

395686R1

GASKET

ether starting injector

1шт.

11

140304

ELBOW

1/8-27 90 deg ball sleeve tube

1шт.
