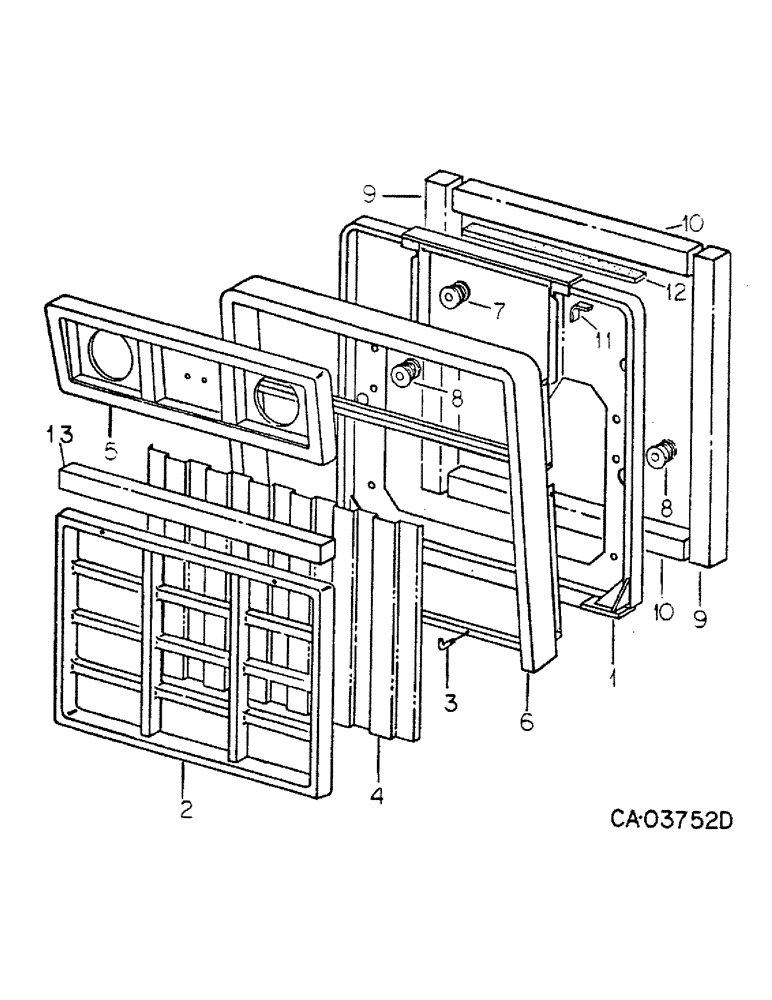

Запчасти Case IH 4366 (06-03) - COOLING, GRILLE, SUPPORT, SHUTTER AND SCREEN Cooling

1

68567C2

SHIELD

ASSY, Chaff, 4366 tractors

1шт.

1

127650C1

SHIELD

ASSY, Chaff, 4386 tractors

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cad lock

4шт.

70137C1

NUT

SERT, 5/16-18

8шт.

120396

WASHER

17/32 x 1-1/16 x .074 znd

8шт.

2

68569C1

GRILLE

ASSY

1шт.

3

68570C1

BOLT,5/16" - 18 x 3.78"

grille mtg bottom

2шт.

189298

BOLT,Hex, 5/16" - 18 x 4", Gr 5

SCREW, 5/16-18 x 4 znd

2шт.

69368C1

WASHER

grille rubber

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 znd

2шт.

120376

NUT,5/16"-18, G5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd, 4366 tractor

8шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

4

68571C1

GRILLE

SCREEN, grille

1шт.

5

69356C2

SUPPORT

headlight

1шт.

24201R1

SELF-TAP SCREW,1/4" - 14 x 1"

SCREW, 1/4-14 x 1 C-Z hex-hd tap

4шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

69357C1

FUNNEL

FRAME ASSY, grille

1шт.

7

69794C1

GROMMET

small, 4366 tractors

1шт.

8

70291C1

GROMMET,1" ID x 1 3/8" Groove Dia

Chaff shield, used w/68567C2

2шт.

8

70291C1

GROMMET,1" ID x 1 3/8" Groove Dia

Chaff shield, used w/127650C1

3шт.

9

GASKET, foam, req'd for 4366 tractor, Furnish 28 in. from 4 ft. length marked 73212C1

2шт.

9

GASKET, foam, req'd for 4386 tractor, Furnish 28 in. from 4 ft. length marked 73212C1

3шт.

10

GASKET, foam, 4366 tractors, Furnish 26.5 in. from a 4 ft. length marked 73220C1

2шт.

10

GASKET, foam, 4386 tractors, Furnish 28 in. from a 4 ft. length marked 73215C1

1шт.

11

127691C1

STRIP

air inlet side, 4386 tractors only

2шт.

12

127692C1

STRIP

air inlet top, 4386 tractors only

1шт.

13

GASKET, foam, 4386 tractors, Furnish 36 in. from a 4 ft. length marked 73215C1

1шт.
