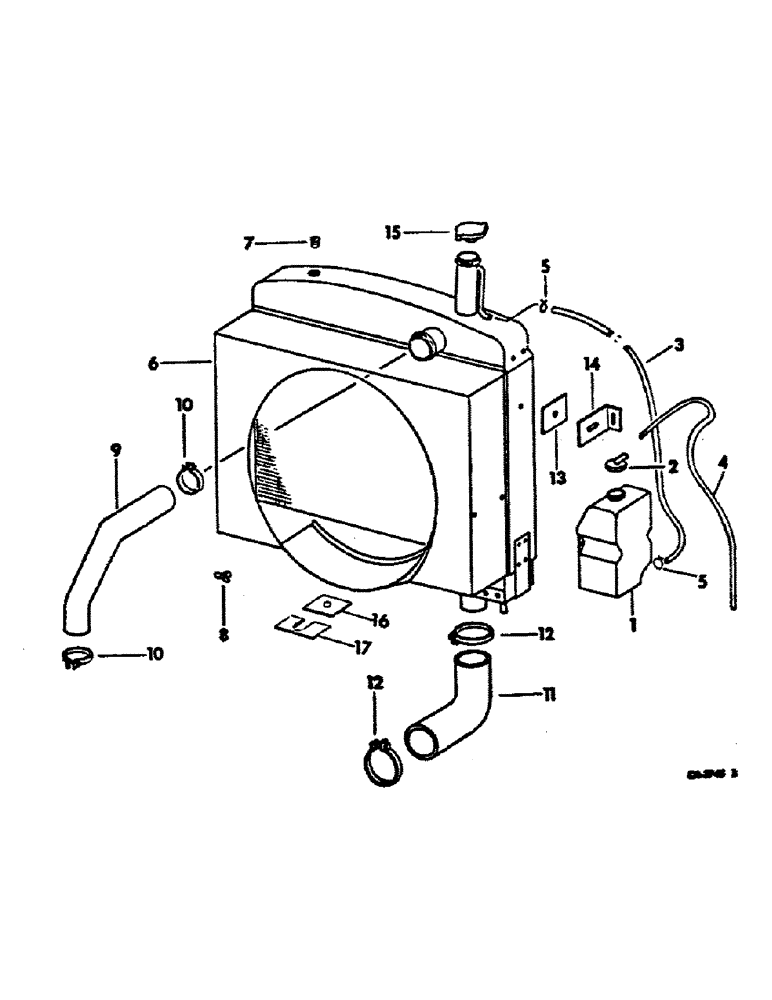

Запчасти Case IH 4366 (06-01) - COOLING, RADIATOR AND CONNECTIONS, 4366 TRACTOR Cooling

1

437703C1

TANK

reservoir

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

120392

WASHER,1/4", SAE

1/4 x 5/8 x .051 znd

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

2

437702C1

CAP

radiator coolant reservoir

1шт.

3

68694C3

RADIATOR HOSE,0.31" ID x 34.00"

Radiator to Reservoir 0.31" ID x 34.00"

1шт.

4

68694C3

RADIATOR HOSE,0.31" ID x 34.00"

Radiator to Reservoir Overflow, Can use 68696C1 w/two clamps, 279025R91 0.31" ID x 34.00"

1шт.

5

70152C1

HOSE CLAMP

CLAMP, hose

2шт.

6

70914C1

RADIATOR W/FILLER CAP, Replaces 69414C1

1шт.

7

444630

PLUG,Hex Hd, 1/2"-14

1/2-14 auto hex-hd pipe

1шт.

8

103647

VALVE

1/4 npt radiator drain

1шт.

9

69410C1

HOSE,2.50" ID x 16.00", SAE 20R4 Class R

Water Return 2.50" ID x 16.00", SAE 20R4 Class R

1шт.

10

202626H1

CLAMP

2-5/8 hose

2шт.

11

69411C1

FLEXIBLE HOSE

HOSE, water suction

1шт.

12

613625C91

CLAMP

3-5/8 hose, Replaces 25441R1 clamp 3-1/2

2шт.

13

114261C1

PAD

MOUNT, radiator pad

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .074 znd

2шт.

14

69413C1

ANCHOR

MOUNT, radiator

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

15

130704C1

CAP

radiator pressure, Replaces 70413C1 and 105168C1

1шт.

16

114261C1

PAD

MOUNT, radiator bottom pad

2шт.

17

71272C1

SHIM

radiator, 2 or as required

1шт.
