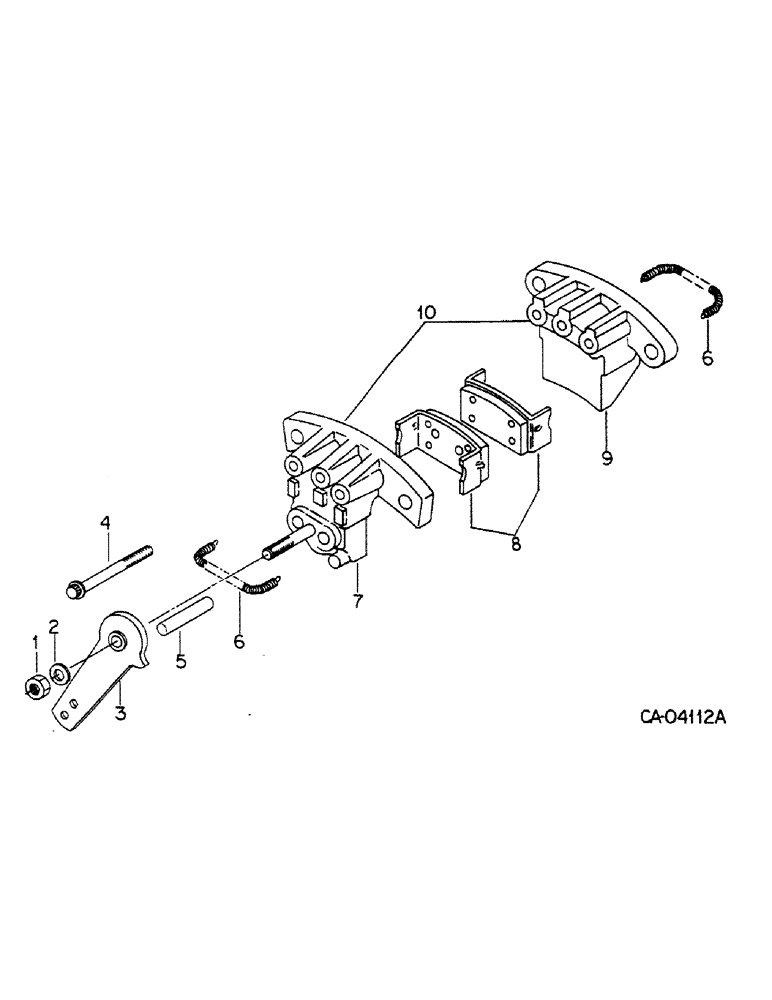

Запчасти Case IH 4366 (04-12) - BRAKES, HAND BRAKE CALIPER, 4386 TRACTORS WITH SERIAL NO. 2100 AND BELOW, ALL 4366 TRACTORS (5.1) - BRAKES

69896C95

CALIPER

ASSY, hand brake, For service replacement furnish caliper brake assy 146909C91

1шт.

1

9412230

LOCK NUT

1/2-13 phc hex. lock, Use on caliper assy 69896C94

1шт.

1

146696C1

NUT, 1/2-13 hex slotted castle, Use on caliper assy 59896C95

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

2

70421C1

WASHER

flat

1шт.

3

146695C1

CAM

Replaces 70422C1

1шт.

4

70423C1

SCREW

3/8-16 x 3-1/2 12 pt, Used with housing, 70426C1 and housing, 70428C1 only

3шт.

5

70424C1

PIN

push

2шт.

6

70425C1

SPRING

tension

2шт.

7

HOUSING, cam side, Furnish hand brake caliper housing, 138676C1

1шт.

8

114227C1

BRAKE

HOLDER ASSY, parking brake pad, Replaces 70427C1

1шт.

9

HOUSING, carrier side, Furnish hand brake caliper housing, 138676C1

1шт.

10

138676C1

HOUSING

ASSY, hand brake caliper, For service replacement order caliper brake assy, 146909C91

1шт.
