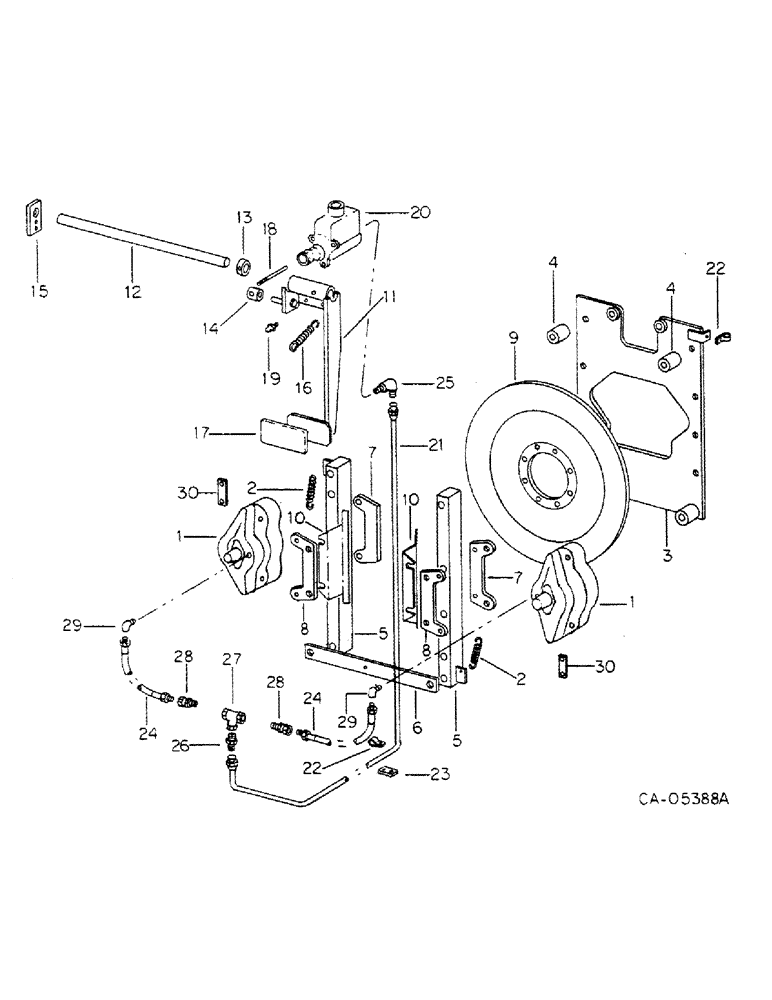

Запчасти Case IH 4366 (04-03) - BRAKES, MASTER BRAKE & CONTROLS, TRACTORS W/DUAL CALIPER BRAKE SYSTEM (5.1) - BRAKES

1

69841C93

BRAKE

CALIPER ASSY, brake, For components, see list of parts under details of caliper brakes

2шт.

2

110495C1

VALVE SPRING

SPRING, caliper

2шт.

3

64728C2

PLATE ASSY.

PLATE ASSY, brake mounting, Replaces 71615C1

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

9413969

NUT,5/8"-11, GB

5/8-11 hex prevailing torque lock

2шт.

4

69463C1

SPACER

brake mounting

1шт.

5

69464C2

BAR

ASSY, brake mounting

2шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW, 5/8-11 x 6 znd hex-hd cap

2шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4-3/4 hex-hd cap

2шт.

6

116900C1

BRACKET

brake line support

1шт.

7

69465C3

PLATE ASSY.

PLATE, brake back

2шт.

8

69466C3

PLATE ASSY.

PLATE, brake front

2шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 znd hex-hd cap

4шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2-13 x 3-1/4 hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120390

WASHER,1/2"

17/32 x 1-3/8 x .074 znd

4шт.

9

71616C1

DISC

brake

1шт.

10

69919C1

SHIELD

master brake

2шт.

11

68627C1

PEDAL

ASSY, brake

1шт.

12

68629C1

SHAFT

brake and clutch control

1шт.

13

610513R1

COLLAR

COLLAR

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 hex-soc-hd cup-pt set

1шт.

14

68630C1

PIVOT

push rod

1шт.

15

68631C1

STOP

end control

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

1шт.

24764R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 zn nylon insert

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

16

69793C1

VALVE SPRING

SPRING, pedal return

1шт.

17

109656C1

BRAKE PAD

PAD, pedal

1шт.

18

68632C2

PUSH ROD

ROD, brake master cylinder push

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , PTF, Straight 1/4"-28 NPT x .54" lg

1шт.

20

70135C91

MASTER CYLINDER

CYLINDER ASSY, master

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

21

118802C1

TUBE

ASSY

1шт.

22

299399C1

CLIP

CLAMP, 1/4 phc closed

3шт.

436699

SCREW,Slotted Pan Hd, #8-32 x 1"

8-32 x 1 slt pan-hd mach

3шт.

446143

WASHER

3/16 x 3/8 x .036 znd

3шт.

120622

NUT,#8-32

3шт.

23

69461C1

BRACKET

brake tube clamp

1шт.

24

69775C1

HOSE

ASSY, brake line

2шт.

25

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1/8-27 45 deg flared tube

1шт.

26

118748

CONNECTOR, ELEC

CONNECTOR, 1/8 NPT x 45 deg flared tube

1шт.

27

9409935

TEE,1/8"-27 NPTF Fem

1/8-27 auto

1шт.

28

294134R1

CONNECTOR, ELEC

FITTING, internal-external swivel

2шт.

29

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1/8-27 auto 90 deg pipe

2шт.

30

104527C1

CLIP, spring

1шт.
