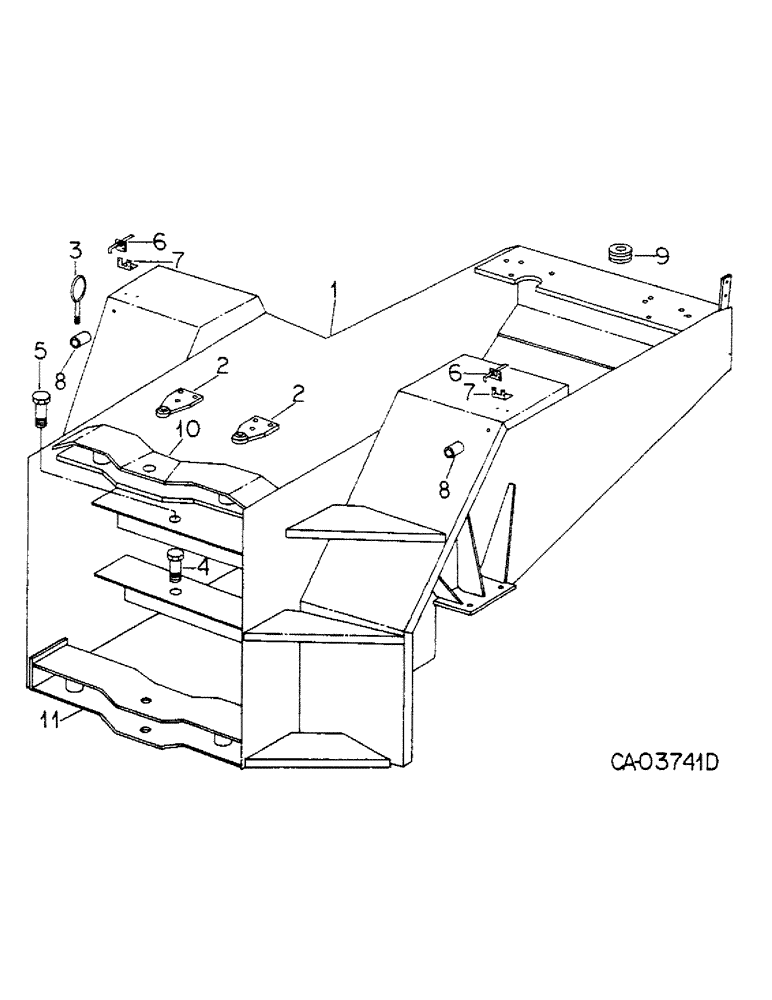

Запчасти Case IH 4366 (09-01) - FRAME, FRONT FRAME, 4366 TRACTOR (12) - FRAME

1

68564C92

FRAME ASSY

front, Consists of, Serial Range: -7715

1шт.

68565C2

PLATE ASSY.

PLATE

2шт.

20670R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

SCREW

6шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

12шт.

359793C1

NUT,3/4"-10, GC

6шт.

NSS

NOT SOLD SEPARAT

FRAME

1шт.

1

124590C92

FRAME ASSY

front, Consists of, Start Serial: 7716

1шт.

68565C2

PLATE ASSY.

PLATE

2шт.

20670R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

SCREW

6шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

12шт.

359793C1

NUT,3/4"-10, GC

6шт.

NSS

NOT SOLD SEPARAT

FRAME

1шт.

2

68565C2

PLATE ASSY.

PLATE ASSY, steering

2шт.

20670R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

3/4 x 3 pln type 8

6шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

.812 x 1.500 x .134 hdn

12шт.

359793C1

NUT,3/4"-10, GC

3/4 cad p/t lock type 8

6шт.

3

68605C1

RING

ASSY, rear hose

1шт.

4

463154R2

BOLT

BOLT, lower transfer case mount

1шт.

5

70188C1

BOLT (SPREADER),1"-14 x 5.62"

BOLT, top transfer case mount

1шт.

272338

NUT

1-14 znd slt thick hex.

2шт.

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1-1/16 x 2 x .108 znd

2шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

6

70402C1

HOLDER

door w/handle, Also furnish hardware

2шт.

NLS

NO LONGER SERVICED

10-32 x 1/2 zn slt-f-hd

8шт.

7

70823C1

BRACKET, holder, Serial Range: -7873

2шт.

7

70969C1

ANCHOR

BRACKET, holder, Start Serial: 7974

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 znd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

8

114262C1

INSERT

STOP, rubber door

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 znd

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16

2шт.

9

70220C1

GROMMET

Used w/evaporator to condensor hose

1шт.

10

129049C1

LARGE PLATE

PLATE, top hinge service

1шт.

11

129050C1

POWER ARM

LINK ASSY, lower hinge

1шт.
