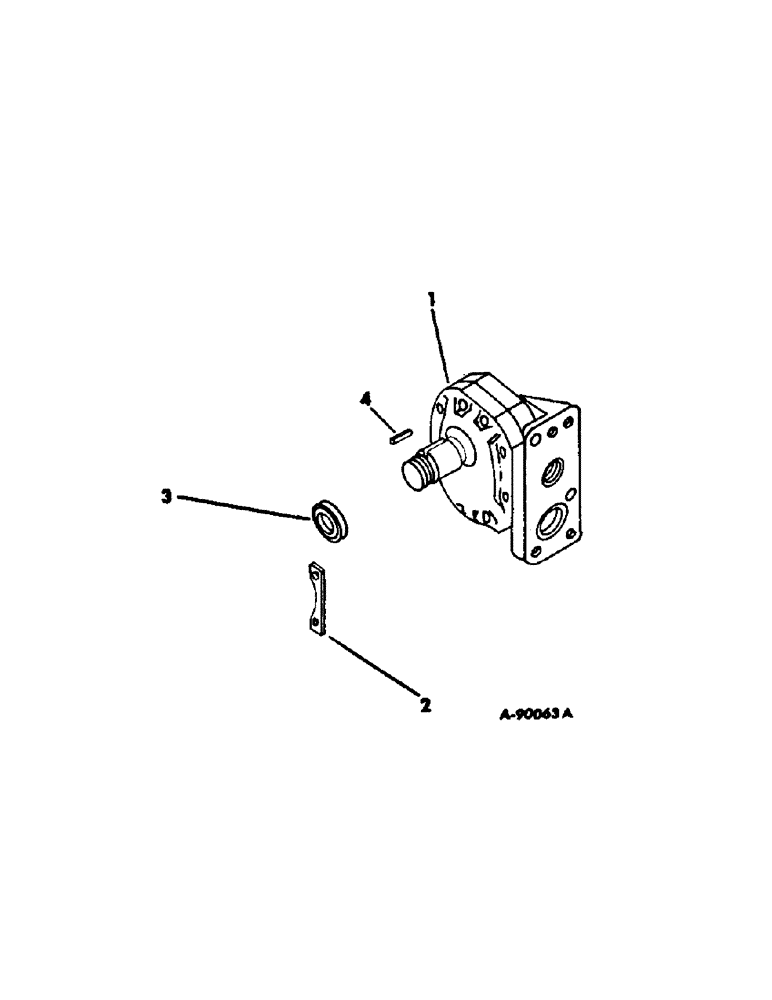

Запчасти Case IH 4186 (10-04) - HYDRAULICS, HYDRAULIC PUMP, CESSNA, 9 GPM (07) - HYDRAULICS

1

527397R93

PUMP

ASSY, hydraulic, optional w/133440C92

1шт.

1

1949304C1

REMAN-HYD PUMP

4166 (1/72-12/72), 4186 (1/76-12/79), Both INTERNATIONAL 4WD DIESEL TRACTOR, ASSY, hydraulic pump, CESSNA, 9 GPM

1шт.

1

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

*

528174R1

SCREW

5/16-18 x 1 special hex-hd cap, pump cover

2шт.

2

531530R1

LARGE PLATE

PLATE, washer

1шт.

3

383534R91

OIL SEAL

pump drive shaft

1шт.

4

383539R1

KEY

pump drive shaft

1шт.

*

63687C2

SEAL KIT

PACKAGE, hydraulic pump o-ring & gasket, replaces 383530R93, consists of

1шт.

*

DIAPHRAGM (NSS)

1шт.

*

GASKET (NSS), nomex

1шт.

*

GASKET (NSS), steel

1шт.

*

PLATE (NSS)

1шт.

*

SEAL (NSS)

1шт.

*

SEAL (NSS)

1шт.

*

SHEET (NSS), instruction

1шт.
