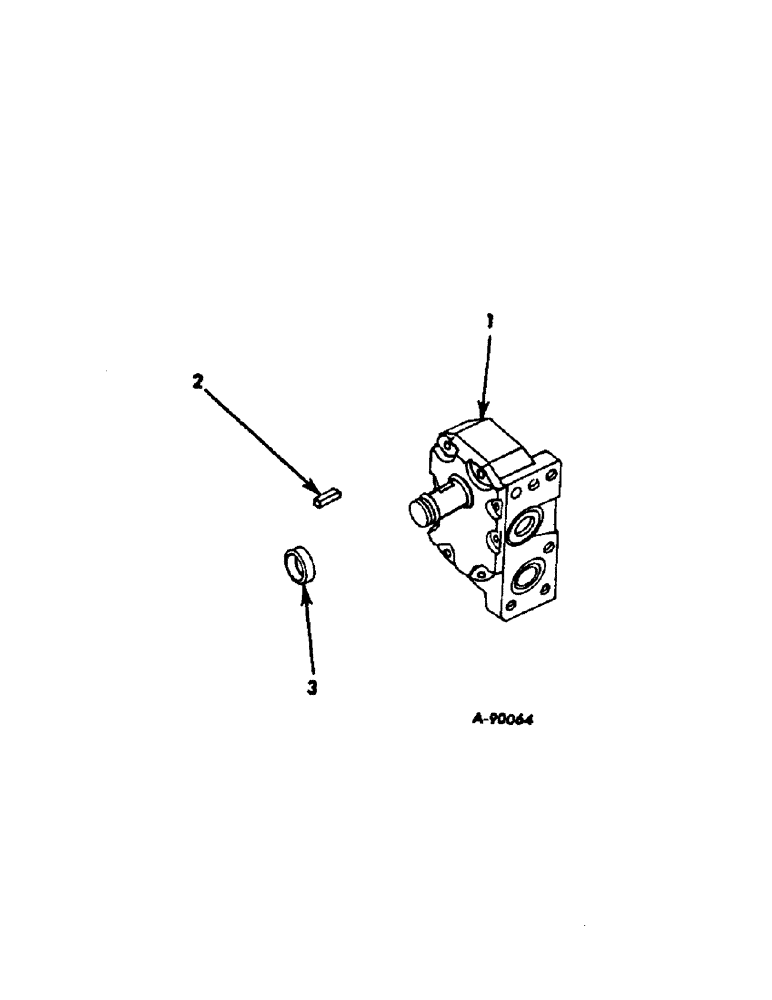

Запчасти Case IH 4186 (10-04[A]) - HYDRAULICS, HYDRAULIC PUMP, THOMPSON, 9 GPM (07) - HYDRAULICS

1

133440C92

PUMP

ASSY, hydraulic, optional with 527397R93, includes ref. nos. 2 and 3

1шт.

1

1949304C1

REMAN-HYD PUMP

Reman for new P/N 133440C92

1шт.

1

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

383539R1

KEY

pump drive shaft

1шт.

3

373157R91

OIL SEAL

SEAL, pump drive shaft

1шт.

*

133442C1

KIT

hydraulic pump o-ring and gasket service, consists of

1шт.

*

PLATE (NSS), pressure

1шт.

*

WEB (NSS), backing

2шт.

*

WEB (NSS), sealing

1шт.

*

SEAL (NSS), shaft

1шт.

*

INSTRUCTIONS (NSS)

1шт.
