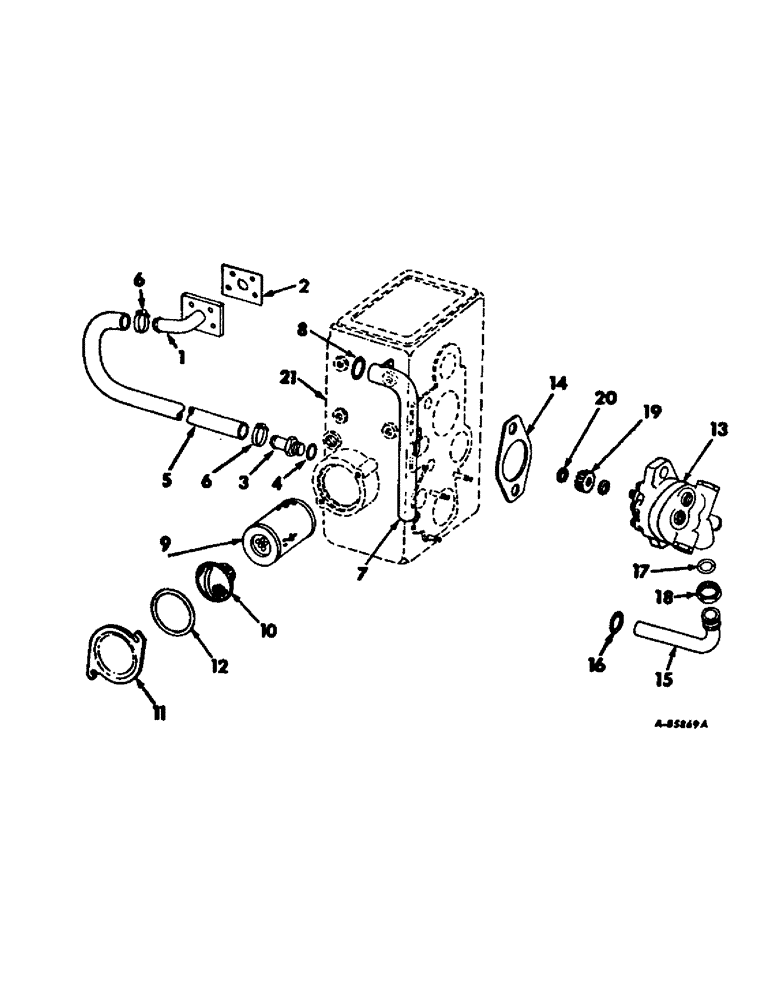

Запчасти Case IH 4186 (10-01) - HYDRAULICS, HYDRAULIC PUMP, OIL FILTER AND PIPING, IN TRANSFER CASE (07) - HYDRAULICS

1

390637R11

PIPE ASSY, flange suction

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

2

390639R1

GASKET

suction pipe flange

1шт.

3

390640R1

FITTING

ASSY, suction hose adapter, transfer case to 9 gpm pump

1шт.

4

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1-11/64 x 1-23/64 x 3/32, suction hose adapter

1шт.

5

390641R1

HOSE,1.03" ID x 20.70", SAE 100R4

Transfer Case Pump Suction 1.03" ID x 20.70", SAE 100R4

1шт.

6

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

ASSY, suction hose

1шт.

7

390606R11

PIPE ASSY, filter suction

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

8

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 x 1-7/8 x 1/8, filter suction tube seal

1шт.

9

528493R2

FILTER, ELEMENT

CARTRIDGE, hydraulic filter

1шт.

10

386121R92

VALVE

ASSY, hyd filter relief

1шт.

11

390609R1

COVER, hyd oil filter

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8 C-Z hex-hd cap

2шт.

20893R1

WASHER

11/32 x 1 x .120 C-Z

2шт.

12

390610R1

O-RING,5.109" ID x 0.139" Width

5-1/8 x 5-3/8 x 1/8, hyd oil filter cover seal

1шт.

13

404445R94

PUMP

ASSY, hydraulic, 20 gpm, rear mounted w/flow divider, For components see list of parts under details of hydraulic pump

1шт.

13

404446R92

PUMP

ASSY, hydraulic, 30 gpm, For components see list of parts under details of hydraulic pump

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

14

390618R1

GASKET

rear mounted pump

1шт.

15

390620R11

PIPE ASSY, pump suction

1шт.

16

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, pump suction pipe seal

1шт.

17

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-15/32 x 1-11/16 x 7/64

1шт.

18

218-1257

BHD LOCK NUT,Blkhd, 1 5/8"-12

NUT, 1-5/8-12 adj str thd fitting lock (replaces 9410065)

1шт.

19

390442R1

GEAR WHEEL

GEAR, pump driven, 23T

1шт.

20

390622R1

RING, pump gear snap

2шт.

21

CASE, transfer, Refer to transfer case and covers listing group 7

1шт.
