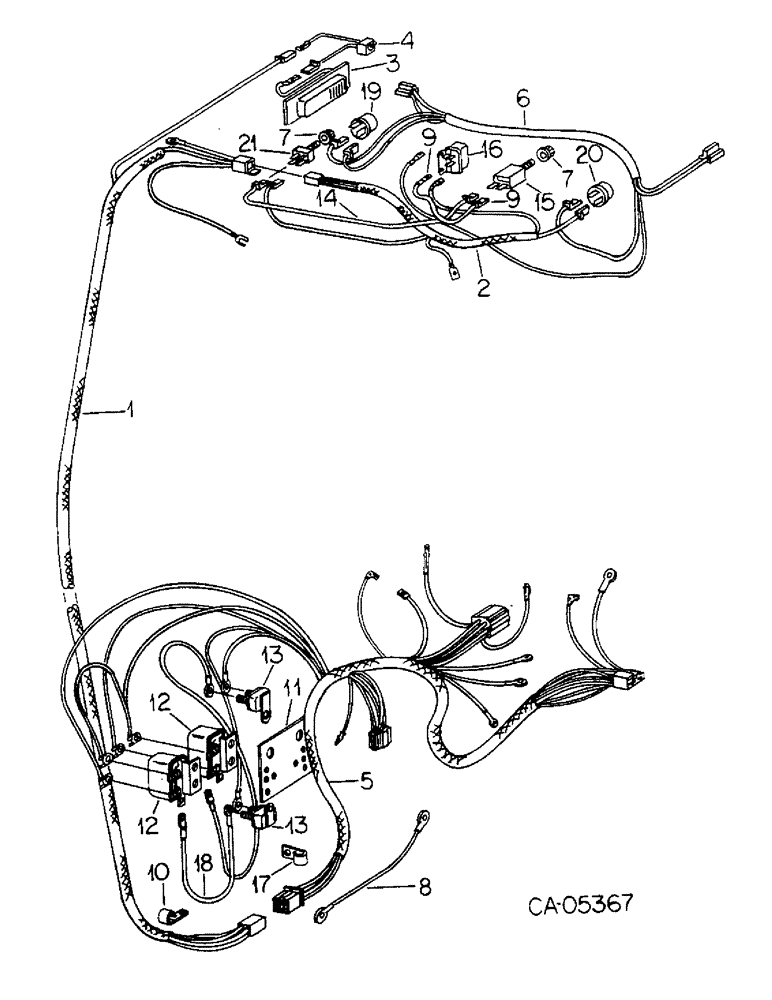

Запчасти Case IH 4186 (08-26) - ELECTRICAL, TRACTOR CAB WIRING AND CONNECTIONS, 4186 TRACTORS (06) - ELECTRICAL

1

66391C1

HARNESS ASSY, cab cable, cabs with heating only

1шт.

1

66392C1

HARNESS ASSY, cab cable, cabs with heating and a/c

1шт.

2

539032R1

HARNESS ASSY, blower drive, cabs with heating only

1шт.

2

66384C1

HARNESS ASSY, blower drive, cabs with heating and a/c

1шт.

3

533526R91

LIGHT ASSY, cab dome, Only serviceable items are lamp, 142456, lens, 533939R1 and two screw, 155178

1шт.

23956R1

SCREW, no. 8-18 x 3/8 C-Z slt-f-hd tap

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 znd int-ext tooth lock

2шт.

4

539023R1

SWITCH

ASSY, dome light

1шт.

5

117952C1

HARNESS

ASSY, light switch and cab power cable

1шт.

6

66393C1

HARNESS ASSY, condensor, cabs with heating and a/c

1шт.

7

539024R1

KNOB

switch

2шт.

8

65052C1

CABLE ASSY, ground jumper, Serial Range: tractor-cab

1шт.

9

66387C1

CABLE, relay

1шт.

10

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP, cable

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 znd int-ext tooth lock

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

65016C1

BRACKET, cab relay

1шт.

PO11230

SPACER,3/8" Pipe x .406"

.493 x .675 x .406

2шт.

178556

WASHER,Ext-Int Tooth, 7/16"

3/8 znd int-ext tooth lock

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

12

1115841

RELAY

ASSY, electric load, cabs w/heater

1шт.

12

1115841

RELAY

ASSY, electric load, cabs with heater and air conditioner

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap, 2 per relay

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 znd int-ext tooth lock, 2 per relay

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2 per relay 1/4"-20, G5

1шт.

13

403069R1

CIRCUIT-BREAKER,30A

BREAKER, circuit, 30 ampere, cabs w/heater

1шт.

13

403069R1

CIRCUIT-BREAKER,30A

BREAKER, circuit, 30 ampere, cabs with heater and air conditioner

2шт.

120614

NUT,Hex, #10 - 32

NUT, , 2 per breaker #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, , 2 per breaker #10

1шт.

14

70832C1

CABLE

thermostat switch, cabs with heating and a/c

1шт.

15

70500C2

SWITCH

thermostat service, cabs with heating and a/c

1шт.

16

1116972

RELAY

ASSY, replaces 275240C91, cabs with heating and a/c

1шт.

16

1116972GV

RELAY

ASSY, replaces 275240C91, cabs with heating and a/c

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 cr-rec-pan-hd mach

2шт.

17

384557R1

CLIP

light switch and cab panel cable harness

1шт.

18

403070R2

CABLE ASSY, relay to circuit breaker, cabs w/heater

1шт.

18

403070R2

CABLE ASSY, relay to circuit breaker, cabs with heater and air conditioner

2шт.

19

539061R2

SWITCH

ASSY, low pressure, cabs with heating and a/c

1шт.

20

539069R2

SWITCH

ASSY, high pressure, cabs with heating and a/c

1шт.

21

539052R2

SWITCH

blower

1шт.
