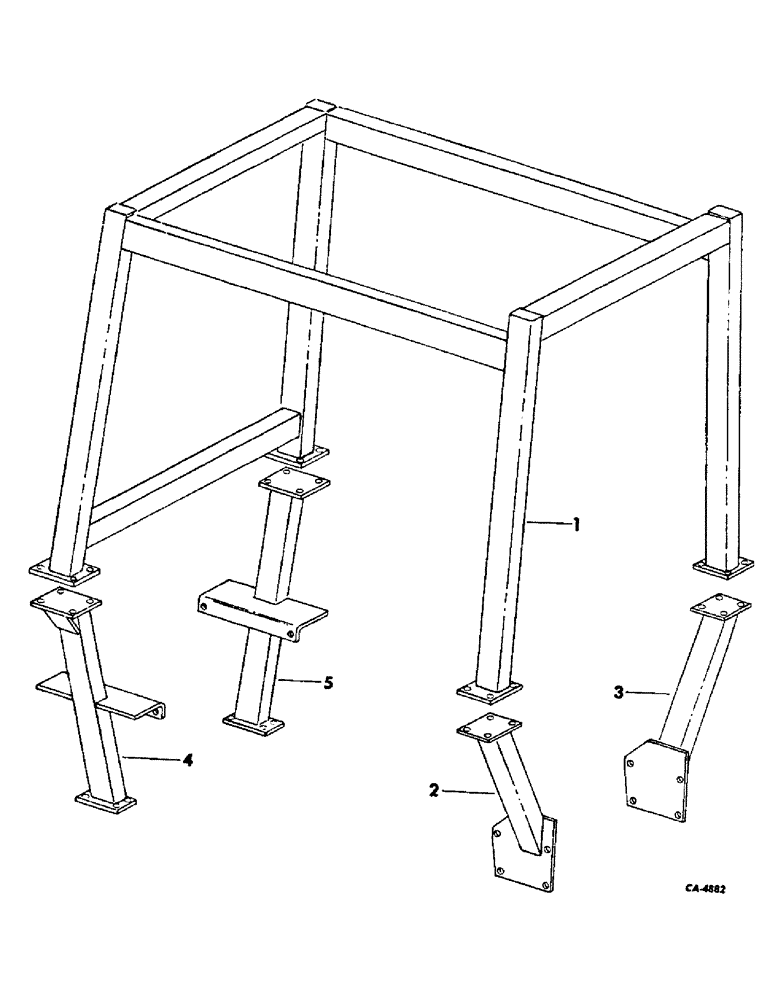

Запчасти Case IH 4186 (13-21) - SUPERSTRUCTURE, FOUR POST PROTECTIVE FRAME (05) - SUPERSTRUCTURE

1

FRAME ASSY, protective, Service only as part of the protective frame att

1шт.

2

SUPPORT ASSY, front LH, Service only as part of the protective frame att

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap type 8

4шт.

21434R1

NUT,5/8"-11, G8

5/8-11 hex type 8

4шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

21/32 x 1-1/4 x 3/16

8шт.

21610R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

SCREW, 3/4-10 x 2-1/2 hex-hd cap type 8

4шт.

22049R1

NUT,3/4"-10, G8

3/4-10 hex type 8

4шт.

62177V

WASHER

25/32 x 1-1/2 x 3/16

8шт.

3

SUPPORT ASSY, front RH, Service only as part of the protective frame att

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 znd hex-hd cap type 8

4шт.

21434R1

NUT,5/8"-11, G8

5/8-11 hex type 8

4шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

21/32 x 1-1/4 x 3/16

8шт.

21610R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

SCREW, 3/4-10 x 2-1/2 hex-hd cap type 8

4шт.

22049R1

NUT,3/4"-10, G8

3/4-10 hex type 8

4шт.

62177V

WASHER

25/32 x 1-1/2 x 3/16

8шт.

4

SUPPORT ASSY, rear LH, Service only as part of the protective frame att

1шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

SCREW, 3/4-10 x 2-1/4 hex-hd cap type 8

1шт.

62177V

WASHER

25/32 x 1-1/2 x 3/16

1шт.

21525R1

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 8

SCREW, 3/4-10 x 4-3/4 hex-hd cap type 8

1шт.

482499R1

SPACER, lower link

1шт.

22049R1

NUT,3/4"-10, G8

3/4-10 hex type 8

2шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap type 8

4шт.

21434R1

NUT,5/8"-11, G8

5/8-11 hex type 8

4шт.

524433R1

WASHER, 21/32 x 1-1/4 x 3/16

8шт.

20923R1

SCREW, 7/8-14 x 8 znd hex-hd cap

2шт.

218200

NUT,7/8"-14, G5

7/8-14 hex

2шт.

5

SUPPORT ASSY, rear RH, Service only as part of the protective frame att

1шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

SCREW, 3/4-10 x 2-1/4 hex-hd cap type 8

1шт.

62177V

WASHER

25/32 x 1-1/2 x 3/16

1шт.

21525R1

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 8

SCREW, 3/4-10 x 4-3/4 hex-hd cap type 8

1шт.

482499R1

SPACER, lower link

1шт.

22049R1

NUT,3/4"-10, G8

3/4-10 hex type 8

2шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/9-11 x 2-1/4 hex-hd cap type 8

4шт.

21434R1

NUT,5/8"-11, G8

5/8-11 hex type 8

4шт.

524433R1

WASHER, 21/32 x 1-1/4 x 3/16

8шт.

20923R1

SCREW, 7/8-14 x 8 znd hex-hd cap

2шт.

218200

NUT,7/8"-14, G5

7/8-14 hex

2шт.
