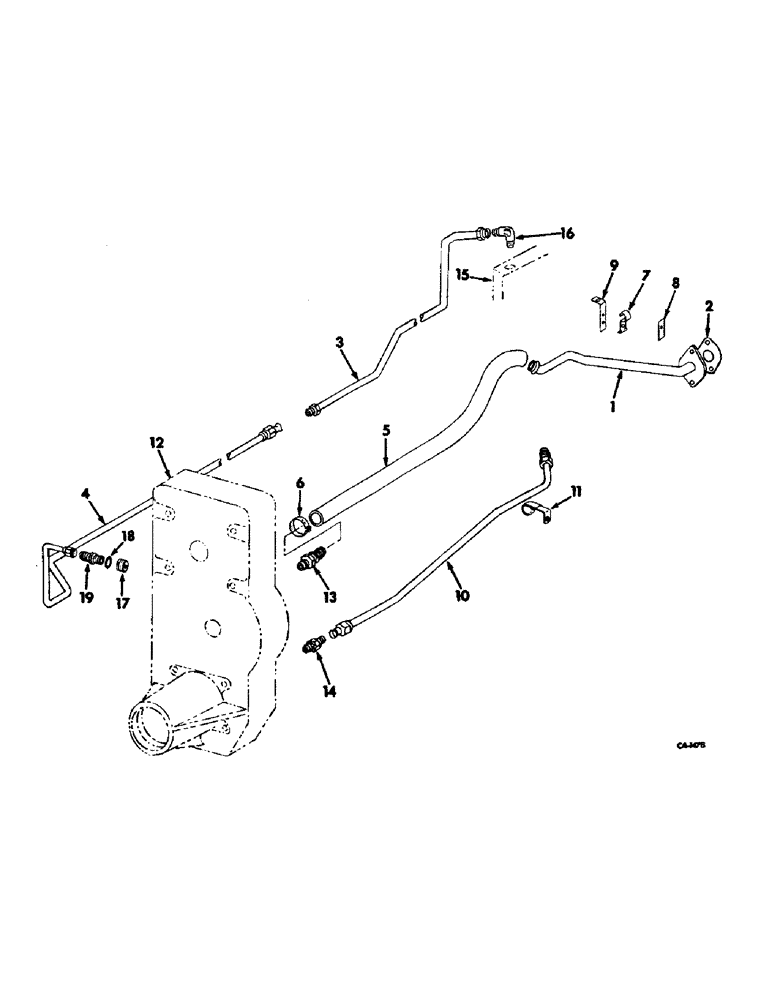

Запчасти Case IH 4186 (07-36) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF TUBING AND CONNECTIONS (04) - Drive Train

1

403968R1

PIPE ASSY, return

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

390340R1

GASKET

return pipe

1шт.

3

403971R1

PIPE ASSY, power supply front

1шт.

4

403972R1

PIPE ASSY, power supply rear

1шт.

5

HOSE, return, use 28 in. of 1 in. ID hose from 50 ft. roll, 490960R1

1шт.

6

279027R91

CLAMP,#28, 1.31/2.25 Type F Worm

return hose

2шт.

7

403973R1

CLAMP, tube support

2шт.

8

403974R1

BAR, tube clamp

1шт.

9

403975R1

BRACKET, tube support

1шт.

180021

SPRING

SCREW, 1/4-20 x 7/8 C-Z hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5

SCREW, 5/8-11 x 1-5/8 C-Z hex-hd cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

223815

BOLT,Hex, 5/8" - 18 x 3", Gr 8

SCREW, 5/8-18 x 3 C-Z hex-hd cap type 4

1шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

1шт.

10

403976R1

PIPE ASSY, lub

1шт.

381753R1

FITTING, lub pipe

1шт.

11

527434R1

CLIP

tube support

1шт.

12

HOUSING ASSY, drop, Refer to independent PTO listing, this group

1шт.

13

864445R1

NIPPLE, LUBE

FITTING, return hose

1шт.

14

9402710

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 7/8-14 37 deg hyd flared tube

1шт.

15

VALVE ASSY, multiple control, Refer to power supply and multiple control valve listing, group 10

1шт.

16

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg

1шт.

17

403967R1

VENT

PLATE, orifice

1шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

19

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18 C-Z 37 deg hyd flared tube to str thd o-ring boss

1шт.
