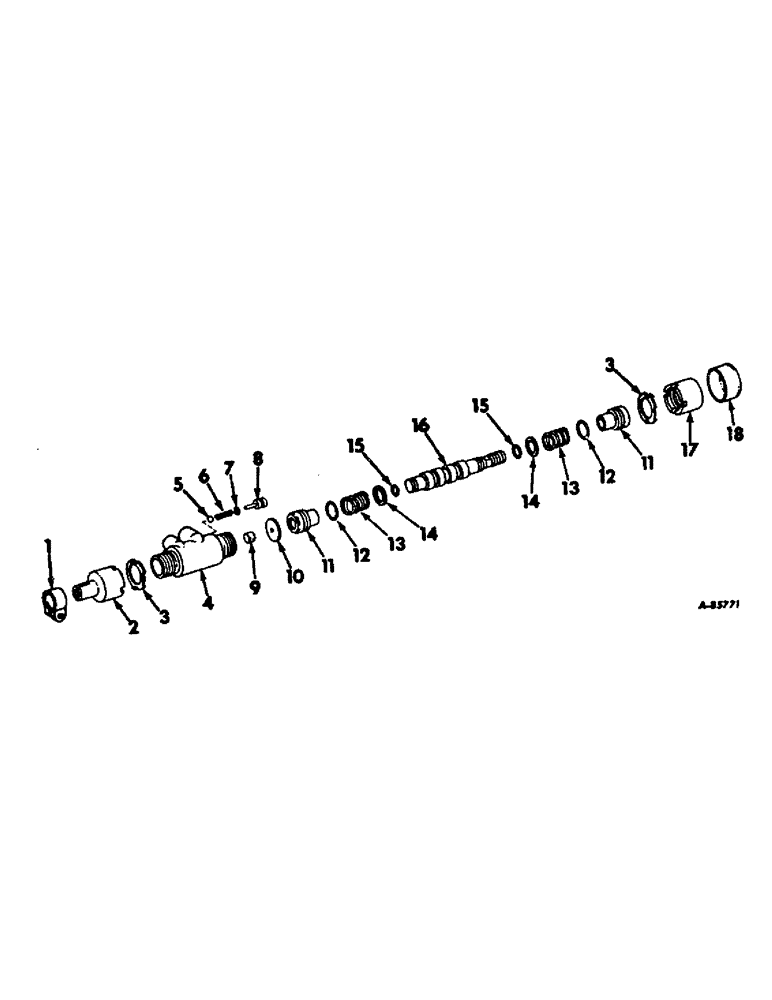

Запчасти Case IH 4186 (07-30) - DRIVE TRAIN, DRAG LINK VALVE (04) - Drive Train

390687R93

LOCK VALVE

VALVE ASSY, drag link

1шт.

1

46508H

COLLAR CLAMP

CLAMP

1шт.

120369

NUT,3/8"-24, G5

1шт.

181646

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

SCREW, 3/8-24 x 1-3/4 hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

393260R1

REDUCER

end cover

1шт.

3

133243R1

OIL SEAL

RING, end cover lock

2шт.

4

BODY, not serviced separately, Order valve assy, 390687R93

1шт.

5

16008R1

BALL,1/4" Dia, Steel

1/4 dia chr-stl gr 2

1шт.

6

133238R1

VALVE SPRING

SPRING, relief valve

1шт.

7

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16 plug

1шт.

8

216429R91

PLUG

ASSY

1шт.

9

393262R1

PLUG

felt

1шт.

10

393205R1

SHIM

1шт.

11

395333R1

GLAND

2шт.

12

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8 gland

2шт.

13

894249R1

SPRING

2шт.

14

66274C1

WASHER, valve spool

2шт.

15

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32, valve spool

2шт.

16

SPOOL, not serviced separately, Order valve assy, 390687R93

1шт.

17

393261R1

COVER, end

1шт.

18

562300R2

SEAL

dust

1шт.

393365R91

KIT

PACKAGE, drag link valve o-ring service, Consists of

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

350818R1

O-RING,0.984" ID x 0.139" Width

2шт.

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1шт.

393262R1

PLUG

1шт.

133243R1

OIL SEAL

RING

2шт.
