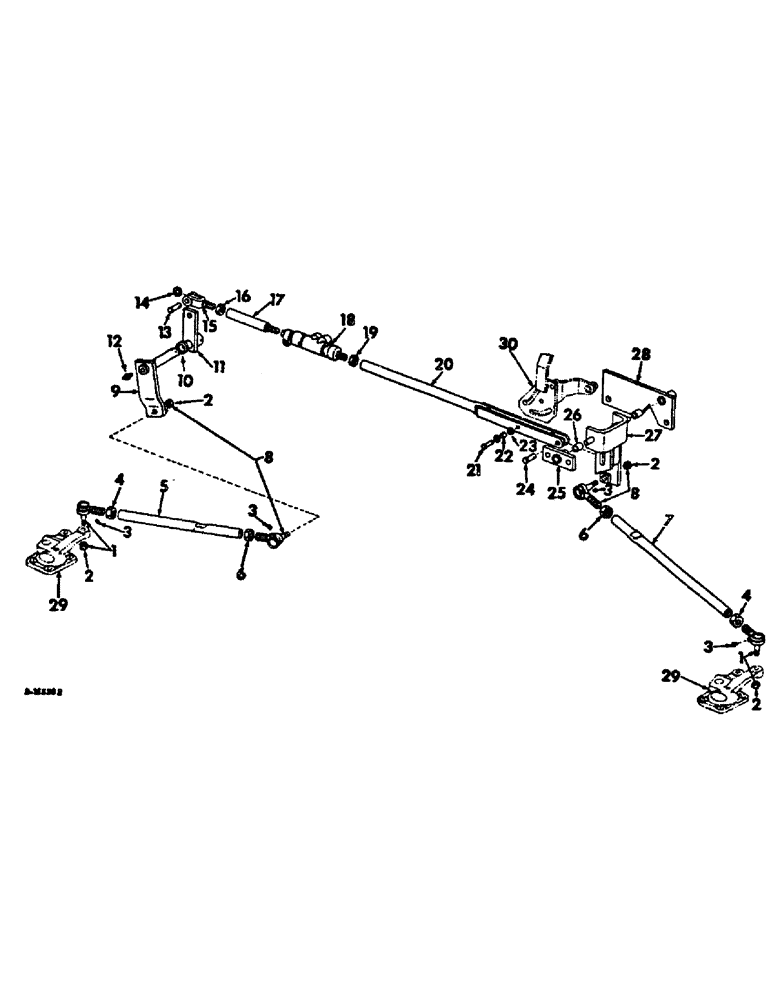

Запчасти Case IH 4186 (07-26) - DRIVE TRAIN, REAR STEERING CONTROL LINKAGE (04) - Drive Train

1

384005R92

JOINT

END, drag link

2шт.

387280R2

COVER

dust, Use only with Columbus auto parts co drag link ends

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

2шт.

2

358901R1

SLOTTED NUT

tie rod end

4шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8-27 str lub, Use only with Columbus auto parts co drag link ends

4шт.

4

374061R1

JAM NUT

drag link jam

2шт.

5

390671R1

TURNBUCKLE

PIPE, rear drag link

1шт.

6

383932R1

NUT, drag link jam

2шт.

7

390670R1

PIPE, front drag link

1шт.

8

384006R92

END

drag link

2шт.

387280R2

COVER

dust, Use only with Columbus auto parts co drag link ends

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

2шт.

9

398965R1

ARM

ASSY, rear drag link

1шт.

10

Q295

WASHER, 1-9/32 x 2-1/4 x 22 ga

1шт.

11

398968R1

ARM

ASSY, center link

1шт.

616387R1

PIN,3/8" x 2", Coiled

2шт.

12

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 ptf 90 deg angle lub

1шт.

13

292676R1

PIN

center rod rear

1шт.

108637

COTTER PIN,5/32" x 1 1/8"

Pin, Split (Cotter), 5/32" x 1 1/8"

1шт.

NLS

NO LONGER SERVICED

13/16 x 1-1/2 x .134

1шт.

14

372465R1

WASHER

SPACER, center rod rear

1шт.

15

390684R1

CLEVIS COUPLING

ROD, center clevis

1шт.

16

390685R1

NUT

center rod jam LH thread

1шт.

17

393716R1

EXTENSION

ROD, end

1шт.

18

390687R93

LOCK VALVE

VALVE ASSY, drag link, For components see list of parts under details of drag link valve listing, this group

1шт.

19

390686R1

JAM NUT

center rod jam RH thread

1шт.

33557V

CLEVIS PIN,1/2" x 1.594"

PIN, 1/2 x 1-19/32 rod end

1шт.

20

390682R21

PIPE ASSY, center rod

1шт.

21

33557V

CLEVIS PIN,1/2" x 1.594"

PIN, 1/2 x 1-19/32 rod end

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

22

380115R2

ROLLER

cam

1шт.

23

11002VA

WASHER

17/32 x 7/8 x 16 ga

2шт.

24

21084R1

CLEVIS PIN

PIN, center rod front

1шт.

108637

COTTER PIN,5/32" x 1 1/8"

Pin, Split (Cotter), 5/32" x 1 1/8"

1шт.

103346

WASHER

13/16 x 1-1/2 x .134

1шт.

551658R1

WASHER

25/32 x 1-1/4 x 22 ga

2шт.

25

390677R11

BAR ASSY, center arm retaining plate

1шт.

102637

NUT,1/2"-13, G5

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

26

390679R1

BUSHING

center arm pivot

2шт.

27

390672R21

ARM ASSY, center pivot

1шт.

28

390680R11

PLATE ASSY, center arm support

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd cap

2шт.

29

ARM, steering, Refer to front axle and connections listing, this group

1шт.

30

CAM ASSY, steering control, Refer to front wheel drive and steering controls listing, this group

1шт.
